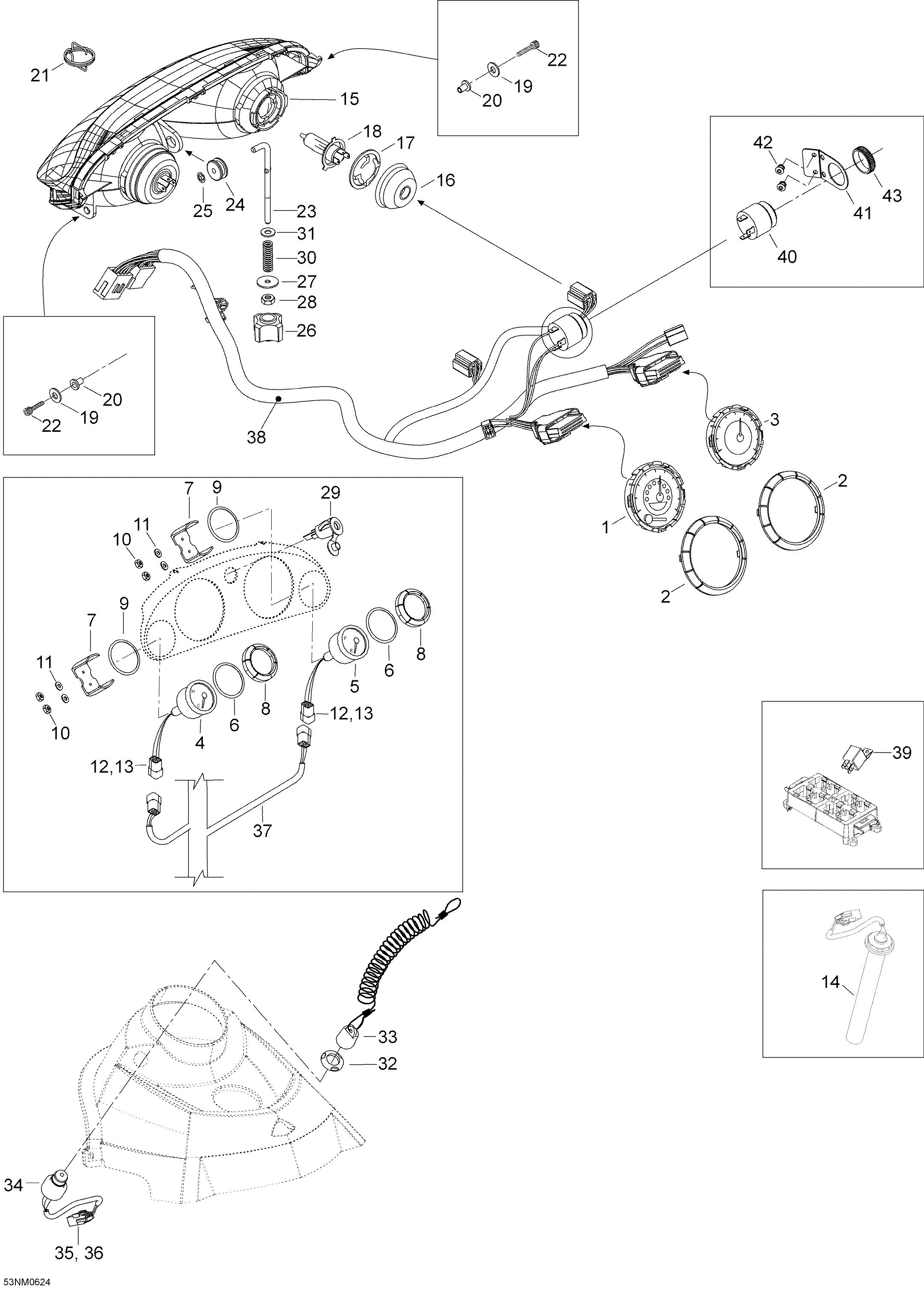

06- Electrical Accessories для BRP Lynx Expedition TUV V-1300 - 2006
-
№АртикулНазвание
-
1515176302 SpeedometerSpeedometer
-
2515175651 RingRing
-
3515176303 TachometerTachometer
-
4515175601 Temperature gaugeTemperature gauge
-
5515175529 Fuel gaugeFuel gauge
-
6414807200 O-RingO-Ring
-
7415099800 Case holderCase holder
-
8515175711 RingRing
-
9517258600 WasherWasher
-
1033008 Elastic stop nut M4Elastic stop nut M4
-
1120037 Washer A4,3Washer A4,3
-
1242269 Male connector housingMale connector housing
-
13605642628 Male connectorMale connector
-
14605253587 Fuel sensorFuel sensor
-
15515175909 Halogen headlamp. Includes 15 to 18Halogen headlamp. Includes 15 to 18
-
16410607100 CoverCover
-
17410608300 Bulp holderBulp holder
-
18410504401 Halogen bulpHalogen bulp
-
1920008 Washer A5,3Washer A5,3
-
20250100018 Well-nutWell-nut
-
215447238 SpringSpring
-
2240235 Screw M5 x 35Screw M5 x 35
-
23605450023 Adjusting rodAdjusting rod
-
24415100800 GrommetGrommet
-
25732610072 Nut PushNut Push
-
26515175548 KnobKnob
-
2720038 Washer 6mmWasher 6mm
-
2833010 Elastic stop nut M6Elastic stop nut M6
-
2942026 Flush mounted socketFlush mounted socket
-
30415100600 SpringSpring
-
3120003 Washer A6,4Washer A6,4
-
32278000508 NutNut
-
33515166900 DESS capDESS cap
-
34515175797 DESS switch. Includes 34 to 36DESS switch. Includes 34 to 36
-
35515175232 Male terminalMale terminal
-
36515175494 Male terminal housingMale terminal housing
-
37605153859 Harness ass'yHarness ass'y
-
38605153275 Harness ass'yHarness ass'y
-
39410113604 RelayRelay
-
40515176035 HornHorn
-
415447941 BracketBracket
-
4236005 RivetRivet
-
43414805101 RingRing
