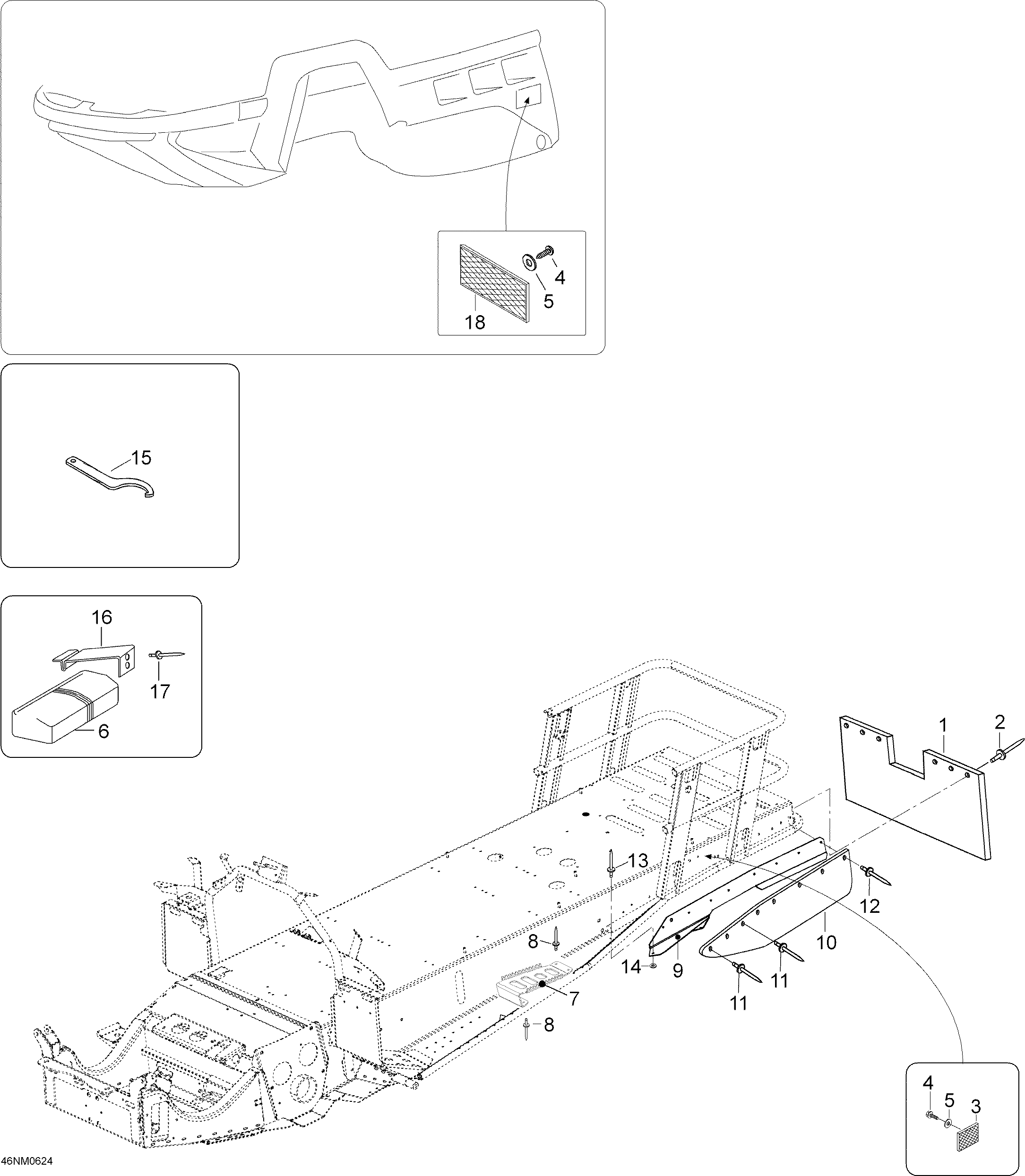

09- Utilities для BRP Lynx Expedition TUV V-1300 - 2006
-
№АртикулНазвание
-
1538629 Snow guardSnow guard
-
236036 RivetRivet
-
3414510100 Reflector (Red)Reflector (Red)
-
440070 Self tapping screw M5 x 10Self tapping screw M5 x 10
-
520018 Washer A5,3Washer A5,3
-
6605352219 Tool ass'yTool ass'y
-
7605354068 FootrestFootrest
-
836489 RivetRivet
-
9605251249 R.H. BracketR.H. Bracket
-
9605251248 L.H. BracketL.H. Bracket
-
105142828 Side snow quardSide snow quard
-
1136097 RivetRivet
-
1236891 RivetRivet
-
1336005 RivetRivet
-
1420008 Washer A5,3Washer A5,3
-
15529035582 Wrench adjusterWrench adjuster
-
165346728 Spring plateSpring plate
-
1736108 RivetRivet
-
18414510200 Reflector (Amber)Reflector (Amber)
