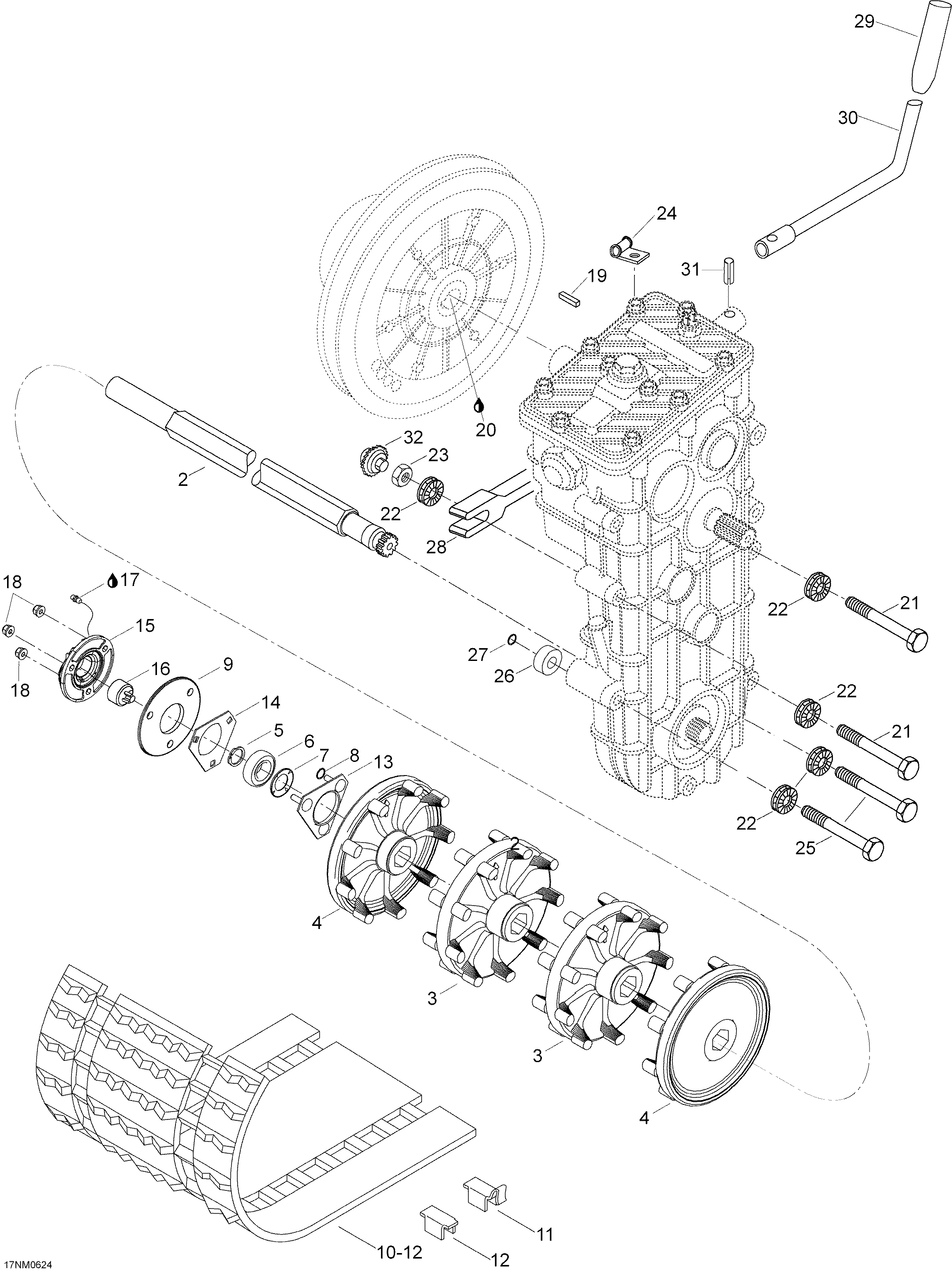

05- Drive Axle And Track для BRP Lynx Expedition TUV V-1300 - 2006
-
№АртикулНазвание
-
1605250539 Drive axle ass'y. Includes 1 to 3Drive axle ass'y. Includes 1 to 3
-
2605249455 Drive axleDrive axle
-
3414931800 SprocketSprocket
-
4415067400 SprocketSprocket
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 Ball bearing protectorBall bearing protector
-
8414484400 O-ringO-ring
-
95446641 RingRing
-
1013070 Track ass'y. Includes 10 to 13Track ass'y. Includes 10 to 13
-
115318323 Cleat guideCleat guide
-
125318322 Slide guideSlide guide
-
13504151860 Bearing housingBearing housing
-
14501025000 FlangeFlange
-
15504152173 FlangeFlange
-
16504152040 Magnetic, adaptorMagnetic, adaptor
-
17413711500 Synthetic greaseSynthetic grease
-
1833201 Elastic flanged nut M8Elastic flanged nut M8
-
19418763 KeyKey
-
20293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
2140299 Hex. screw M8 x 100Hex. screw M8 x 100
-
2220072 Lock washer 8mmLock washer 8mm
-
2333011 Elastic stop nut M8Elastic stop nut M8
-
24605453927 ClampClamp
-
2540291 Hex. screw M8 x 110Hex. screw M8 x 110
-
26605450155 SleeveSleeve
-
27506151140 O-ringO-ring
-
28605351366 Support shaftSupport shaft
-
2928247 ButtonButton
-
30605350153 Shaft handleShaft handle
-
3141007 Spring keySpring key
-
32605454017 Ractchel wheelRactchel wheel
