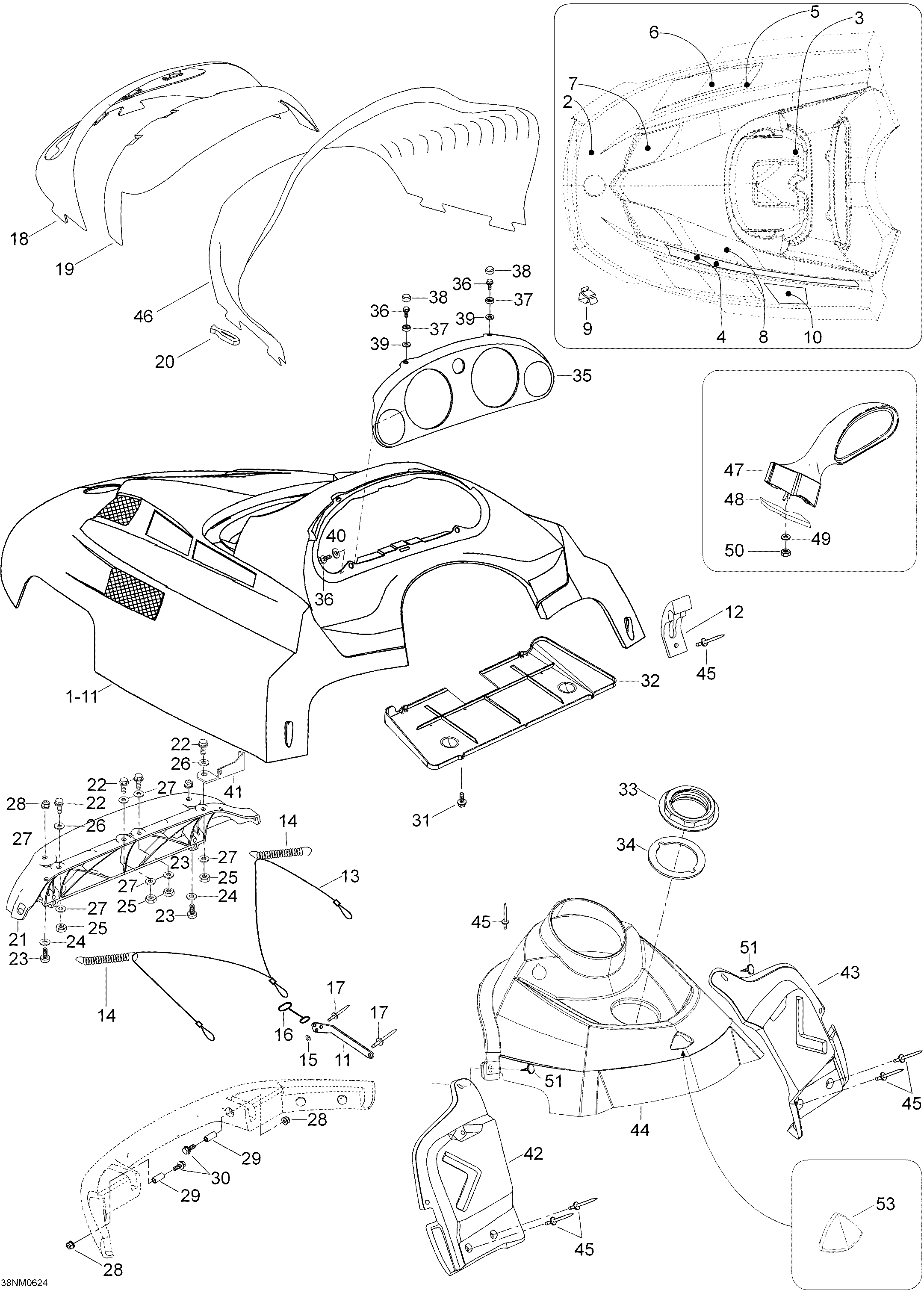

09- Hood And Console для BRP Lynx Expedition TUV V-1300 - 2006
-
№АртикулНазвание
-
1…11605151473 Hood, pre ass'y Seashore. SeashoreHood, pre ass'y Seashore. Seashore
-
1…11605151654 Hood, pre ass'y Black. BlackHood, pre ass'y Black. Black
-
2605350919 Heat protectorHeat protector
-
3605350920 Heat protectorHeat protector
-
4605350921 Heat protectorHeat protector
-
5605350922 Heat protectorHeat protector
-
6605350923 L.H. GrillL.H. Grill
-
6605350924 R.H. GrillR.H. Grill
-
7605350925 L.H. Grill, middleL.H. Grill, middle
-
7605350926 R.H. Grill, middleR.H. Grill, middle
-
8605350927 R.H. Grill, rearR.H. Grill, rear
-
9414227300 ClipClip
-
10605350929 Heat protectorHeat protector
-
11605352546 Heat protectorHeat protector
-
12517302152 LatchLatch
-
13605351372 Retainer cableRetainer cable
-
145442675 SpringSpring
-
1520001 Washer A4,3Washer A4,3
-
165442870 BracketBracket
-
1736002 RivetRivet
-
18517302158 Moulding Head LampMoulding Head Lamp
-
19517302003 Windshield supportWindshield support
-
20570023800 LatchLatch
-
21517302631 Hinge halfHinge half
-
2240030 Hex. screw M6 x 20Hex. screw M6 x 20
-
2340381 Socket head screw M6 x 20Socket head screw M6 x 20
-
2420117 WasherWasher
-
2533010 Elastic stop nut M6Elastic stop nut M6
-
2620003 Washer A6,4Washer A6,4
-
2720009 Washer A6,4Washer A6,4
-
2833200 Elastic flanged nut M6Elastic flanged nut M6
-
29517302179 BushingBushing
-
3040003 Hex. screw M6 x 35Hex. screw M6 x 35
-
31243141640 Screw M4.8 x 16Screw M4.8 x 16
-
32605151831 Air intake plateAir intake plate
-
33517302043 NutNut
-
345447116 GasketGasket
-
35605353602 Indicator supportIndicator support
-
36241140060 Self tapping screw K40 x 10Self tapping screw K40 x 10
-
37414436800 RingRing
-
38414436900 CapCap
-
39234042600 WasherWasher
-
40517124300 WasherWasher
-
41605351463 L.H. SupportL.H. Support
-
41605351464 R.H. SupportR.H. Support
-
42605251384 L.H. ConsoleL.H. Console
-
43605251385 R.H. ConsoleR.H. Console
-
44605251387 Console, middleConsole, middle
-
4536037 RivetRivet
-
46605152073 WindshieldWindshield
-
47605250583 R.H. MirrorR.H. Mirror
-
47605250582 L.H. MirrorL.H. Mirror
-
48605350577 R.H. AdaptorR.H. Adaptor
-
48605350576 L.H. AdaptorL.H. Adaptor
-
4920037 Washer 4mmWasher 4mm
-
5033008 Elastic stop nut M4Elastic stop nut M4
-
51414644300 DartDart
-
52605452657 BracketBracket
-
53605453896 PluggPlugg
