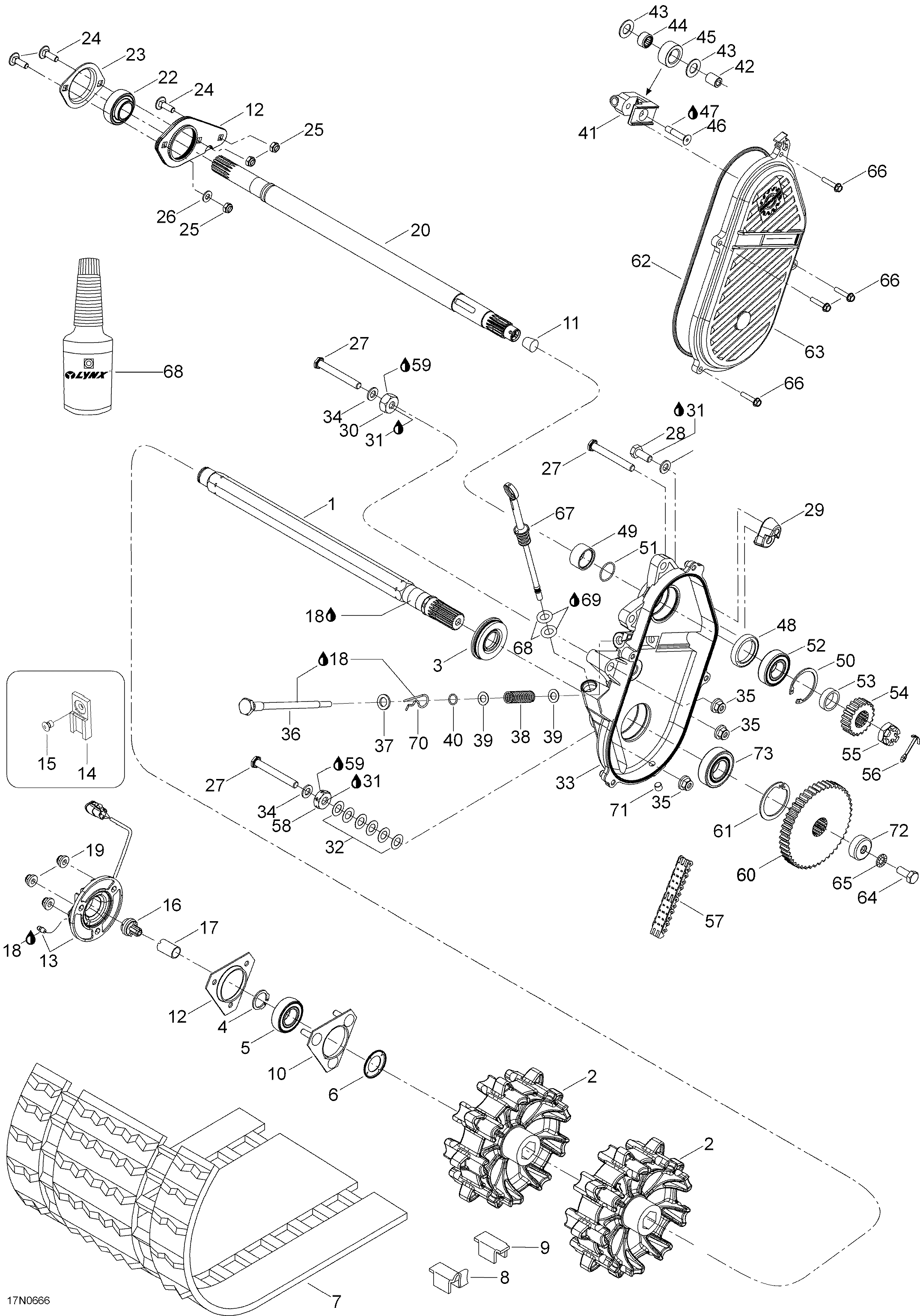

05- Drive System для BRP Lynx Rave RC 453 - 2006
-
№АртикулНазвание
-
-605352005 Drive axle ass'y. Includes 1 to 2Drive axle ass'y. Includes 1 to 2
-
1504151792 Drive axleDrive axle
-
2504152503 Sprocket ( 9 teeth)Sprocket ( 9 teeth)
-
3504151918 Oil sealOil seal
-
431001 CirclipCirclip
-
5504152009 Ball bearingBall bearing
-
6501017400 Ball bearing protectorBall bearing protector
-
713075 Track ass'y (38). Includes 7 to 9Track ass'y (38). Includes 7 to 9
-
85318329 Guide clipGuide clip
-
95318330 CleatCleat
-
10504151860 Ball bearing housingBall bearing housing
-
11414784800 KorkKork
-
12501025000 FlangeFlange
-
13504152345 Speed sensor flangeSpeed sensor flange
-
14515175917 ClipClip
-
1536005 RivetRivet
-
16504152040 Magnetic adaptorMagnetic adaptor
-
17572097500 AdaptorAdaptor
-
18219700417 Synthetic grease, 400gSynthetic grease, 400g
-
1933201 Elastic flanged nut M8Elastic flanged nut M8
-
20504152018 Counter shaftCounter shaft
-
21504151968 SpacerSpacer
-
22504152535 Ball bearingBall bearing
-
23501026900 FlangeFlange
-
2440312 Carriage bolt M8 x 22Carriage bolt M8 x 22
-
2533011 Elastic stop nut M8Elastic stop nut M8
-
2620004 Washer A8,4Washer A8,4
-
27250000151 Hex. screw M10 x 80Hex. screw M10 x 80
-
2840040 Hex. screw M10 x 25Hex. screw M10 x 25
-
29504152252 SleeveSleeve
-
30504083800 SpacerSpacer
-
31293800060 Liima Loctite 243 10mlLiima Loctite 243 10ml
-
32504073700 ShimShim
-
33504152482 ChaincaseChaincase
-
34605620000 Washer 10mmWasher 10mm
-
3533074 Elastic flanged nut M10Elastic flanged nut M10
-
36504151946 Adjusting screwAdjusting screw
-
37503189148 Washer, hardenedWasher, hardened
-
38504151945 SpringSpring
-
39503125900 Washer, hardenedWasher, hardened
-
40504151954 O-ringO-ring
-
41504152653 Chain tensionerChain tensioner
-
42504080200 SleeveSleeve
-
43504080300 WasherWasher
-
44405403000 Needle bearingNeedle bearing
-
45414531300 RollerRoller
-
46732601144 ScrewScrew
-
47293800005 Loctite 271,10mlLoctite 271,10ml
-
48415049300 Oil sealOil seal
-
49507031500 SleeveSleeve
-
50371901700 CirclipCirclip
-
51414876700 O-ringO-ring
-
52504152006 Ball bearingBall bearing
-
53504152398 SleeveSleeve
-
54504151500 Sprocket (21)Sprocket (21)
-
55250000012 Hex. castellated nut M20Hex. castellated nut M20
-
5641003 Cotter pinCotter pin
-
57504151857 Drive chain (13/74 links)Drive chain (13/74 links)
-
58504152237 SleeveSleeve
-
59293800070 Loctite 767, antiseize lubricant, 8ozLoctite 767, antiseize lubricant, 8oz
-
60504152614 Sprocket (45 teeth)Sprocket (45 teeth)
-
61415064300 CirclipCirclip
-
62415046400 O-ringO-ring
-
63504152471 CoverCover
-
6440040 Hex. screw M10 x 25Hex. screw M10 x 25
-
6520068 Lock washer D10Lock washer D10
-
6640340 Hex. flanged screw M6 x 30Hex. flanged screw M6 x 30
-
67504151703 Filler capFiller cap
-
68414969400 O-ringO-ring
-
69413803300 Synthetic chaincase oil (12 x 355 ml)Synthetic chaincase oil (12 x 355 ml)
-
70414575600 Hair pinHair pin
-
71504151921 Plug 1/8-27Plug 1/8-27
-
72504152480 SleeveSleeve
-
73504152005 Ball bearingBall bearing
