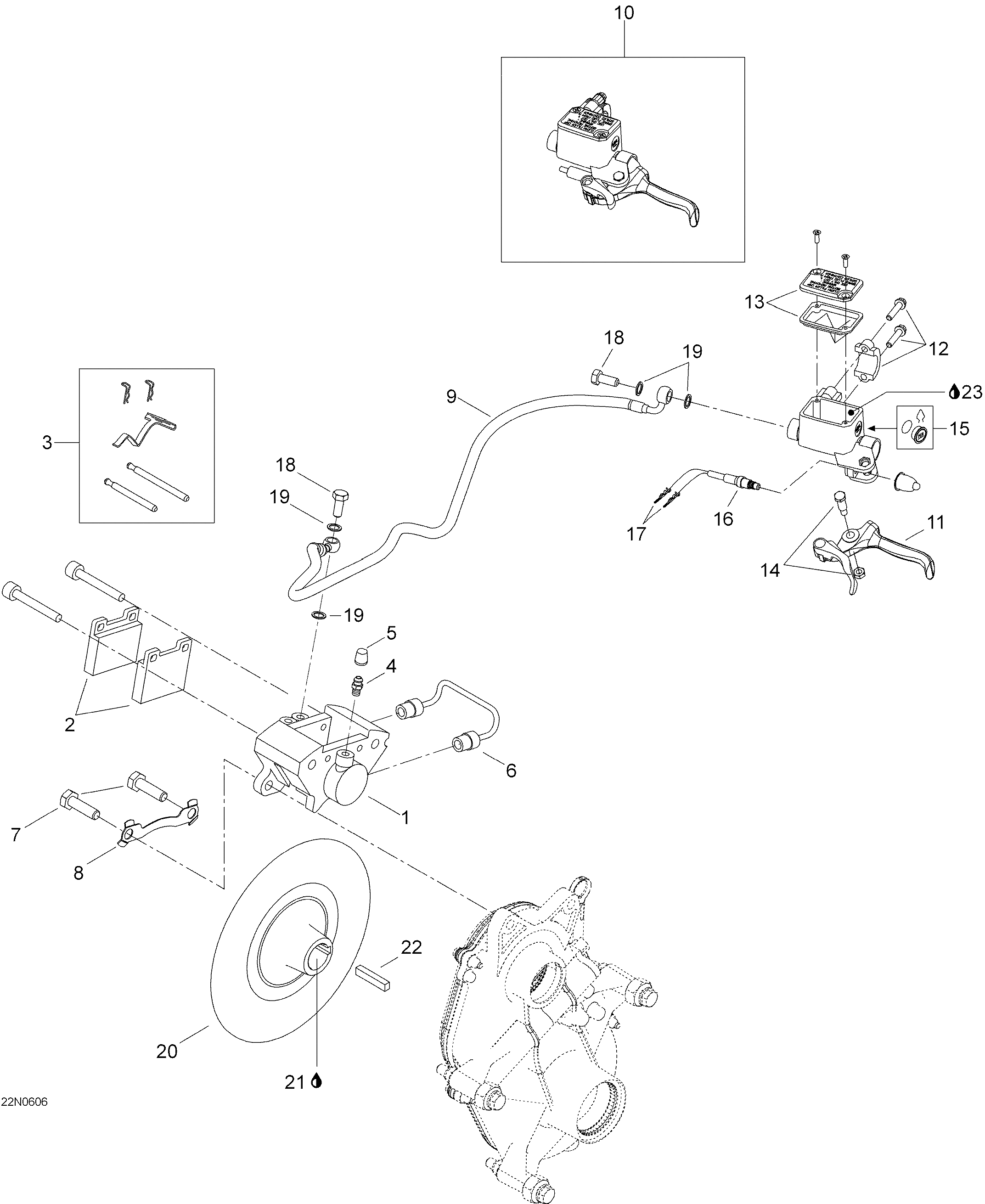

06- Hydraulic Brake для BRP Lynx Rave RC 453 - 2006
-
№АртикулНазвание
-
1507032409 Master caliber. Includes 1 to 6Master caliber. Includes 1 to 6
-
2415084600 Brake lining kitBrake lining kit
-
3415128865 Kit (pins,retainers,spring)Kit (pins,retainers,spring)
-
4414989800 Screw bleederScrew bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
740049 Hex. screw M10 x35Hex. screw M10 x35
-
8507032316 Locking tabLocking tab
-
9507032291 HoseHose
-
10507032408 Master cylinder ass'y. Includes 10 to 16Master cylinder ass'y. Includes 10 to 16
-
11507032423 Short brake leverShort brake lever
-
12415029800 Clamp assyClamp assy
-
13415029900 CoverCover
-
14415030000 Pin assyPin assy
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
1742603 Male connectorMale connector
-
18414920500 Banjo boltBanjo bolt
-
19414920600 WasherWasher
-
20507032395 Brake diskBrake disk
-
21293800070 Loctite 767, 8ozLoctite 767, 8oz
-
22507021300 KeyKey
-
23293600063 Brake fluid, SRF (DOT 4)Brake fluid, SRF (DOT 4)
