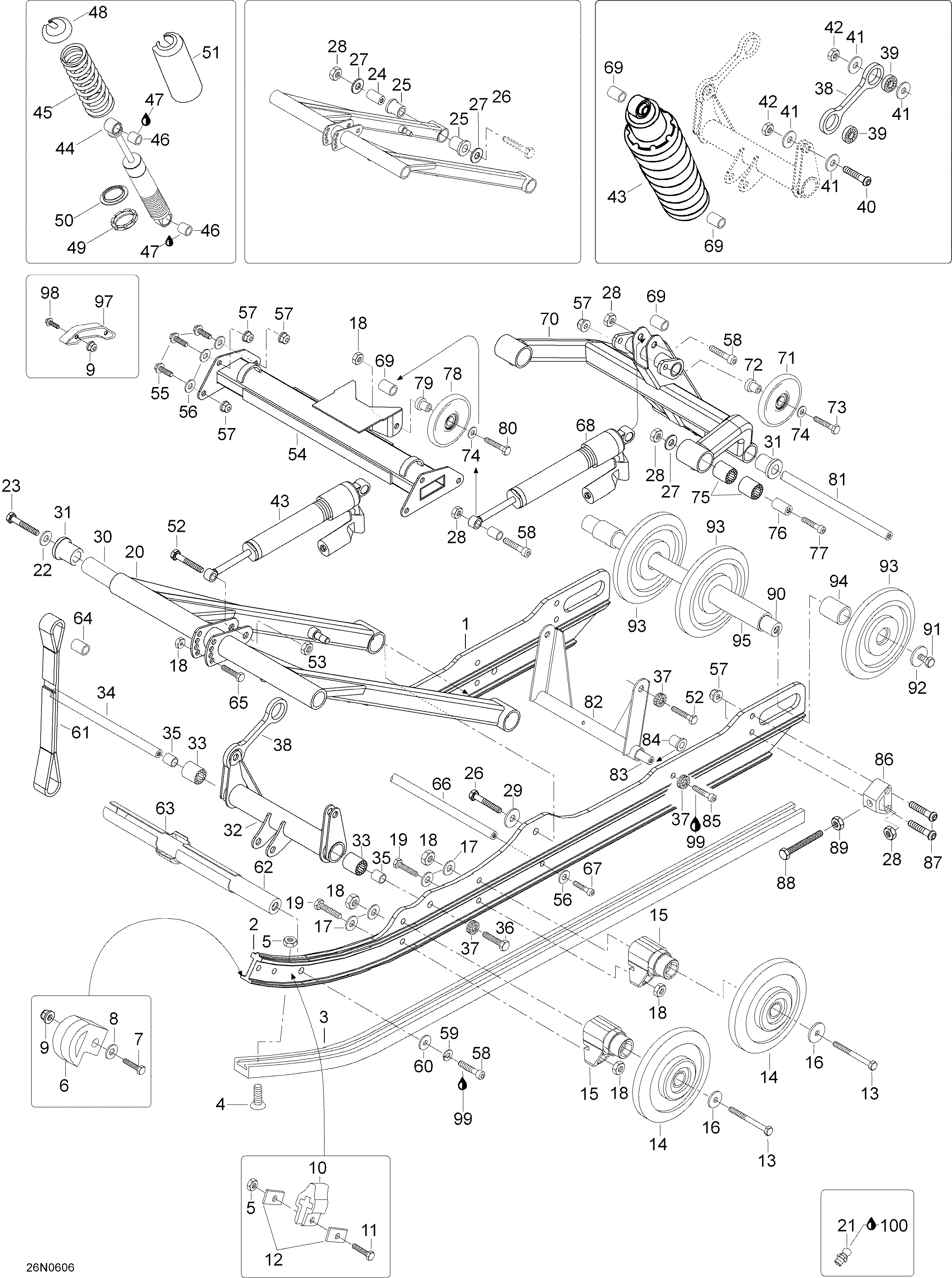

08- Rear Suspension для BRP Lynx Rave RC 453 - 2006
-
№АртикулНазвание
-
1605353965 R.H. RunnerR.H. Runner
-
2605353966 L.H. RunnerL.H. Runner
-
3605253883 ShoeShoe
-
440845 Socket head screw M6 x 25Socket head screw M6 x 25
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6605348954 Runner protectorRunner protector
-
740031 Hex. screw M6 x 25Hex. screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933200 Elastic flanged nut M6Elastic flanged nut M6
-
105442328 Rubber stopperRubber stopper
-
1140032 Hex. screw M6 x 30Hex. screw M6 x 30
-
12548470 WasherWasher
-
1340089 Hex. screw M8 x 75Hex. screw M8 x 75
-
14503190802 Idler wheel, 135/BlackIdler wheel, 135/Black
-
15605450182 SupportSupport
-
16503183100 Aluslevy M8 hardenedAluslevy M8 hardened
-
1720104 Aluslevy M8 hardenedAluslevy M8 hardened
-
1833011 Elastic stop nut M8Elastic stop nut M8
-
1940037 Hex. screw M8 x 25Hex. screw M8 x 25
-
20605153949 Front armFront arm
-
2134011 Grease nippleGrease nipple
-
2220090 WasherWasher
-
2340243 Hex. screw M12 x 60Hex. screw M12 x 60
-
24605354157 ShaftShaft
-
2531065 CushionCushion
-
2640021 Hex. screw M10 x 70Hex. screw M10 x 70
-
2720116 WasherWasher
-
2833012 Elastic stop nut M10Elastic stop nut M10
-
29512056700 Lock washerLock washer
-
305346135 ShaftShaft
-
3131024 CushionCushion
-
32605353951 Front AarmFront Aarm
-
33605631000 BearingBearing
-
34605354158 ShaftShaft
-
35605631002 InnersleeveInnersleeve
-
3640017 Screw M10 x 50Screw M10 x 50
-
3720068 Lock washer D10Lock washer D10
-
38605254159 Link plateLink plate
-
39605631003 Ball bearingBall bearing
-
40605640010 Socket head screw M10 x 20Socket head screw M10 x 20
-
4120116 WasherWasher
-
4233055 Elastic stop nut M10Elastic stop nut M10
-
43605353956 Shock ass'y, front arm. Includes 43 to 50Shock ass'y, front arm. Includes 43 to 50
-
44605623011 Shock, front armShock, front arm
-
44605623012 Shock, rear armShock, rear arm
-
4525054 Spring, front armSpring, front arm
-
45605625000 Spring, rear armSpring, rear arm
-
4631094 CushionCushion
-
47320006 Loctite 641, 50mlLoctite 641, 50ml
-
485346750 Spring stopperSpring stopper
-
49230048 CamCam
-
50230049 Spring guideSpring guide
-
515346754 ProtectorProtector
-
5240016 Hex. screw M10 x 45Hex. screw M10 x 45
-
5333012 Elastic stop nut M10Elastic stop nut M10
-
54605153954 Upper armUpper arm
-
5540036 Screw M8 x 20Screw M8 x 20
-
5620004 Washer A8,4Washer A8,4
-
5733201 Elastic flanged nut M8Elastic flanged nut M8
-
5840134 Socket head screw M10 x 45Socket head screw M10 x 45
-
5920047 Washer B10Washer B10
-
6020105 Washer, hardened M10Washer, hardened M10
-
61605353957 Stopper strapStopper strap
-
62605353958 ShaftShaft
-
63605349381 LimiterLimiter
-
64605454518 SleeveSleeve
-
6540008 K-ruuvi M8 x 45 DIN931m8.8ZneK-ruuvi M8 x 45 DIN931m8.8Zne
-
665445618 ShaftShaft
-
6740135 Socket head screw M8 x 30Socket head screw M8 x 30
-
68605353955 Shock ass'y, rear arm. Includes 43 to 50Shock ass'y, rear arm. Includes 43 to 50
-
695446652 SleeveSleeve
-
70605153950 Rear armRear arm
-
7146100 Idler wheel 133/blackIdler wheel 133/black
-
72605454461 SleeveSleeve
-
7340007 Screw M8 x 40Screw M8 x 40
-
7420010 Washer A8,4Washer A8,4
-
7531044 BearingBearing
-
76605354176 SleeveSleeve
-
7740254 Socket head screw M10 x 65Socket head screw M10 x 65
-
78572043500 Support wheelSupport wheel
-
79605454167 SleeveSleeve
-
8040005 Screw M8 x 30Screw M8 x 30
-
81605353961 ShaftShaft
-
82605353953 Rear armRear arm
-
83605354181 ShaftShaft
-
84605354182 CushionCushion
-
8540838 Socket head screw M10 x 60Socket head screw M10 x 60
-
865341633 TensionerTensioner
-
8740392 Socket head screw M8 x 45Socket head screw M8 x 45
-
8840239 Hex. screw M10 x 100Hex. screw M10 x 100
-
8933004 Nut M10Nut M10
-
905341511 ShaftShaft
-
9140050 Hex. screw M10 x 35Hex. screw M10 x 35
-
92503183300 Aluslevy M10 hardenedAluslevy M10 hardened
-
93503189478 Idler wheel 165Idler wheel 165
-
945441512 SleeveSleeve
-
955441513 SleeveSleeve
-
965444099 SleeveSleeve
-
975343191 Slide partSlide part
-
9840064 Locking screw M6 x 40Locking screw M6 x 40
-
99293800005 Loctite 271, 10mlLoctite 271, 10ml
-
100293550033 Synthetic grease, 400Synthetic grease, 400
