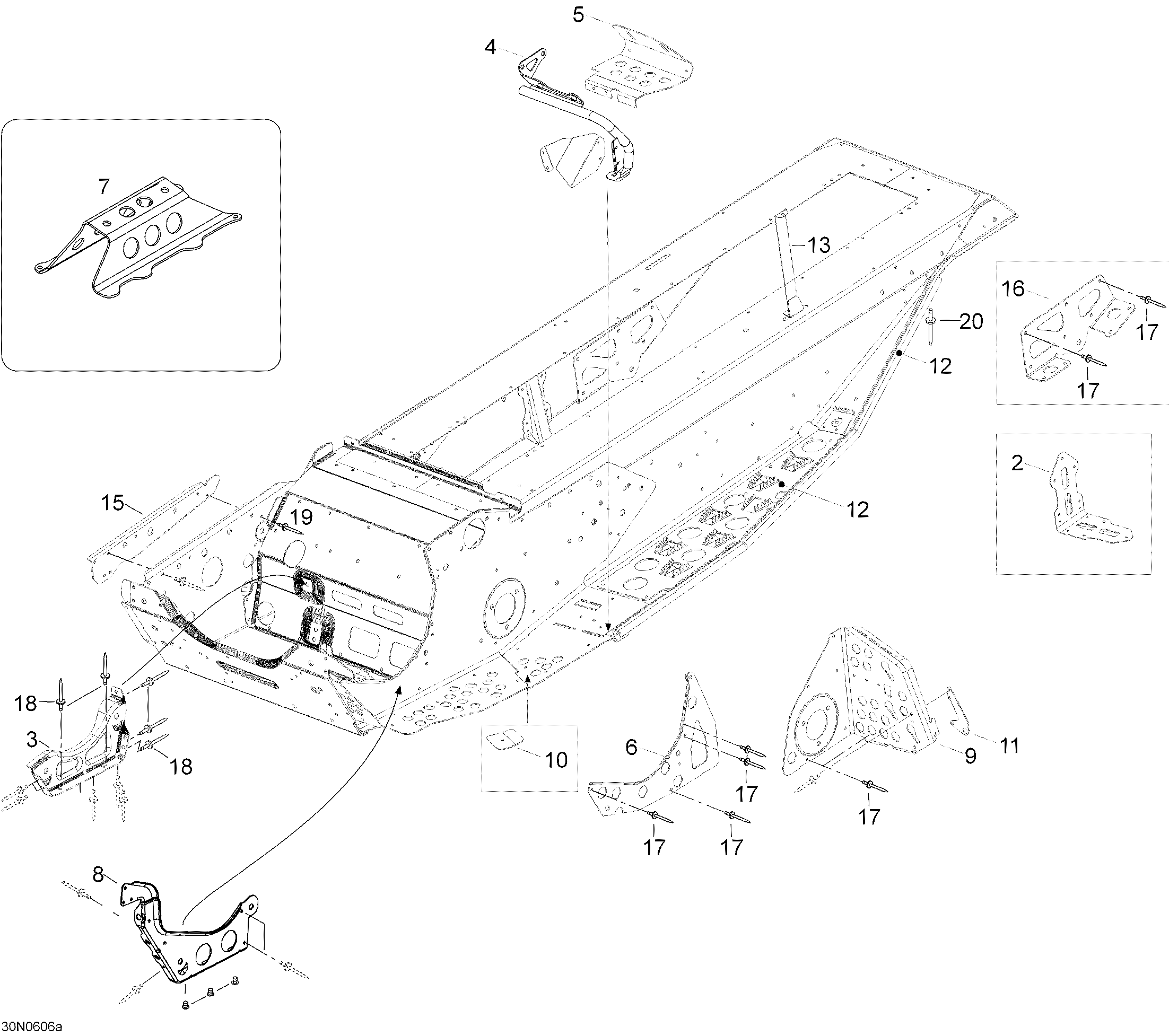

09- Frame для BRP Lynx Rave RC 453 - 2006
-
№АртикулНазвание
-
1605153889 Frame ass'y. Includes 1 to 20Frame ass'y. Includes 1 to 20
-
2518323578 ReinforcementReinforcement
-
3518323346 StiffenerStiffener
-
4605352621 L.H. FootrestL.H. Footrest
-
4605352622 R.H. FootrestR.H. Footrest
-
5605353980 R.H. Toe holdR.H. Toe hold
-
5605353981 L.H. Toe holdL.H. Toe hold
-
6605350345 Inner reinforcementInner reinforcement
-
7518324093 Engine supportEngine support
-
8605451826 L.H. Engine supportL.H. Engine support
-
9518323805 R.H. footrest reinforcementR.H. footrest reinforcement
-
9518324527 L.H. footrest reinforcementL.H. footrest reinforcement
-
10605451590 Rivet plateRivet plate
-
11605453453 L.H. BracketL.H. Bracket
-
11605453454 R.H. BracketR.H. Bracket
-
12605353982 L.H. RollerL.H. Roller
-
12605353983 R.H. RollerR.H. Roller
-
13605351612 L.H. Steel stripL.H. Steel strip
-
13605351613 R.H. Steel stripR.H. Steel strip
-
14605254123 L.H. Side bracketL.H. Side bracket
-
14605254124 R.H. Side bracketR.H. Side bracket
-
15605353544 L.H. Side bracketL.H. Side bracket
-
16605354140 L.H. Side bracketL.H. Side bracket
-
16605354141 R.H. Side bracketR.H. Side bracket
-
1736070 RivetRivet
-
1836007 RivetRivet
-
1936094 RivetRivet
-
2036108 RivetRivet
