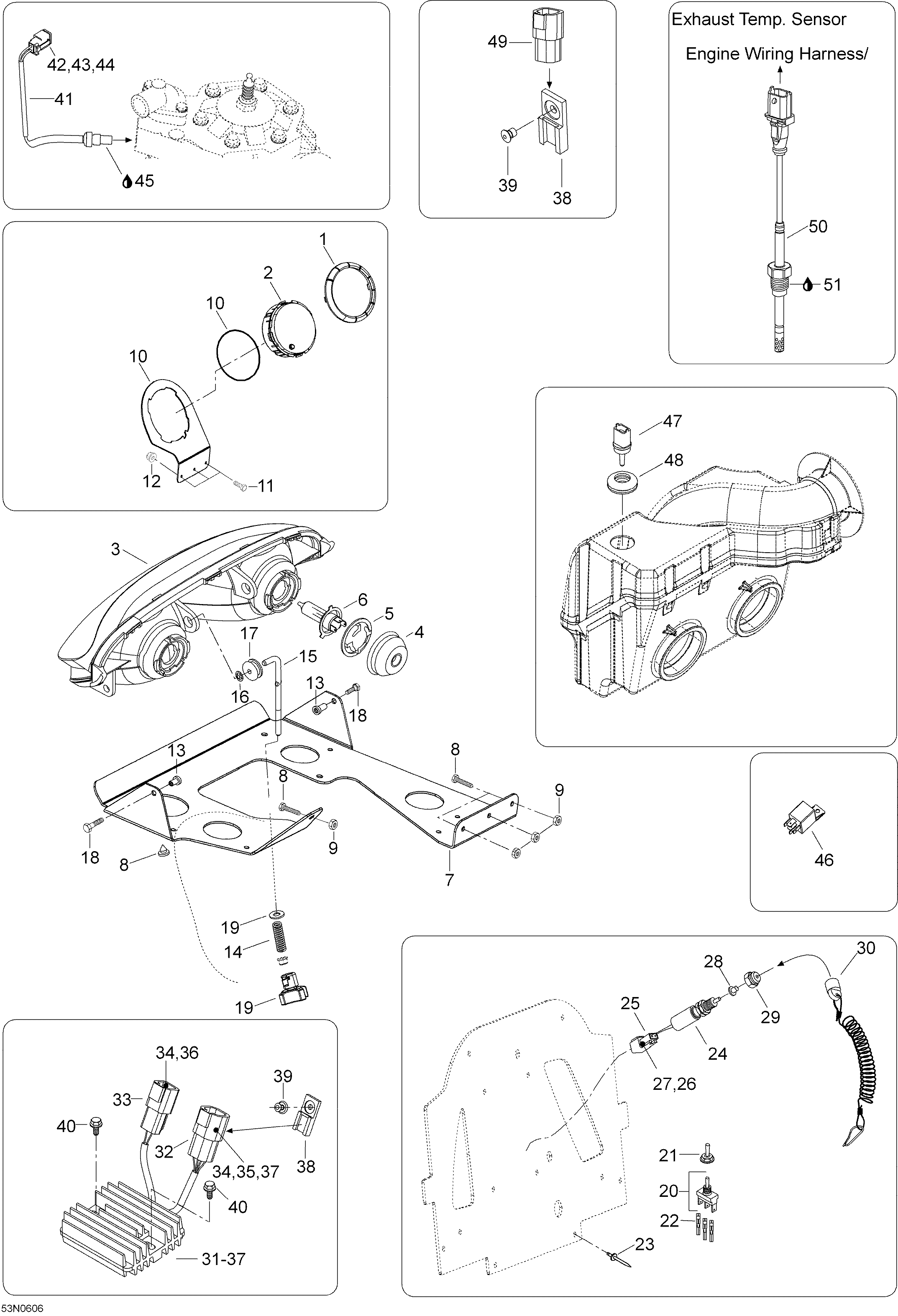

10- Electrical Accessories для BRP Lynx Rave RC 453 - 2006
-
№АртикулНазвание
-
1515175651 Gauge ringGauge ring
-
2515176305 TachometerTachometer
-
3515176311 halogen headlamp. Includes 3 to 6halogen headlamp. Includes 3 to 6
-
4410607100 CoverCover
-
5410608300 Bulp holderBulp holder
-
6410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
7605253885 Headlamp supportHeadlamp support
-
840235 Screw M5 x 35Screw M5 x 35
-
933009 Elastic stop nut M5Elastic stop nut M5
-
10605353886 Instrument panelInstrument panel
-
1140026 Screw M5 x 12Screw M5 x 12
-
1233062 Elastic flanged nut M5Elastic flanged nut M5
-
13250100018 Well-nutWell-nut
-
14415100600 SpringSpring
-
15517295800 Adjuster RodAdjuster Rod
-
16732610072 Nut PushNut Push
-
17415100800 GrommetGrommet
-
1840231 Screw M5 x 30Screw M5 x 30
-
19515175975 KnobKnob
-
20410107300 SwitchSwitch
-
21515175281 Switch coverSwitch cover
-
2242603 ConnectorConnector
-
2336008 RivetRivet
-
24515175653 Brake switchBrake switch
-
25515175665 Female connector housingFemale connector housing
-
26409207500 LockLock
-
27515175768 Male connectorMale connector
-
28570151100 CapCap
-
29415073500 NutNut
-
30515167900 Cap ass'yCap ass'y
-
31515175968 Voltage regulator. Includes 31 to 37Voltage regulator. Includes 31 to 37
-
32278001477 Male terminal housing (4 circuits)Male terminal housing (4 circuits)
-
33278001674 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
34515175568 ConnectorConnector
-
35278001478 Female lock (4 circuits)Female lock (4 circuits)
-
36278001672 Female lock (2 circuits)Female lock (2 circuits)
-
37293000052 Sealing capSealing cap
-
38515175917 ClipClip
-
3936005 RivatRivat
-
4040377 Tapping screw M6 x 20Tapping screw M6 x 20
-
41515176043 Temperature sensor. Includes 41 to 44Temperature sensor. Includes 41 to 44
-
43278000632 Female terminalFemale terminal
-
44515175677 Female lock (4 circuits)Female lock (4 circuits)
-
45293800018 Loctite 592, 50 mlLoctite 592, 50 ml
-
46410113200 RelayRelay
-
47270600000 Air temperature sensorAir temperature sensor
-
48570065500 GrommetGrommet
-
49515176234 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
50515176132 Temperature sensorTemperature sensor
-
51293800070 Loctite 767, 8ozLoctite 767, 8oz
