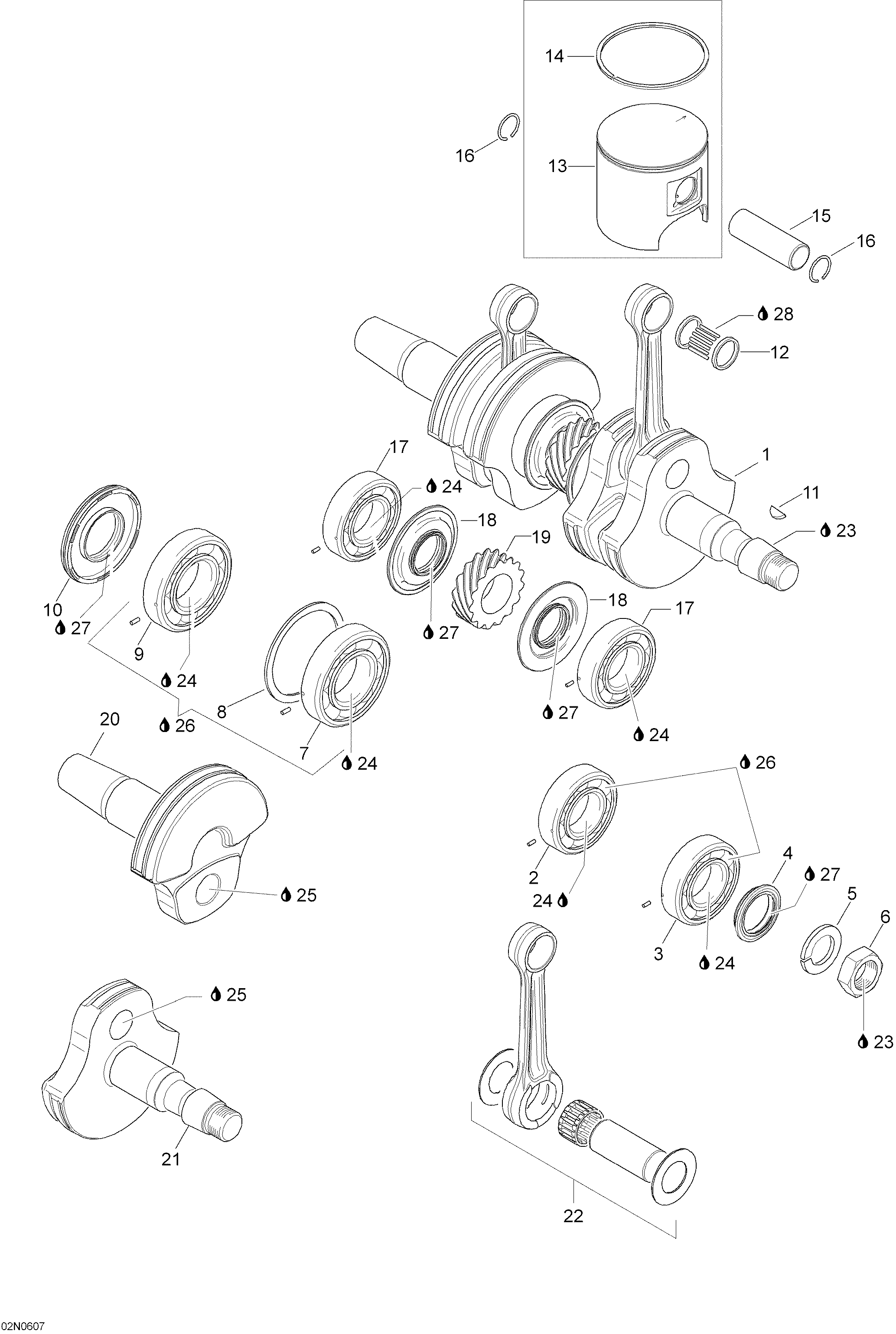

01- Crankshaft And Pistons для BRP Lynx Rave RC 600HO SDI - 2006
-
№АртикулНазвание
-
1420890950 Crankshaft ass'y. Includes 1 to 10Crankshaft ass'y. Includes 1 to 10
-
2420832638 Ball bearing 6207Ball bearing 6207
-
3420832575 Ball bearing 6207Ball bearing 6207
-
4420931792 Oil sealOil seal
-
5420945759 Lock washer 22 mmLock washer 22 mm
-
6420842230 Hex. nut M22Hex. nut M22
-
7420832608 Ball bearing 6207Ball bearing 6207
-
8420926190 Retaining diskRetaining disk
-
9420832700 Ball bearing 6207Ball bearing 6207
-
10420931285 Oil sealOil seal
-
11420246015 Woodruff-keyWoodruff-key
-
12420832428 Needle bearingNeedle bearing
-
13420889187 Piston ass'y. Includes 13 to 14Piston ass'y. Includes 13 to 14
-
14420815295 Semi-trapez ring 66,6 mmSemi-trapez ring 66,6 mm
-
15420916411 Piston pinPiston pin
-
16420845106 Piston circlipPiston circlip
-
17420832575 Ball bearing 6206Ball bearing 6206
-
18420931455 Oil sealOil seal
-
19420834355 Central gear 15 TeethCentral gear 15 Teeth
-
20420818709 Crankshaft (PTO-side)Crankshaft (PTO-side)
-
21420819232 Crankshaft (MAG-side)Crankshaft (MAG-side)
-
22420684653 Rod repair kit (MAG side)Rod repair kit (MAG side)
-
22420684654 Rod repair kit (PTO side)Rod repair kit (PTO side)
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800023 Loctite 767, Antiseize lubricant, 454 gLoctite 767, Antiseize lubricant, 454 g
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
261472341 Klueber Isoflex grease, 400 gKlueber Isoflex grease, 400 g
-
27420899271 Grease Petamo Ghy 133N, 400 gGrease Petamo Ghy 133N, 400 g
-
281472236 Injection oil (8 x 1 Liter)Injection oil (8 x 1 Liter)
