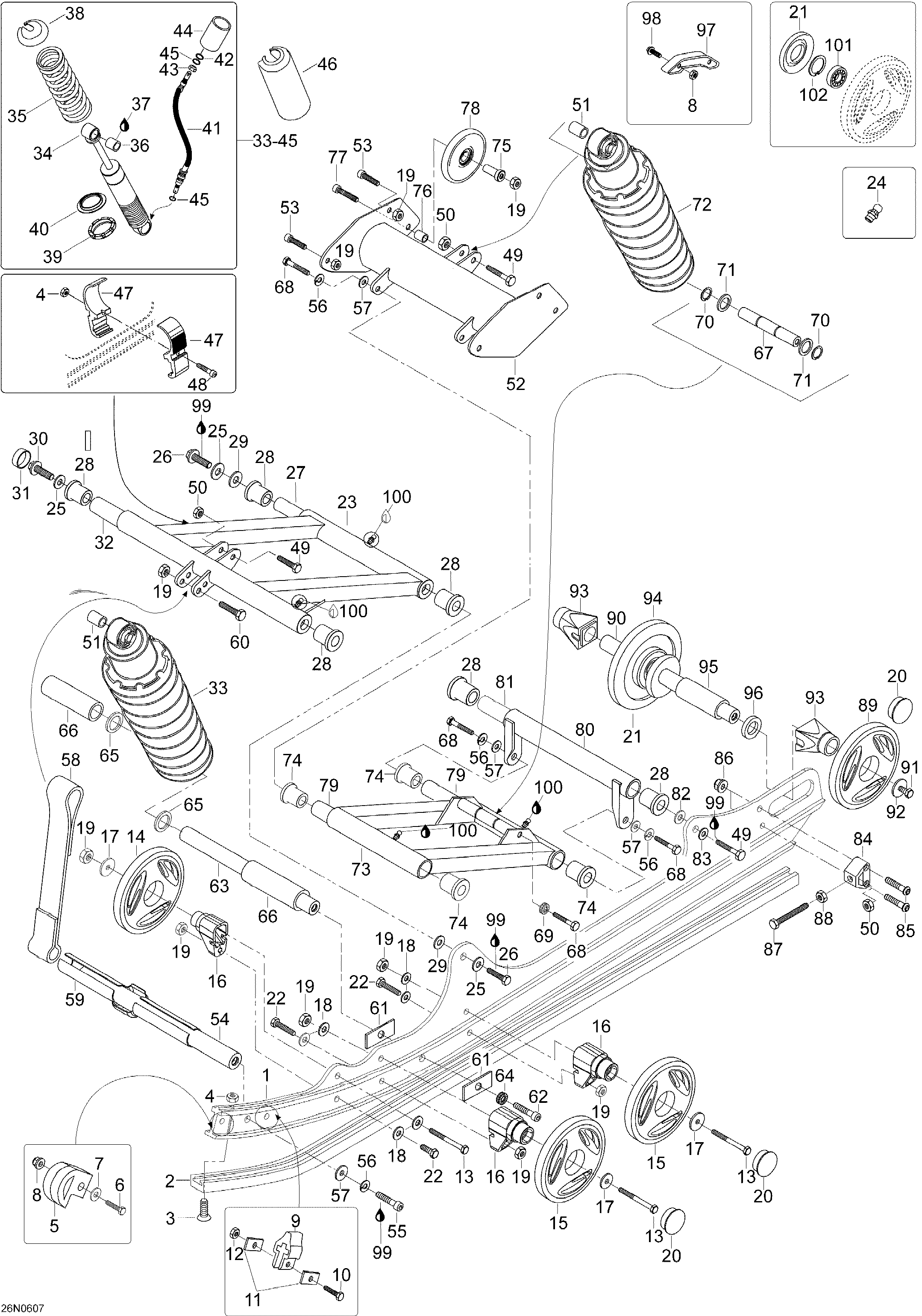

08- Rear Suspension для BRP Lynx Rave RC 600HO SDI - 2006
-
№АртикулНазвание
-
1605253578 L.H. RunnerL.H. Runner
-
1605253576 R.H. RunnerR.H. Runner
-
2605351309 ShoeShoe
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
720003 Washer A6,4Washer A6,4
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95442328 Rubber stopperRubber stopper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 WasherWasher
-
1233010 Elastic stop nut M6Elastic stop nut M6
-
1340089 Hex. screw M8 x 75Hex. screw M8 x 75
-
14503190577 Idler wheel, (141)Idler wheel, (141)
-
15503190751 Idler wheel, (141)Idler wheel, (141)
-
16605451906 SupportSupport
-
17211200041 Washer M8Washer M8
-
1820104 Washer, hardened M8Washer, hardened M8
-
1933011 Elastic stop nut M8Elastic stop nut M8
-
20570063600 ProtectorProtector
-
21503190434 Labyrinth sealLabyrinth seal
-
2240037 Hex. screw M8 x 25Hex. screw M8 x 25
-
235145588 Front armFront arm
-
2434011 Grease nippleGrease nipple
-
2520090 WasherWasher
-
2640099 Hex. screw M12 x 45Hex. screw M12 x 45
-
27605352383 ShaftShaft
-
2831024 CushionCushion
-
2920040 WasherWasher
-
3040243 Hex. screw M12 x 60Hex. screw M12 x 60
-
315448025 CapCap
-
325346135 ShaftShaft
-
33605352720 Shock ass'y, front arm. Includes 33 to 45Shock ass'y, front arm. Includes 33 to 45
-
3423221 Shock, front armShock, front arm
-
3423222 Shock, rear armShock, rear arm
-
3525073 Spring, front armSpring, front arm
-
3525070 Spring, rear armSpring, rear arm
-
3631094 CushionCushion
-
37320006 Loctite 641, 50mlLoctite 641, 50ml
-
385346750 Spring stopperSpring stopper
-
39230048 CamCam
-
40230049 Spring guideSpring guide
-
41230111 Hose, center shockHose, center shock
-
41619300014 Hose, rear shockHose, rear shock
-
42230112 WasherWasher
-
44619300002 ReservoirReservoir
-
45619300003 O-ringO-ring
-
465346754 ProtectorProtector
-
47605352257 BracketBracket
-
4840806 Socket head screw M6 x 50Socket head screw M6 x 50
-
4940016 Hex. screw M10 x 45Hex. screw M10 x 45
-
5033012 Elastic stop nut M10Elastic stop nut M10
-
515446652 SleeveSleeve
-
52605253606 Upper armUpper arm
-
5340351 Socket head screw M8 x 20Socket head screw M8 x 20
-
545343471 ShaftShaft
-
5540134 Socket head screw M10 x 45Socket head screw M10 x 45
-
5620047 Lock washer 10mmLock washer 10mm
-
5720105 Washer, hardened, 10mmWasher, hardened, 10mm
-
58605449385 Stopper strapStopper strap
-
59605349381 LimiterLimiter
-
6040008 Hex. screw M8 x 45Hex. screw M8 x 45
-
61605449294 Support plateSupport plate
-
6240371 Socket head screw M12 x 55Socket head screw M12 x 55
-
63605350690 ShaftShaft
-
6420074 Lock washer 12mmLock washer 12mm
-
6531013 ShimShim
-
66605349896 SleeveSleeve
-
67605451897 ShaftShaft
-
6840014 Hex. screw M10 x 40Hex. screw M10 x 40
-
6920068 Lock washer 10mmLock washer 10mm
-
7031007 CirclipCirclip
-
7131091 ShimShim
-
72605352725 Shock ass'y, rear arm. Includes 33 to 45Shock ass'y, rear arm. Includes 33 to 45
-
73605349313 Rear armRear arm
-
7431027 CushionCushion
-
755446700 SleeveSleeve
-
765446701 SleeveSleeve
-
77605640005 Socket head screw M8 x 80Socket head screw M8 x 80
-
7846027 Idler wheelIdler wheel
-
795346865 ShaftShaft
-
805345535 Rear armRear arm
-
815346900 ShaftShaft
-
8220116 WasherWasher
-
83512056700 Lock washerLock washer
-
845341633 TensionerTensioner
-
8540392 Socket head screw M8 x 45Socket head screw M8 x 45
-
8633201 Elastic flanged nut M8Elastic flanged nut M8
-
8740239 Hex. screw M10 x 100Hex. screw M10 x 100
-
8833004 Nut M10Nut M10
-
89503190752 Idler fheel (180mm)Idler fheel (180mm)
-
90503190429 ShaftShaft
-
9140050 Hex. screw M10 x 35Hex. screw M10 x 35
-
92503190439 WasherWasher
-
93503190428 SleeveSleeve
-
94503190395 Idler wheel (180mm)Idler wheel (180mm)
-
95503190430 SleeveSleeve
-
96503190432 SleeveSleeve
-
975343191 Slide partSlide part
-
9840064 Locking screw M6 x 40Locking screw M6 x 40
-
99293800005 Loctite 271, 10mlLoctite 271, 10ml
-
100413711500 Synthetic greaseSynthetic grease
-
101503190795 Ball bearingBall bearing
-
102371901700 CirclipCirclip
