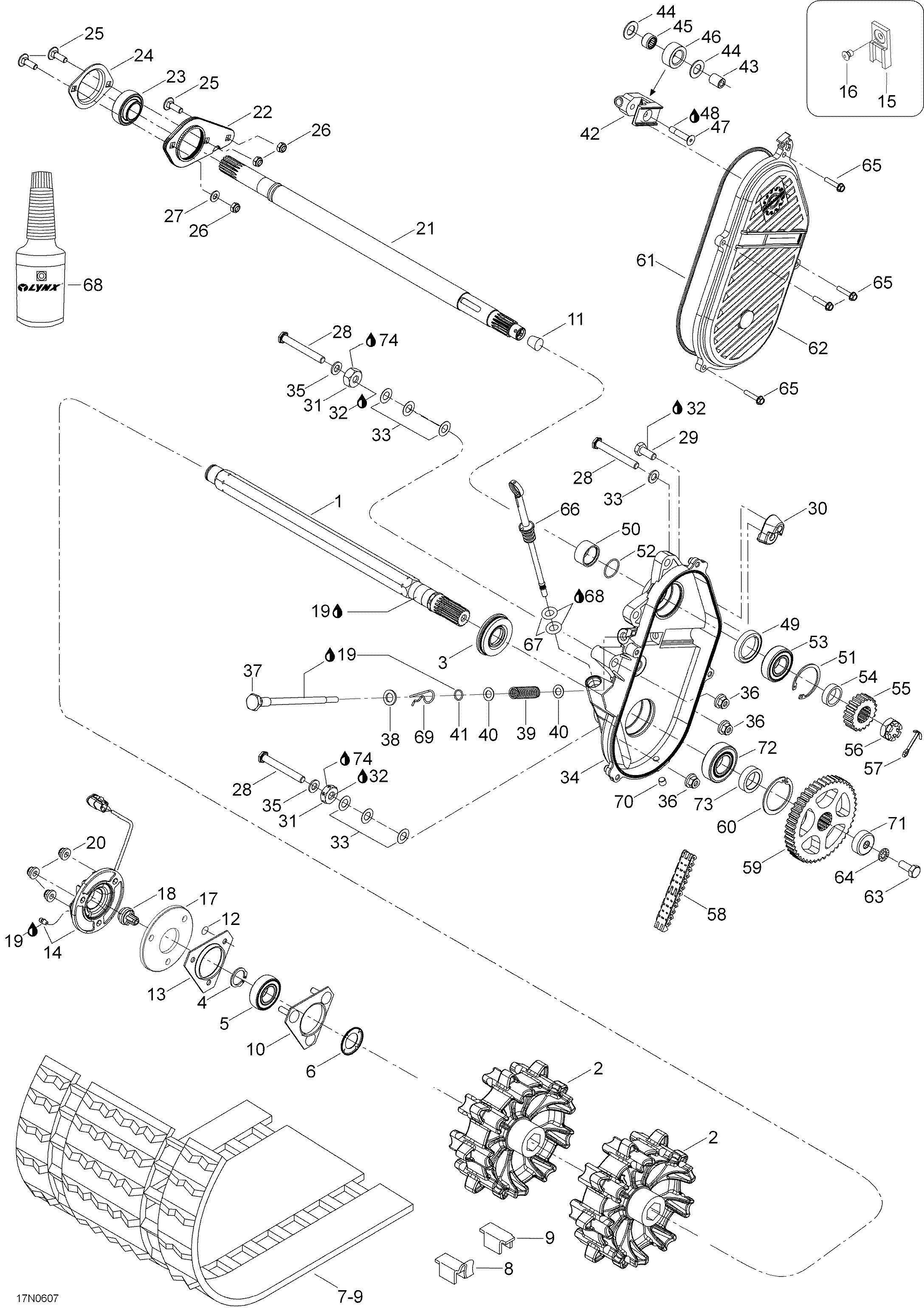

05- Drive Axle And Track для BRP Lynx Rave RC 600HO SDI - 2006
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504152503 SprocketSprocket
-
3504151918 Oil sealOil seal
-
431001 CirclipCirclip
-
5504152009 Ball bearingBall bearing
-
6501017400 Ball bearing protectorBall bearing protector
-
713075 Track (31.7). Includes 7 to 9Track (31.7). Includes 7 to 9
-
85318330 Guide clipGuide clip
-
95318329 CleatCleat
-
10504151860 Ball bearing housingBall bearing housing
-
11414784800 KorkKork
-
12414484400 O-ringO-ring
-
13501025000 FlangeFlange
-
14504152345 Speed sensor flangeSpeed sensor flange
-
15515175917 ClipClip
-
1636005 RivetRivet
-
175446641 Shim plateShim plate
-
18504152040 Magnetic adaptorMagnetic adaptor
-
19293550033 Synthetic greaseSynthetic grease
-
2033201 Elastic flanged nut M8Elastic flanged nut M8
-
21504152018 Counter shaftCounter shaft
-
22504151968 SpacerSpacer
-
23504152535 Ball bearingBall bearing
-
24501026900 FlangeFlange
-
2540312 Carriage bolt M8 x 22Carriage bolt M8 x 22
-
2633011 Elastic stop nut M8Elastic stop nut M8
-
2720004 Washer 8mmWasher 8mm
-
28250000151 Hex. screw M10 x 80Hex. screw M10 x 80
-
2940040 Hex. screw M10 x 25Hex. screw M10 x 25
-
30504152252 SleeveSleeve
-
31504083800 SpacerSpacer
-
32293800060 Loctite 243, 10mlLoctite 243, 10ml
-
33504073700 ShimShim
-
34504152482 ChaincaseChaincase
-
35605620000 Washer 10mmWasher 10mm
-
3633074 Elastic flanged nut M10Elastic flanged nut M10
-
37504151946 Adjusting screwAdjusting screw
-
38503189148 Washer, hardenedWasher, hardened
-
39504151945 SpringSpring
-
40503125900 Washer, hardenedWasher, hardened
-
41504151954 O-ringO-ring
-
42504151940 Chain tensionerChain tensioner
-
43504080200 SleeveSleeve
-
44504080300 WasherWasher
-
45405403000 Needle bearingNeedle bearing
-
46414531300 RollerRoller
-
47732601144 ScrewScrew
-
48293800005 Loctite 271,10mlLoctite 271,10ml
-
49415049300 Oil sealOil seal
-
50507031500 SleeveSleeve
-
51371901700 CirclipCirclip
-
52414876700 O-ringO-ring
-
53504152006 Ball bearingBall bearing
-
54504147200 ShimShim
-
55504090900 Sprocket (24)Sprocket (24)
-
56250000012 Hex. castellated nut M20Hex. castellated nut M20
-
5741003 Cotter pinCotter pin
-
58504151857 Drive chain (74 links)Drive chain (74 links)
-
59504148500 Sprocket (43 teeth)Sprocket (43 teeth)
-
60415064300 CirclipCirclip
-
61415046400 O-ringO-ring
-
62504152471 CoverCover
-
6340040 Screw M10 x 25Screw M10 x 25
-
6420068 Lock washer 10mmLock washer 10mm
-
6540340 Hex. flanged screw M6 x 30Hex. flanged screw M6 x 30
-
66504151703 Filler capFiller cap
-
67414969400 O-ringO-ring
-
68413803300 Synthetic chaincase oil, 12 x 355 mlSynthetic chaincase oil, 12 x 355 ml
-
69414575600 Hair pinHair pin
-
70504151921 PlugPlug
-
71504152460 CapCap
-
72504152005 Ball bearingBall bearing
-
73504152058 ShimShim
-
74293800070 Loctite 767, antiseize lubricant, 8ozLoctite 767, antiseize lubricant, 8oz
