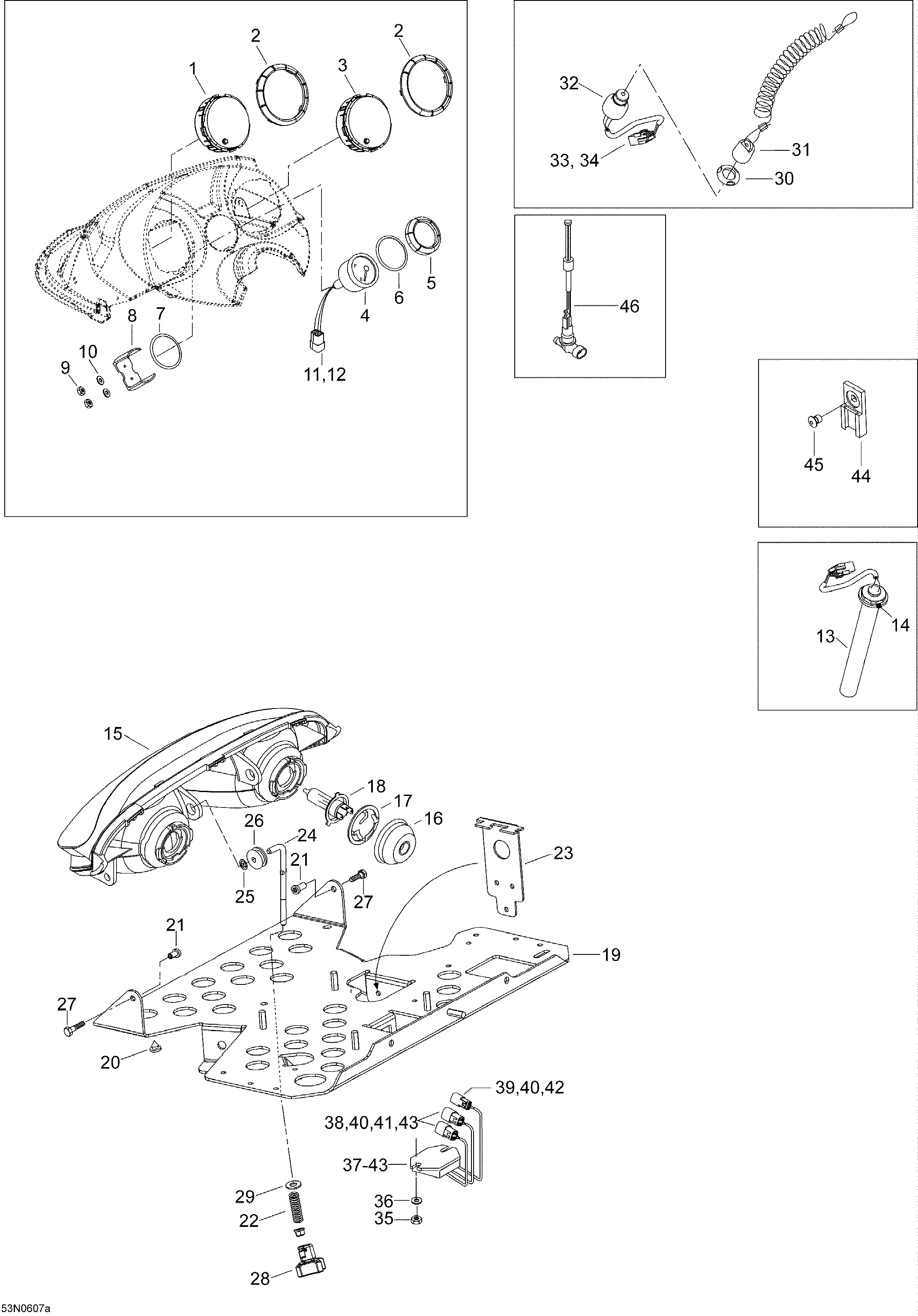

10- Electrical System для BRP Lynx Rave RC 600HO SDI - 2006
-
№АртикулНазвание
-
1515176302 SpeedometerSpeedometer
-
2515175651 Gauge ringGauge ring
-
3515176303 TachometerTachometer
-
4515175529 Fuel gaugeFuel gauge
-
5515175711 Gauge ringGauge ring
-
6517258600 RingRing
-
7414807200 O-ringO-ring
-
8414806600 Case holderCase holder
-
933008 Elastic stop nut M4Elastic stop nut M4
-
1020037 Washer A4,3Washer A4,3
-
1142269 Male connector housing (6 circuits)Male connector housing (6 circuits)
-
12605642628 Male connectorMale connector
-
13605253587 Fuel censorFuel censor
-
14293720058 GrommetGrommet
-
15515176311 Halogen headlamp ass'y. Includes 15 to 18Halogen headlamp ass'y. Includes 15 to 18
-
16410607100 CoverCover
-
17410608300 Bulp holderBulp holder
-
18410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
19605253349 Headlamp supportHeadlamp support
-
20605452114 PluggPlugg
-
21250100018 Well-nutWell-nut
-
22415100600 SpringSpring
-
23605354046 Cable supportCable support
-
24517295800 Adjuster RodAdjuster Rod
-
25732610072 Nut PushNut Push
-
26415100800 GrommetGrommet
-
2740231 Hex. screw M5 x 30Hex. screw M5 x 30
-
28515175975 KnobKnob
-
2920003 Washer A6,4Washer A6,4
-
30278000508 Plastic nutPlastic nut
-
31515166900 DESS capDESS cap
-
32515175797 DESS switch. Includes 32 to 34DESS switch. Includes 32 to 34
-
3342603 Male connectorMale connector
-
3442271 Male connector housingMale connector housing
-
3533010 Elastic stop nut M6Elastic stop nut M6
-
3620009 Washer A6.4Washer A6.4
-
37515176023 Voltage regulator. Includes 37 to 43Voltage regulator. Includes 37 to 43
-
38278001477 Male terminal housingMale terminal housing
-
39278001674 Male terminal housingMale terminal housing
-
40515175568 Male terminalMale terminal
-
41278001478 Male lockMale lock
-
42278001672 Male lockMale lock
-
43293000052 Sealing capSealing cap
-
44515175917 ClipClip
-
4536005 RivetRivet
-
46605452095 Oil sensorOil sensor
