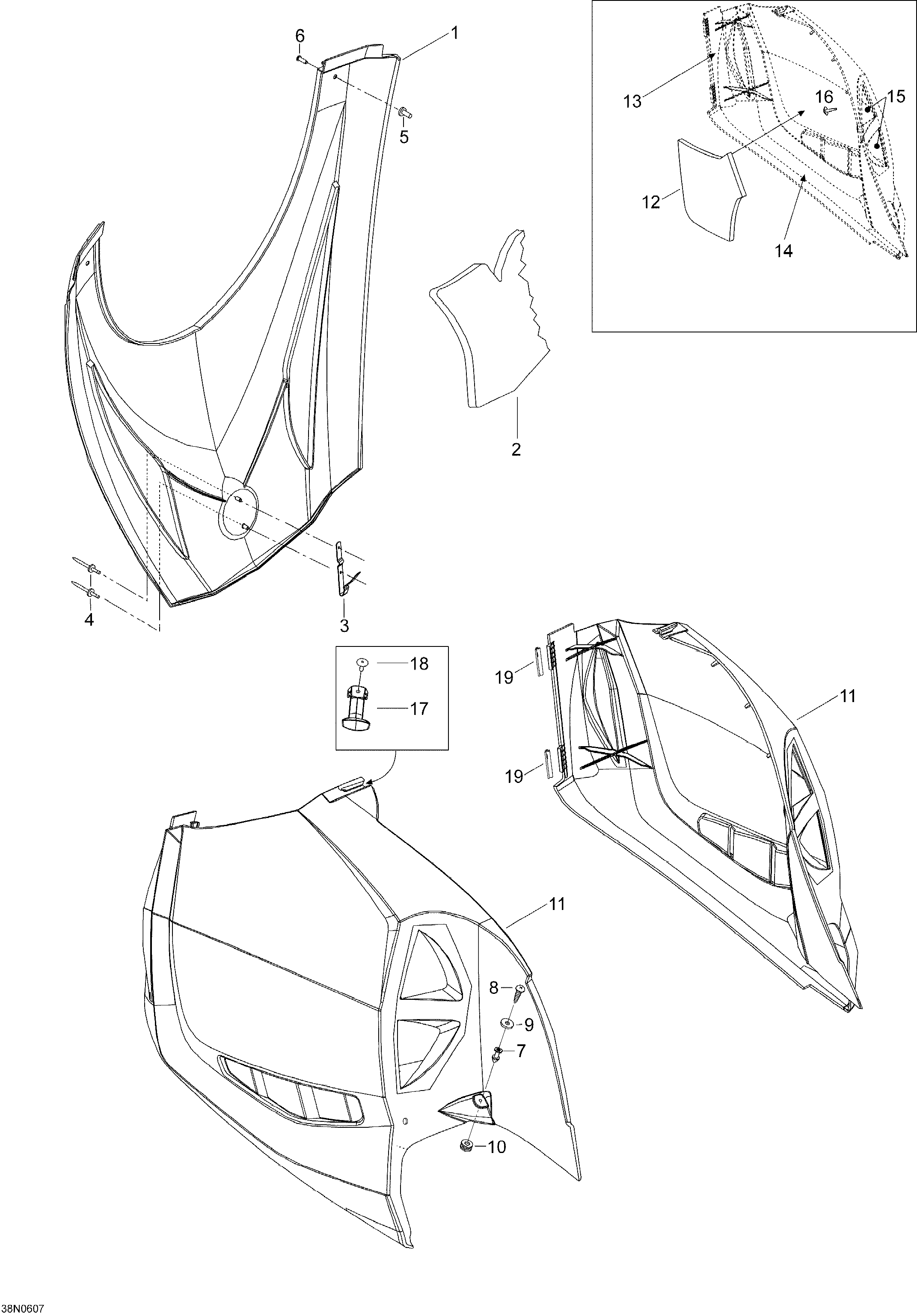

09- Hood для BRP Lynx Rave RC 600HO SDI - 2006
-
№АртикулНазвание
-
1605153160 Hood, pre ass'y, Jet Black. Includes 1 to 2Hood, pre ass'y, Jet Black. Includes 1 to 2
-
2605252248 FoamFoam
-
3605353185 BracketBracket
-
436004 RivetRivet
-
536015 Rivet nut M5Rivet nut M5
-
640072 Screw M5 x 16Screw M5 x 16
-
7517245800 KnobKnob
-
8208651481 Screw M5 x 14Screw M5 x 14
-
9250200025 WasherWasher
-
10517302841 GrommetGrommet
-
11605153287 R.H. Panel, pre ass'y, Jet Black. Includes 11 to 16R.H. Panel, pre ass'y, Jet Black. Includes 11 to 16
-
11605153289 L.H. Panel, pre ass'y, Jet Black. Includes 11 to 16L.H. Panel, pre ass'y, Jet Black. Includes 11 to 16
-
12605251679 R.H. FoamR.H. Foam
-
12605252003 L.H. FoamL.H. Foam
-
13605252369 R.H. Reflection sheetR.H. Reflection sheet
-
14605252370 L.H. Reflection sheetL.H. Reflection sheet
-
15605352689 R.H. GrillR.H. Grill
-
15605352690 L.H. GrillL.H. Grill
-
1640887 Wronic-screw 4,2 x 9,5Wronic-screw 4,2 x 9,5
-
17570027100 LatchLatch
-
1836037 RivetRivet
-
19517302823 Hinge lockHinge lock
