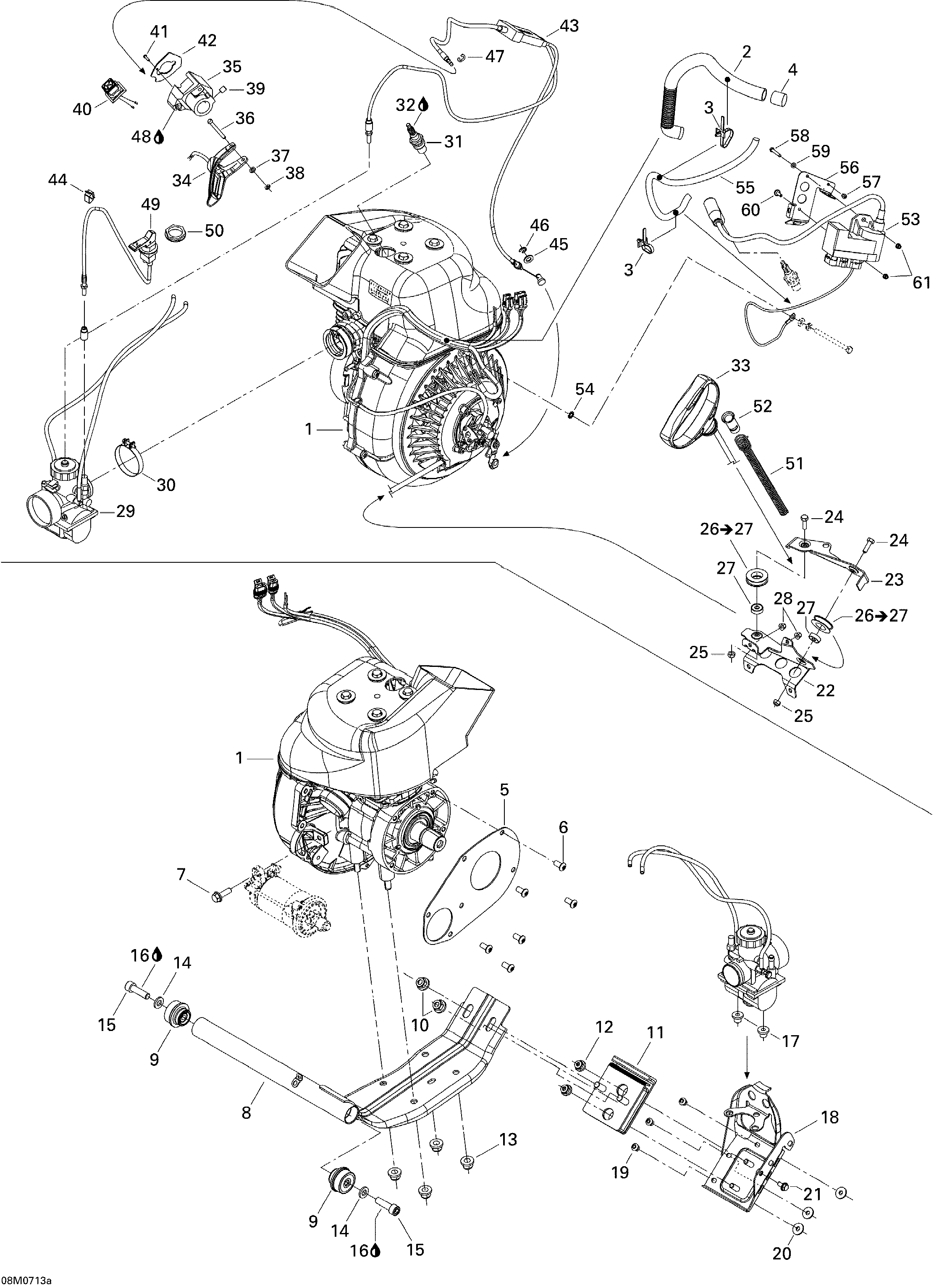

01- Engine And Engine Support 300F для BRP Lynx Adventure 300F - 2007
-
№АртикулНазвание
-
1400206006 Engine 277Engine 277
-
2415080000 Tubing 16 mmTubing 16 mm
-
3293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
4293740005 Vinyl Tape 3/4'', BlackVinyl Tape 3/4'', Black
-
5512059922 Starter SupportStarter Support
-
6250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
7207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
8512059901 Engine SupportEngine Support
-
9512059691 Rubber MountRubber Mount
-
10233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
11512059958 Rubber MountRubber Mount
-
12233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
13233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
15205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
16413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
17293720029 GrommetGrommet
-
18512059918 PlatePlate
-
21207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
22512060010 Pulley SupportPulley Support
-
23512060032 Reinforcement, GuardReinforcement, Guard
-
24207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26512060184 Pulley Ass'y. Includes 26 to 27Pulley Ass'y. Includes 26 to 27
-
27512060151 Ball BearingBall Bearing
-
28233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
29403138768 Carburetor Vm 34-618Carburetor Vm 34-618
-
30512059834 Gemi ClampGemi Clamp
-
31414961100 Spark Plug, NGK BR9ESSpark Plug, NGK BR9ES
-
32293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
33572084400 Starter GripStarter Grip
-
34512060214 Handle AssyHandle Assy
-
35512060193 Throttle HousingThrottle Housing
-
36414438700 Lever PinLever Pin
-
37234051600 Flat Washer M5Flat Washer M5
-
38293370050 CirclipCirclip
-
39414440800 Set Screw M8 X 10Set Screw M8 X 10
-
40515176091 Kill SwitchKill Switch
-
41250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
42512059507 PlatePlate
-
43512059907 Throttle CableThrottle Cable
-
44414227300 ClipClip
-
45234081100 Flat Washer 8 mmFlat Washer 8 mm
-
46414753500 CirclipCirclip
-
47414274500 CirclipCirclip
-
48293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
49512060005 Choke CableChoke Cable
-
50512060016 Plastic NutPlastic Nut
-
51512059535 Rope GuideRope Guide
-
52512059536 TubeTube
-
53512060006 Calibrated ModuleCalibrated Module
-
54394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
55515175442 Tubing 6 mmTubing 6 mm
-
56512060160 Module SupportModule Support
-
57390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
58207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
59234051410 Flat Washer M5Flat Washer M5
-
60207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
61233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
