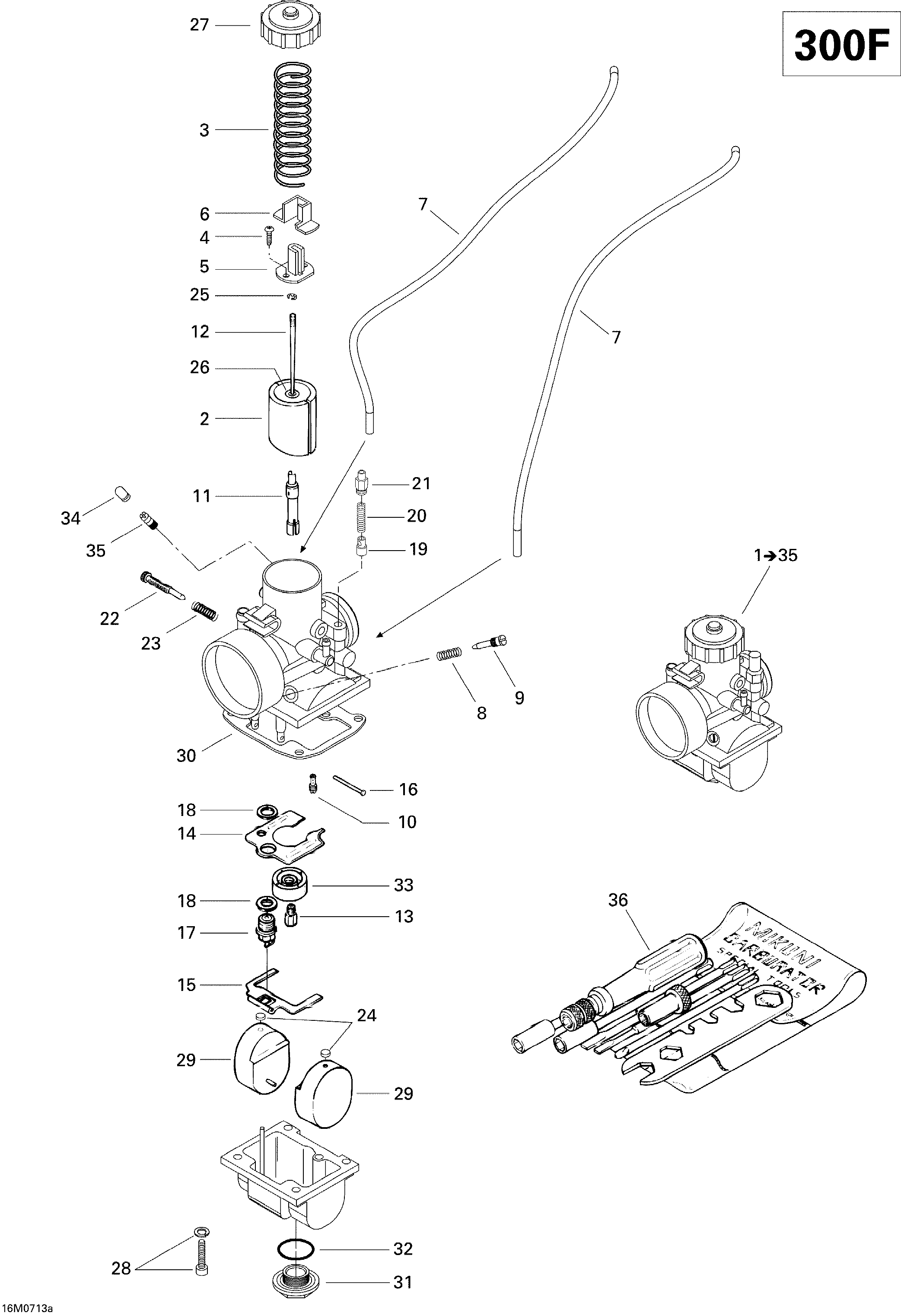

02- Carburetor 300F для BRP Lynx Adventure 300F - 2007
-
№АртикулНазвание
-
1403138768 Carburetor Vm 34-618. Includes 1 to 35Carburetor Vm 34-618. Includes 1 to 35
-
2404128400 Piston Valve 2.5Piston Valve 2.5
-
3404154800 SpringSpring
-
4404121300 Screw With WasherScrew With Washer
-
5404161987 PackingPacking
-
6404122100 CoverCover
-
7404162084 HoseHose
-
8404139800 SpringSpring
-
9404149000 Air ScrewAir Screw
-
10404109100 Pilot Jet Pj 40Pilot Jet Pj 40
-
12404101900 Needle Jet J8-6Dh04Needle Jet J8-6Dh04
-
13404112300 Main Jet Mj 200Main Jet Mj 200
-
14404109600 BaffleBaffle
-
15404107600 Float LeverFloat Lever
-
16404103300 Lever PinLever Pin
-
17404147500 Needle Valve 1.2Needle Valve 1.2
-
18404101600 Seat WasherSeat Washer
-
19404161986 Plunger Ass'yPlunger Ass'y
-
20404127400 SpringSpring
-
21404161100 Guide HolderGuide Holder
-
22404125200 Throttle ScrewThrottle Screw
-
23404101700 SpringSpring
-
24404105800 CapCap
-
25404152400 E-ringE-ring
-
26404117000 PackingPacking
-
27404103700 CoverCover
-
28404102000 Screw With Lock WasherScrew With Lock Washer
-
30404104200 GasketGasket
-
31404107400 Drain Plug ScrewDrain Plug Screw
-
32404107300 O-RingO-Ring
-
33404110900 Baffle RingBaffle Ring
-
34404156600 CapCap
-
35404153400 NippleNipple
-
36404112000 Tool KitTool Kit
