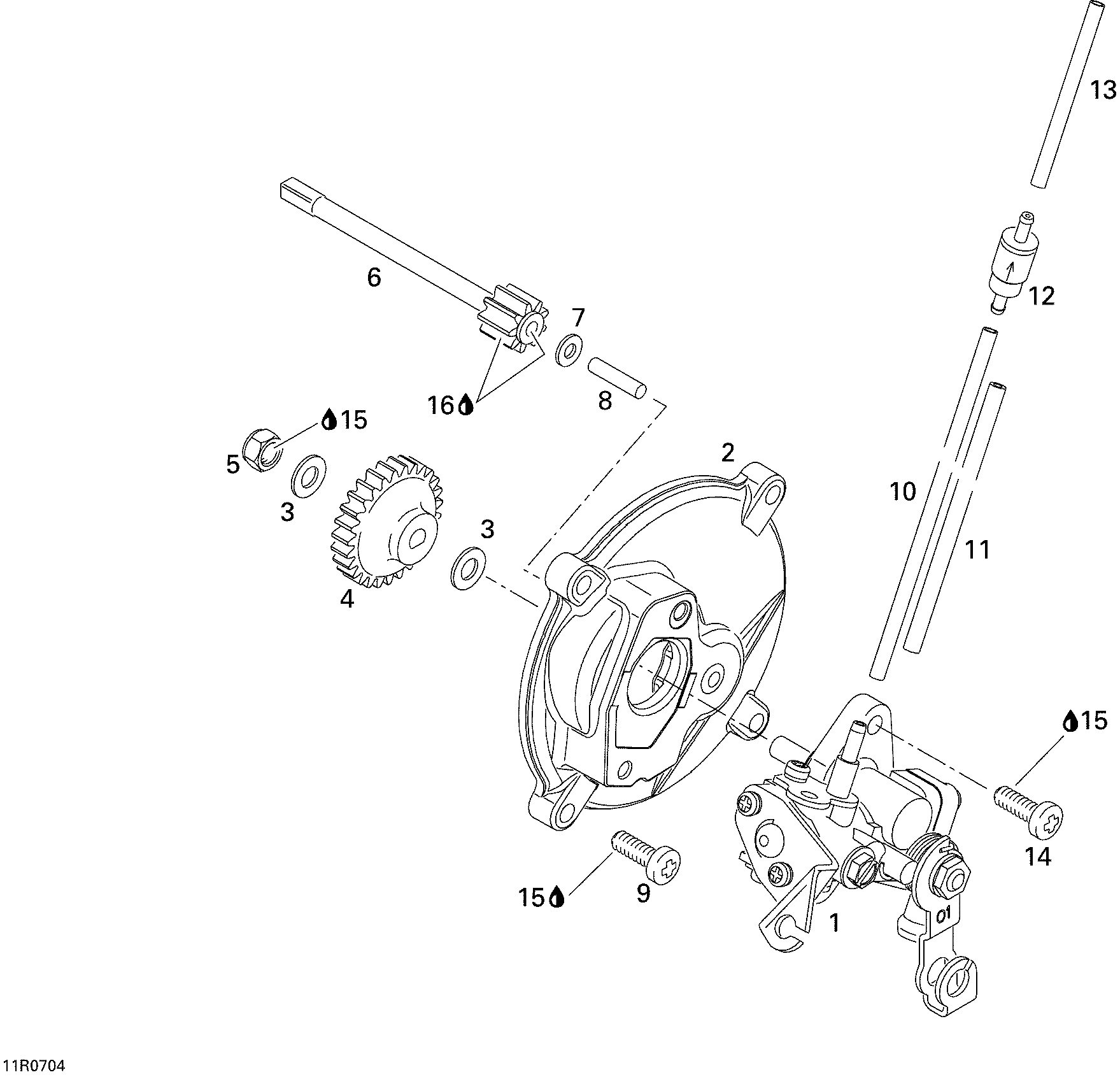

02- Oil Pump для BRP Lynx Adventure 300F - 2007
![](/wa-data/public/shop/sheme/bombardier/lynx/9bb79ba7-a551-4b1d-aa1e-ab70e8c69466.png)
-
№АртикулНазвание
-
1420890252 Oil PumpOil Pump
-
2420910160 Pump Mounting FlangePump Mounting Flange
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear, 27 TeethOil Pump Gear, 27 Teeth
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420935975 Gear, 9 TeethGear, 9 Teeth
-
7420244073 Washer 4.3Washer 4.3
-
8420832260 Needle PinNeedle Pin
-
9420841976 ScrewScrew
-
10414413800 Oil LineOil Line
-
11420960726 Isolation Hose 260 mmIsolation Hose 260 mm
-
12404160200 ValveValve
-
13414413800 Oil LineOil Line
-
14420841971 ScrewScrew
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16413707000 Molykote 111, 150 GMolykote 111, 150 G
