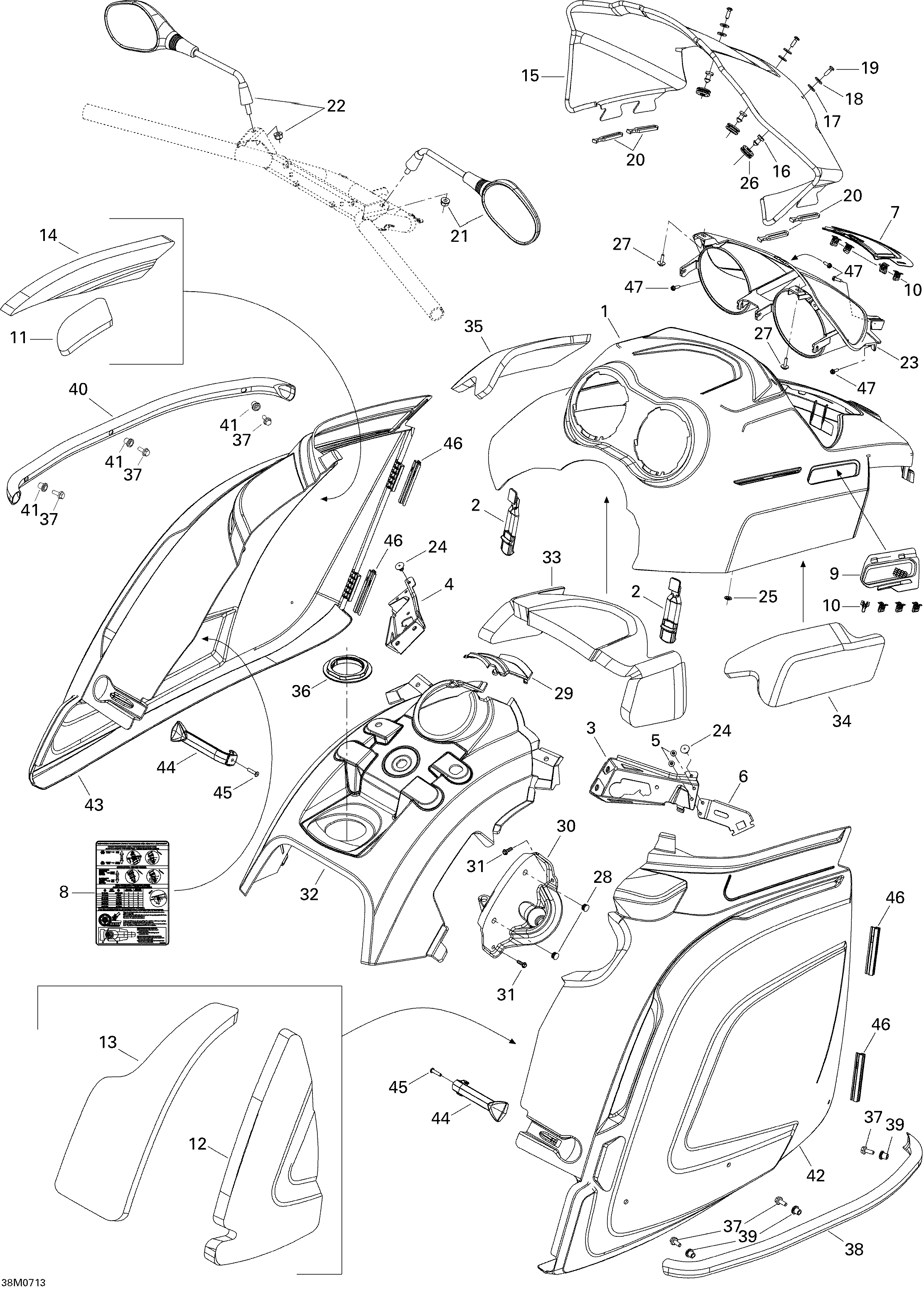

09- Hood для BRP Lynx Adventure 300F - 2007
-
№АртикулНазвание
-
1517303654 Hood. 550FHood. 550F
-
1517303655 Hood. 300FHood. 300F
-
2517303518 LatchLatch
-
3517303662 RH BracketRH Bracket
-
4517303663 LH BracketLH Bracket
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517303517 BracketBracket
-
7517303331 Center Hood GrillCenter Hood Grill
-
8517303661 Adjusment Suspension Decal. 550FAdjusment Suspension Decal. 550F
-
8517303776 Adjusment Suspension Decal. 300FAdjusment Suspension Decal. 300F
-
9517303586 RH Hood Grill. 550FRH Hood Grill. 550F
-
10517302785 Clip. 300FClip. 300F
-
10517302785 Clip. 550FClip. 550F
-
11517303520 Foam, Air Outlet. 300FFoam, Air Outlet. 300F
-
12517303456 RH Panel Foam, FrontRH Panel Foam, Front
-
13517303457 RH Panel Foam, RearRH Panel Foam, Rear
-
14517303485 LH Panel Foam, Front. 300FLH Panel Foam, Front. 300F
-
15517303440 High WindshieldHigh Windshield
-
16517303439 KnobKnob
-
17250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
18250200025 Washer M5Washer M5
-
19250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
20570023800 Windshield LatchWindshield Latch
-
21517303629 RH Mirror. 550FRH Mirror. 550F
-
22517303630 LH Mirror. 550FLH Mirror. 550F
-
23517303692 MouldingMoulding
-
24293150103 Pop RivetPop Rivet
-
25732610072 Push NutPush Nut
-
26517302841 GrommetGrommet
-
27250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
28275500241 Cap, BlackCap, Black
-
29517303713 Console CapConsole Cap
-
30517303482 RH ConsoleRH Console
-
31241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
32517303657 Center ConsoleCenter Console
-
33517303664 Hood FoamHood Foam
-
34517303486 RH Hood FoamRH Hood Foam
-
35517303487 LH Hood FoamLH Hood Foam
-
36517302575 Console NutConsole Nut
-
37207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
38517303577 RH Side BumperRH Side Bumper
-
39415107300 InsertInsert
-
40517303578 LH Side BumperLH Side Bumper
-
41415107300 InsertInsert
-
42517303643 RH PanelRH Panel
-
43517303646 LH Panel. 300FLH Panel. 300F
-
43517303652 LH Panel. 550FLH Panel. 550F
-
44517302448 Panel LatchPanel Latch
-
45390410100 Pop Rivet 3/16”Pop Rivet 3/16”
-
46517302823 Hinge LockHinge Lock
-
47250000068 Hex Tapping Screw #8 X 5/8''Hex Tapping Screw #8 X 5/8''
