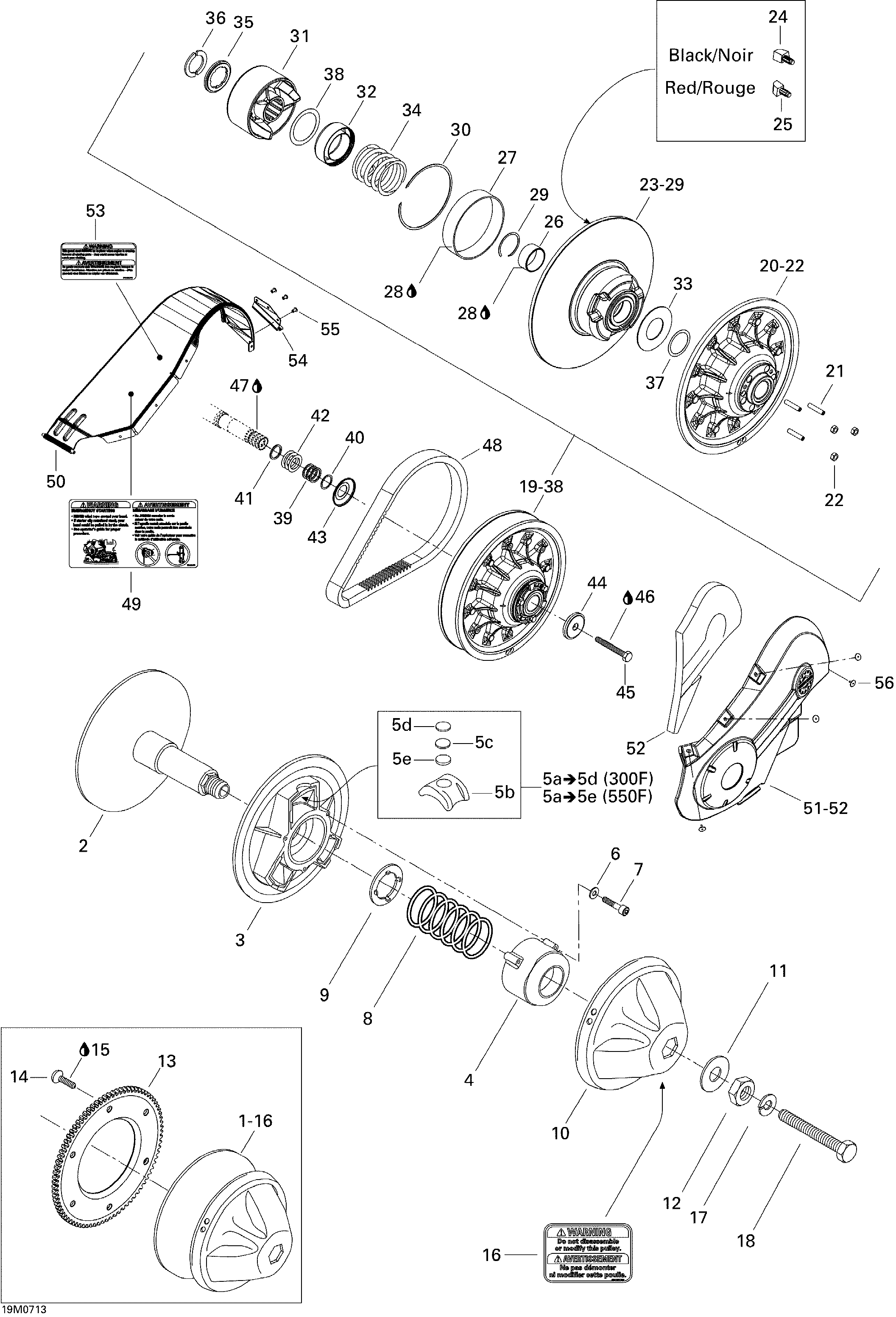

05- Pulley System 300F для BRP Lynx Adventure 300F - 2007
-
№АртикулНазвание
-
2415128601 Inner FlangeInner Flange
-
3417126692 Sliding FlangeSliding Flange
-
4415128602 Spring CoverSpring Cover
-
5a415128968 Unit. 300F, Includes 5a to 5dUnit. 300F, Includes 5a to 5d
-
5b417118100 Centrifuge BlockCentrifuge Block
-
5c417114400 Adjustment WeighAdjustment Weigh
-
5d417114500 CapsuleCapsule
-
6420245370 WasherWasher
-
7415128606 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
8415129221 Spring Violet-Pink-YellowSpring Violet-Pink-Yellow
-
9417126694 Spring SeatSpring Seat
-
10415128609 CapCap
-
11415128610 WasherWasher
-
12417118300 NutNut
-
13417300305 Ring GearRing Gear
-
14236281684 Hex Screw M8 X 16Hex Screw M8 X 16
-
15293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
16516001726 Security LabelSecurity Label
-
17392002800 Lock Spring WasherLock Spring Washer
-
18417113800 BoltBolt
-
20417127024 Fixed Flanged Ass'yFixed Flanged Ass'y
-
21206262599 Socket Set ScrewSocket Set Screw
-
22233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
23417127026 Sliding Flange Ass'ySliding Flange Ass'y
-
24417126373 Rear Cam Slider ShoeRear Cam Slider Shoe
-
25417126374 Front Cam Slider ShoeFront Cam Slider Shoe
-
26417126901 BushingBushing
-
27417126902 BushingBushing
-
28413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
29371911200 CirclipCirclip
-
30417126878 CirclipCirclip
-
31417126574 Came Ass'yCame Ass'y
-
32417126381 GuardGuard
-
33504099600 Stopper WasherStopper Washer
-
34417127061 SpringSpring
-
35417126733 SpacerSpacer
-
36417126734 Half KeyHalf Key
-
37504112300 ShimShim
-
38417126322 Swivel AbutmentSwivel Abutment
-
39417300252 SpacerSpacer
-
40417300265 SpacerSpacer
-
41417300252 SpacerSpacer
-
42504112000 ShimShim
-
43417300238 ProtectorProtector
-
44517302322 Strength WasherStrength Washer
-
45207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
46293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
47293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
48417300326 Drive BeltDrive Belt
-
49516002674 Emergency Starting LabelEmergency Starting Label
-
50417300276 Belt GuardBelt Guard
-
51417300301 Side Protector Ass'y. Includes 54 to 55Side Protector Ass'y. Includes 54 to 55
-
52417300246 FoamFoam
-
53516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
54417300216 Belt Guard BracketBelt Guard Bracket
-
55390909200 Avex RivetAvex Rivet
-
56293150103 Pop RivetPop Rivet
