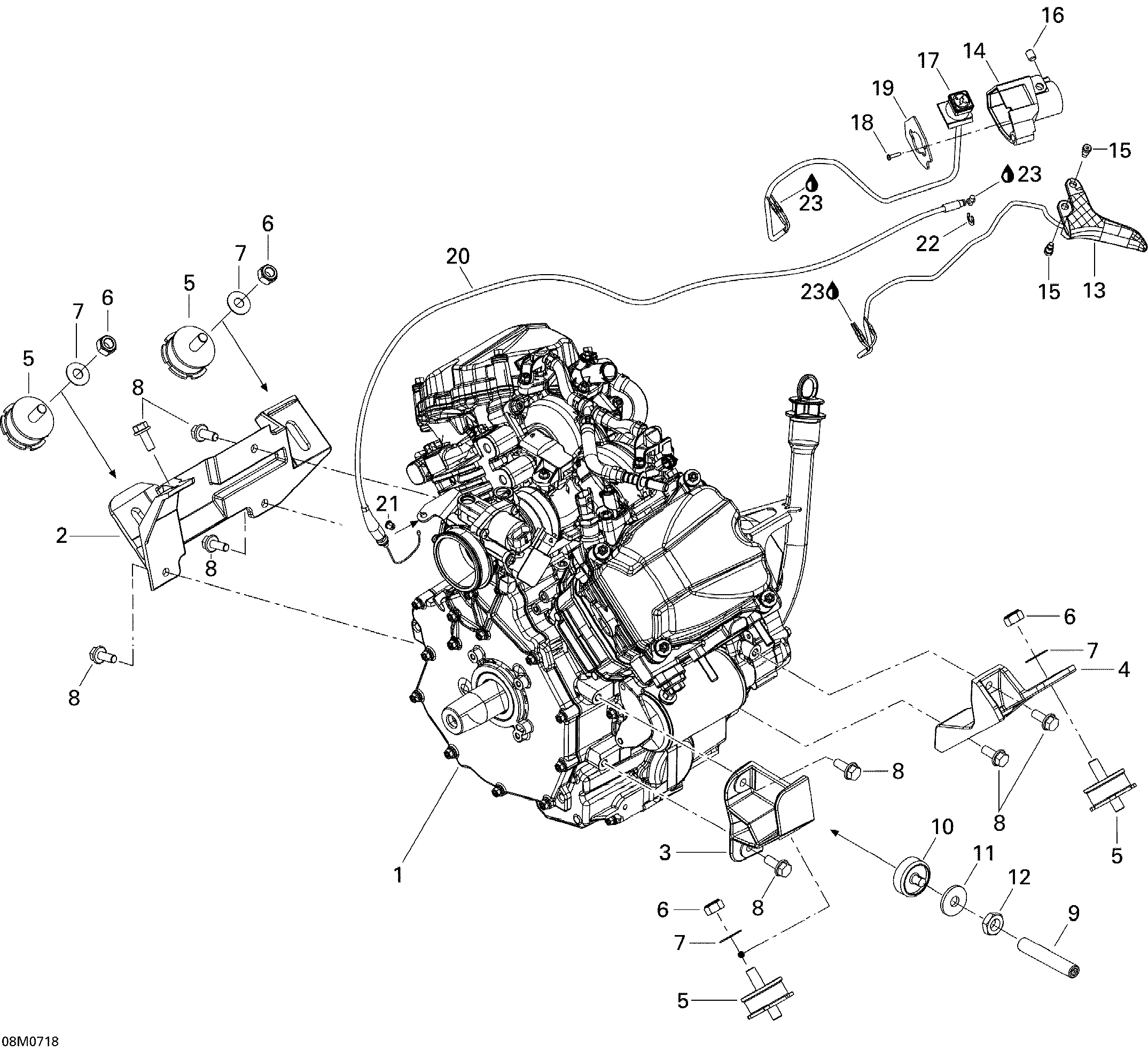

01- Engine And Engine Support для BRP Lynx Adventure V-800 - 2007
-
№АртикулНазвание
-
1400800314 Engine V810Engine V810
-
2512060076 Front Engine SupportFront Engine Support
-
3512060077 Engine Support, PTO SideEngine Support, PTO Side
-
4512060078 Engine Support, Magneto SideEngine Support, Magneto Side
-
5512059960 Rubber MountRubber Mount
-
6232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
7250200032 WasherWasher
-
8207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
9250500007 Stopper ScrewStopper Screw
-
10512059610 StopperStopper
-
11512059057 WasherWasher
-
12232170411 Hex Jam Nut M14Hex Jam Nut M14
-
13512060302 Throttle Handle Ass'yThrottle Handle Ass'y
-
14512060200 Throttle Handle HousingThrottle Handle Housing
-
15732601143 Flanged ScrewFlanged Screw
-
16414440800 Set Screw M8 X 10Set Screw M8 X 10
-
17515176091 Kill SwitchKill Switch
-
18250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
19512059507 PlatePlate
-
20512060125 Throttle CableThrottle Cable
-
21707000434 Cable GuideCable Guide
-
22414274500 CirclipCirclip
-
23293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
