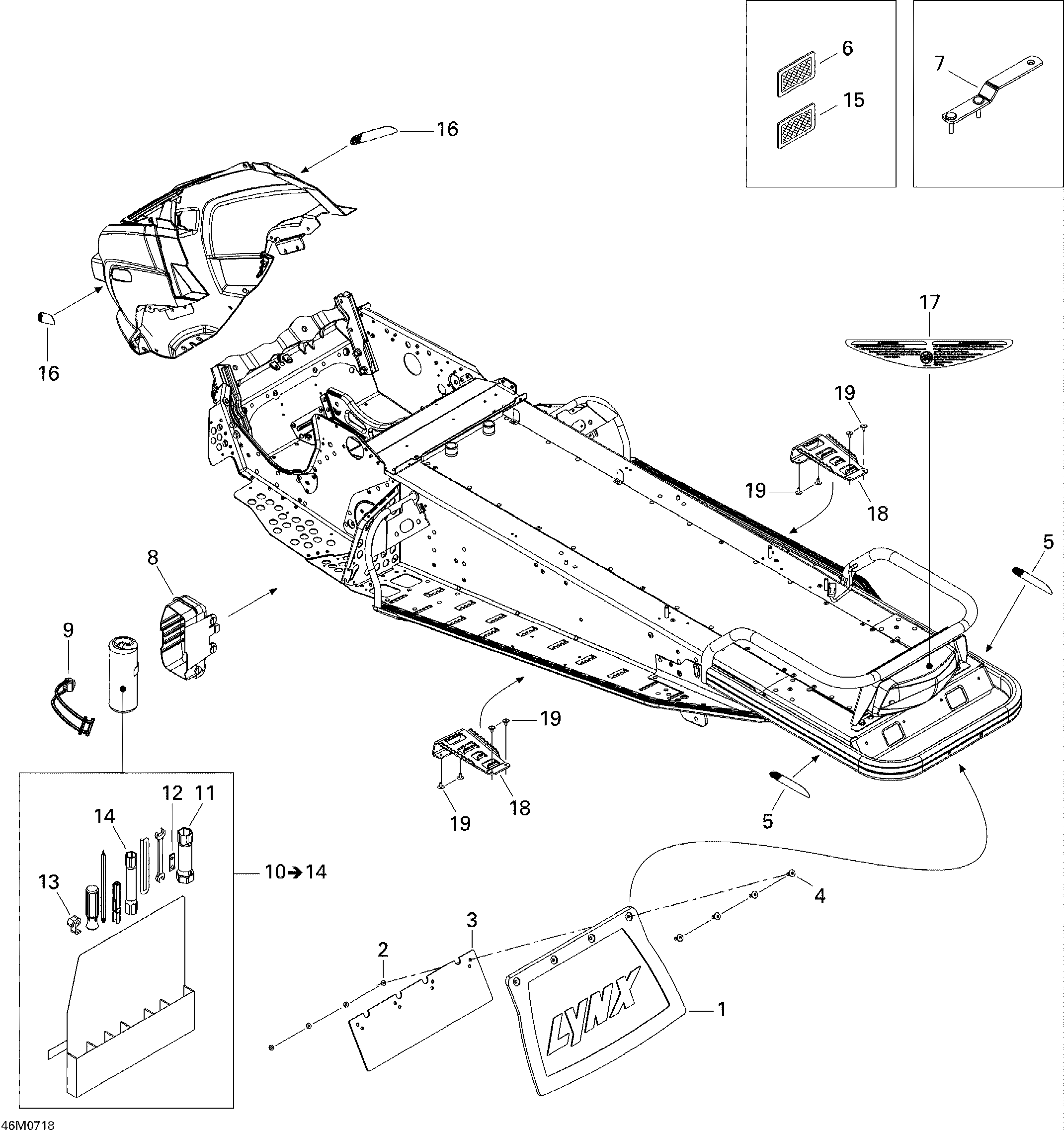

09- Utilities для BRP Lynx Adventure V-800 - 2007
-
№АртикулНазвание
-
1520000600 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3572108200 ReinforcementReinforcement
-
4293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
5520000525 ReflectorReflector
-
6520000271 Reflector, AmberReflector, Amber
-
7520000126 Adjustment WrenchAdjustment Wrench
-
8520000322 TrunkTrunk
-
9520000528 LatchLatch
-
10529000025 Tool Kit. Includes 10 to 14Tool Kit. Includes 10 to 14
-
11529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
12529024400 Rope AdaptorRope Adaptor
-
13529019400 Starter GripStarter Grip
-
14295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
15415037900 Reflector, WhiteReflector, White
-
16520000525 ReflectorReflector
-
17520000611 Security LabelSecurity Label
-
18520000492 FootrestFootrest
-
19390409600 Pop Rivet 3/16''Pop Rivet 3/16''
