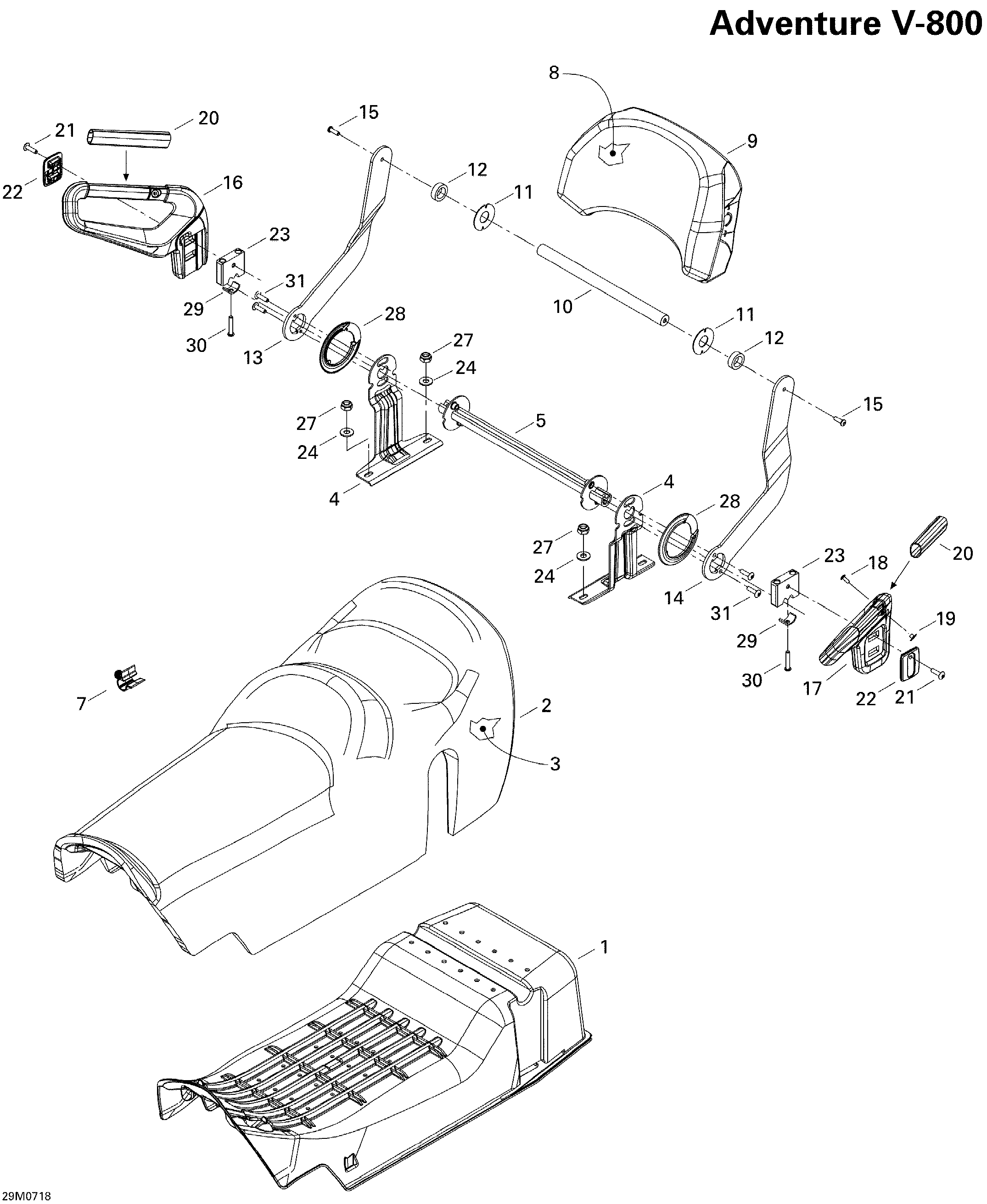

09- Seat для BRP Lynx Adventure V-800 - 2007
-
№АртикулНазвание
-
1510004668 Seat BaseSeat Base
-
2510004669 Seat CoverSeat Cover
-
3510004670 FoamFoam
-
4510004662 T PlateT Plate
-
5510004663 Cross MemberCross Member
-
7275500528 Hose RetainerHose Retainer
-
8510004365 Backrest FoamBackrest Foam
-
9510004761 Backress CoverBackress Cover
-
10510004377 Upper Backrest AxleUpper Backrest Axle
-
11510004379 WasherWasher
-
12510004378 Rubber ShimRubber Shim
-
13510004373 RH Arm, BlackRH Arm, Black
-
14510004375 LH Arm, BlackLH Arm, Black
-
15205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
16510004367 RH HandleRH Handle
-
17510004368 LH HandleLH Handle
-
18250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
19293100003 NutNut
-
20510004449 Handle GripHandle Grip
-
21250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
22510004405 MouldingMoulding
-
23510004530 Handle LinkHandle Link
-
24234082410 Flat Washer 8 mmFlat Washer 8 mm
-
27232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
28510004713 SpacerSpacer
-
29510004565 Handle ClampHandle Clamp
-
30250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
31250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
