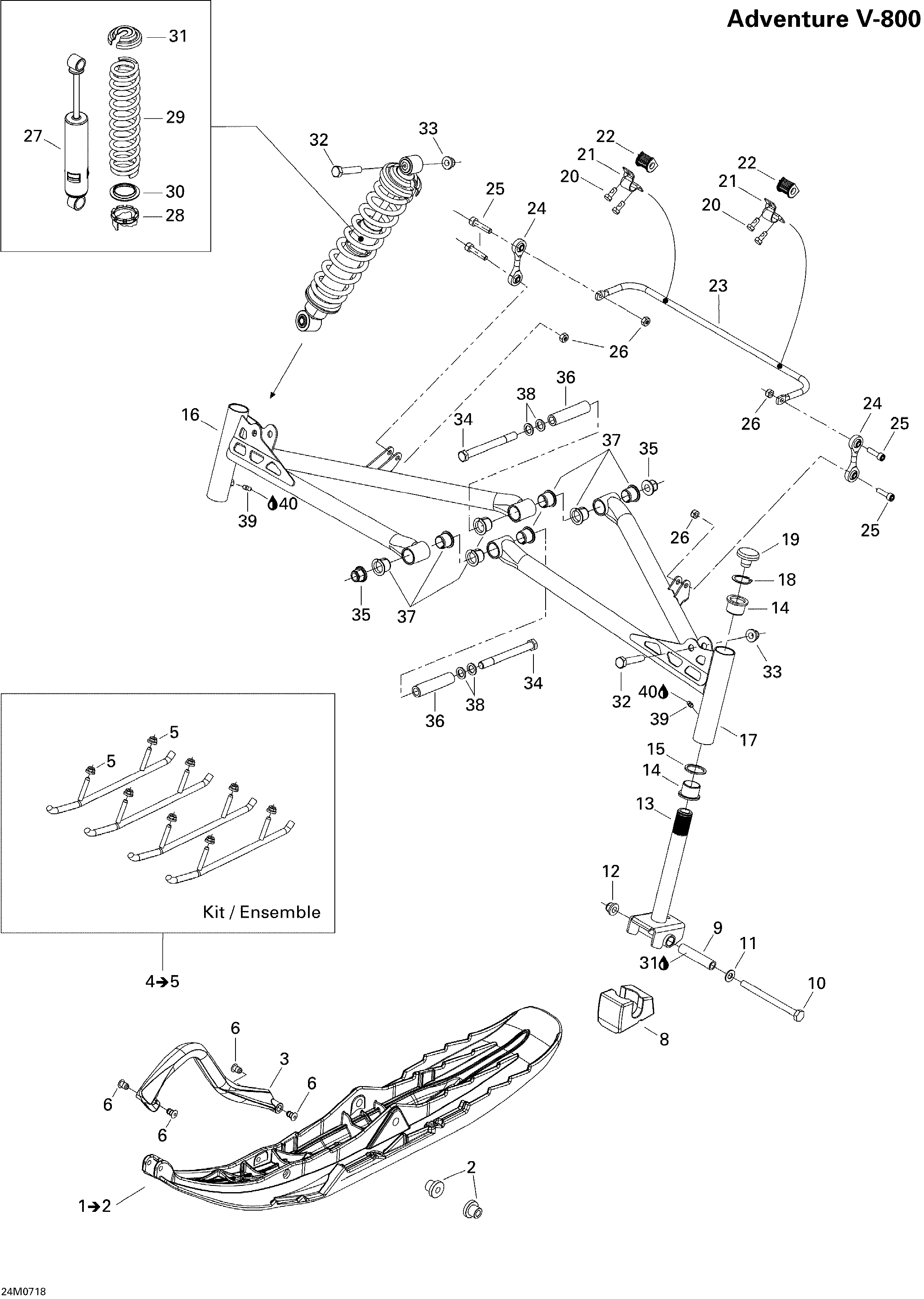

07- Front Suspension And Ski для BRP Lynx Adventure V-800 - 2007
-
№АртикулНазвание
-
1505072174 RH Pilot Ski 6.9. Includes 1 to 2RH Pilot Ski 6.9. Includes 1 to 2
-
1505072175 LH Pilot Ski 6.9. Includes 1 to 2LH Pilot Ski 6.9. Includes 1 to 2
-
2505071781 CushionCushion
-
3505070963 Handle, BlackHandle, Black
-
4860511800 Square Carbide Runner Kit. Includes 4 to 5Square Carbide Runner Kit. Includes 4 to 5
-
5233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
6505071812 RetainerRetainer
-
8505072018 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11234001410 Flat Washer 10 mmFlat Washer 10 mm
-
12233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
13505072001 Ski LegSki Leg
-
14505070003 CushionCushion
-
15505070004 WasherWasher
-
16505071739 RH Lower ArmRH Lower Arm
-
17505071740 LH Lower ArmLH Lower Arm
-
18371910400 CirclipCirclip
-
19572091300 CapCap
-
20250000281 Hexagonal Cap ScrewHexagonal Cap Screw
-
21506095800 ClampClamp
-
22505072225 Torsion BushingTorsion Bushing
-
23505072226 StabilisatorStabilisator
-
24505071479 Ball JointBall Joint
-
25205083544 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
26232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
27505071764 Front ShockFront Shock
-
28505070150 Cam 45°Cam 45°
-
29505071838 SpringSpring
-
30517184300 Spring GuideSpring Guide
-
31503140600 Spring StopperSpring Stopper
-
32207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
33233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
34230022044 Hex Screw M12 X 120Hex Screw M12 X 120
-
35233221414 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
36505071366 BushingBushing
-
37505072094 BushingBushing
-
38503189276 WasherWasher
-
39408200700 Grease FittingGrease Fitting
-
40219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
