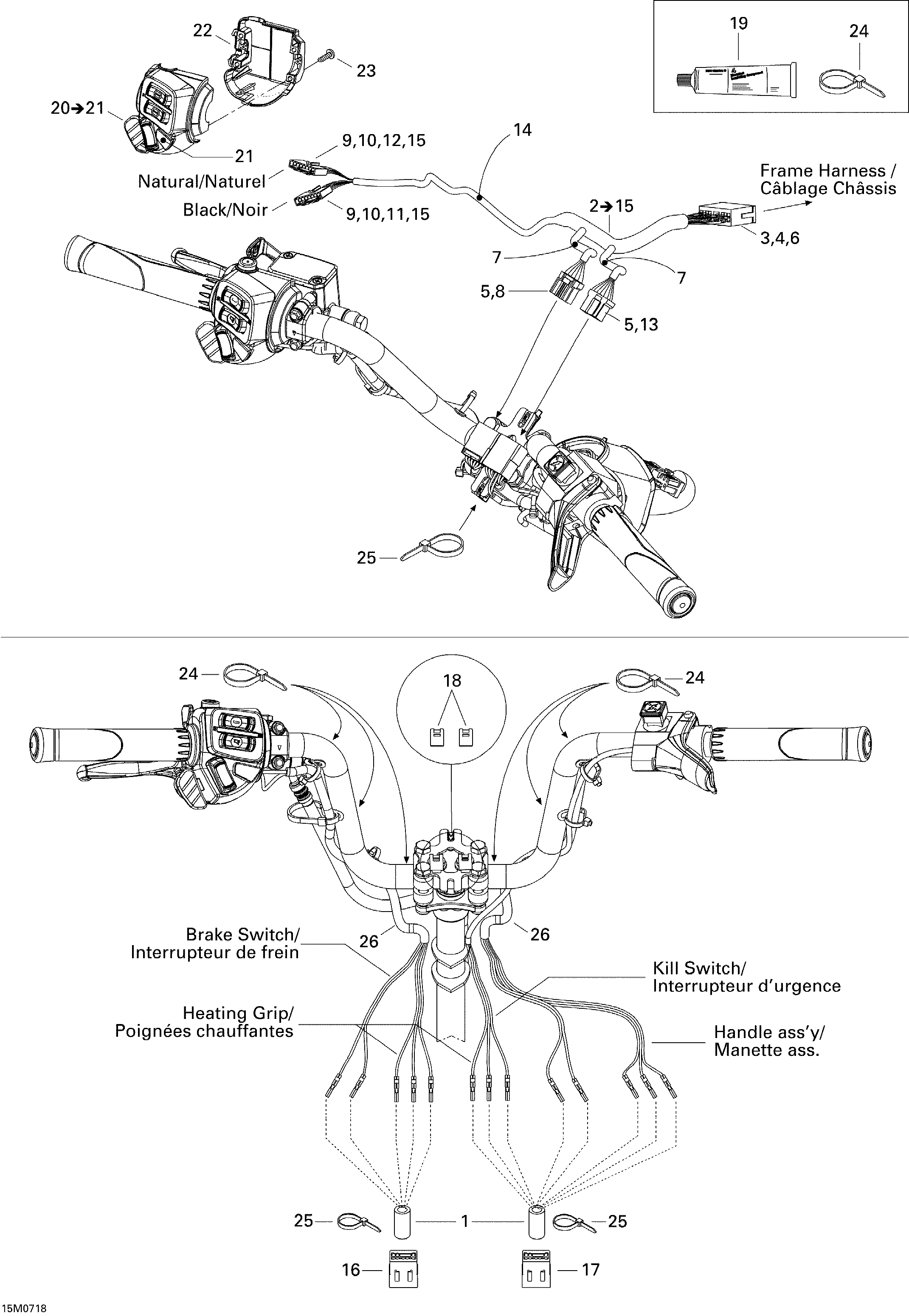

10- Steering Wiring Harness для BRP Lynx Adventure V-800 - 2007
-
№АртикулНазвание
-
1515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
2515176309 Steering Wiring Harness. Includes 2 to 15Steering Wiring Harness. Includes 2 to 15
-
3515175232 Male TerminalMale Terminal
-
4515175273 Male TerminalMale Terminal
-
5515175231 Female TerminalFemale Terminal
-
6515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
7415079900 Tubing 10 mmTubing 10 mm
-
8515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
9515175808 Female TerminalFemale Terminal
-
10515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
11515175807 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
12515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
13515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
14515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
15515175941 Female TerminalFemale Terminal
-
16515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
17515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
18515175944 Housing SupportHousing Support
-
19293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
20515175771 Switch HousingSwitch Housing
-
21515175771 Switch HousingSwitch Housing
-
22515175926 Housing Switch PlateHousing Switch Plate
-
23250000263 Torx Screw #8-18Torx Screw #8-18
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
25293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
26409902200 Tubing 25 mmTubing 25 mm
