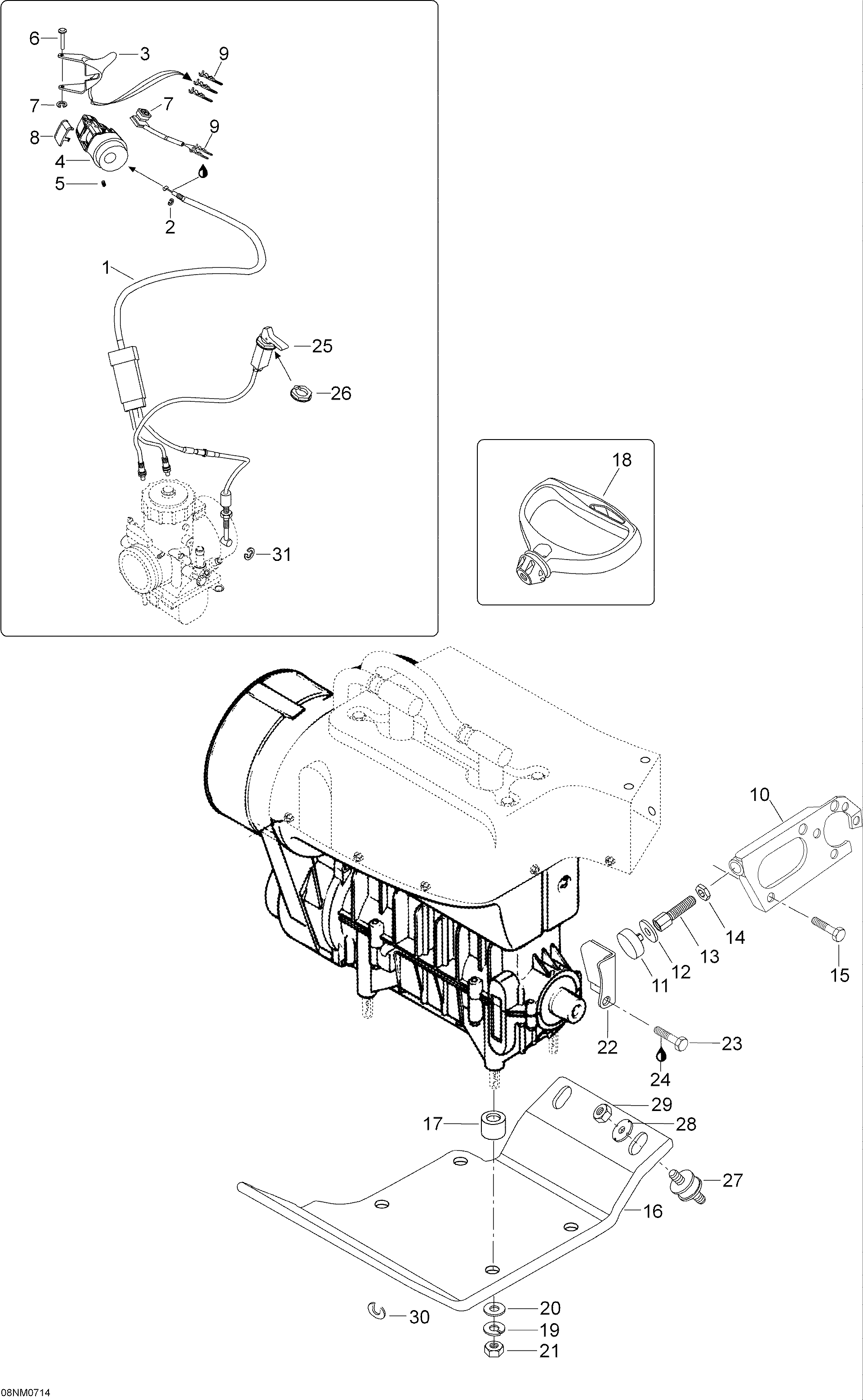

01- Engine And Engine Support для BRP Lynx Forest Fox 440 El - 2007
-
№АртикулНазвание
-
15145673 Throttle cableThrottle cable
-
231038 CirclipCirclip
-
3512059144 Throttle handleThrottle handle
-
4572100900 Throttle handle housingThrottle handle housing
-
5414438700 PinPin
-
6414439000 CirclipCirclip
-
7515175410 Emergency switchEmergency switch
-
8572100901 CoverCover
-
942603 ConnectorConnector
-
10605350127 PlatePlate
-
11512059710 StopperStopper
-
1220028 WasherWasher
-
13512058800 Stopper screwStopper screw
-
1433218 Nut M12Nut M12
-
1540327 Hex. screw M6 x 12Hex. screw M6 x 12
-
165246291 Engine mount plateEngine mount plate
-
175441582 SleeveSleeve
-
18572084400 GripGrip
-
1920047 Washer B10Washer B10
-
2020105 Washer hardened M10Washer hardened M10
-
2133004 Nut M10Nut M10
-
225344446 PlatePlate
-
2340035 Hex. screw M8 x 16Hex. screw M8 x 16
-
24293800060 Liima Loctite 243,10mlLiima Loctite 243,10ml
-
25524046 Choke cable. Includes 25 to 26Choke cable. Includes 25 to 26
-
26414977200 Plastic nutPlastic nut
-
27570127700 Rubber mountRubber mount
-
28512056700 Lock washerLock washer
-
2933012 Elastic stop nut M10Elastic stop nut M10
-
30546221 ShimShim
-
3131035 CirclipCirclip
