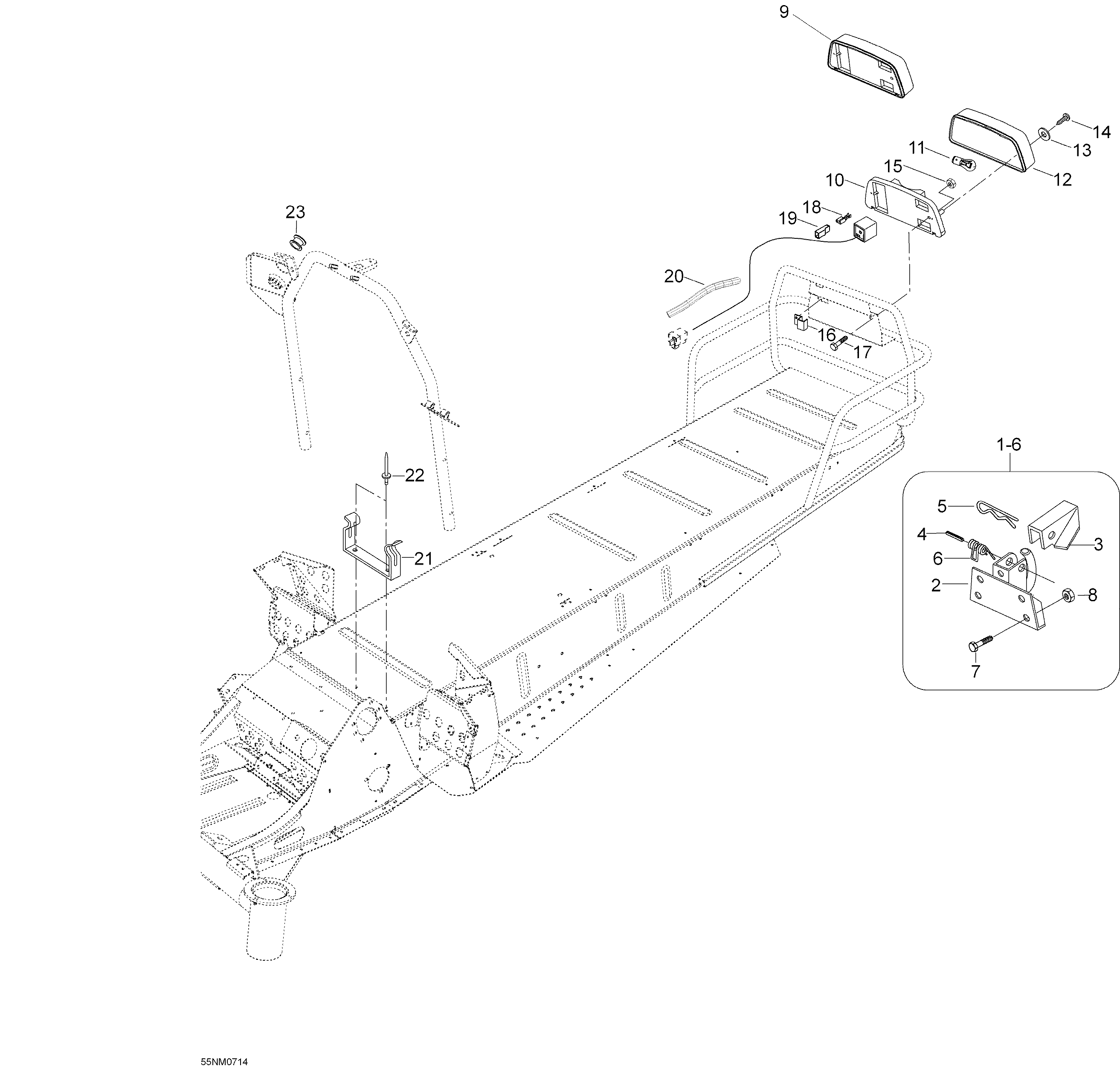

09- Frame And Components для BRP Lynx Forest Fox 440 El - 2007
-
№АртикулНазвание
-
15344156 Hitch ass'y. Includes 1 to 6Hitch ass'y. Includes 1 to 6
-
25344208 HitchHitch
-
35440767 LockLock
-
441012 Cotter pinCotter pin
-
541029 PinPin
-
6545693 SpringSpring
-
740336 Hex. screw M8 x 20Hex. screw M8 x 20
-
833011 Elastic stop nut M8Elastic stop nut M8
-
95341214 Tail lamp ass'y. Includes 9 to 15Tail lamp ass'y. Includes 9 to 15
-
10510004061 Tail lamp housingTail lamp housing
-
11410504000 BulpBulp
-
12414513700 LensLens
-
13414516400 WasherWasher
-
14414516300 ScrewScrew
-
1533200 Elastic flanged nut M6Elastic flanged nut M6
-
16605448415 CoverCover
-
1740032 Hex. screw M6 x 30Hex. screw M6 x 30
-
1842178 ConnectorConnector
-
1942179 Connector housingConnector housing
-
2039023 TubingTubing
-
215346204 ClipClip
-
2236083 RivetRivet
-
2328040 GrommetGrommet
