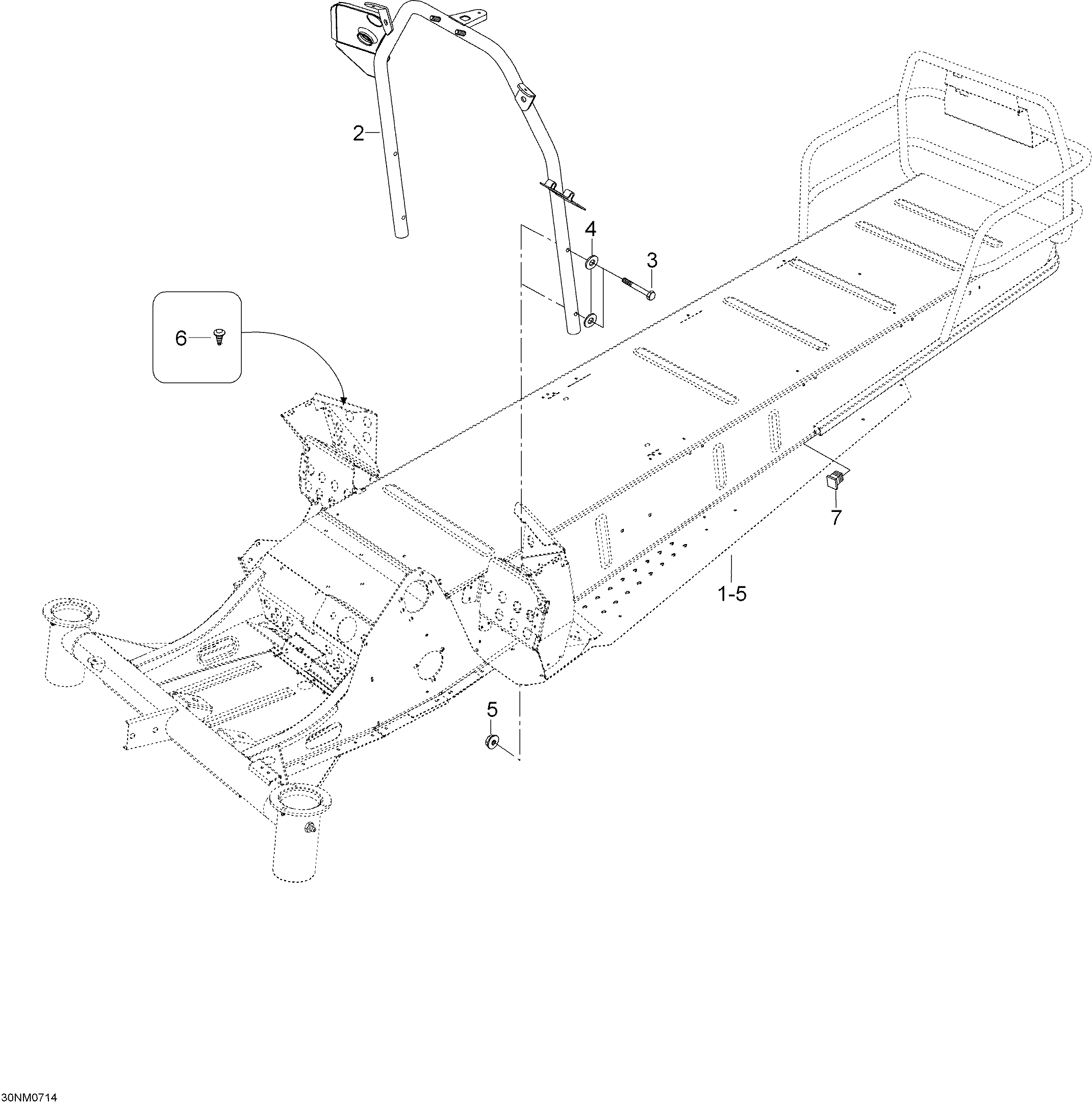

09- Frame для BRP Lynx Forest Fox 440 El - 2007
-
№АртикулНазвание
-
1605151480 Frame ass'y. Includes 1 to 5Frame ass'y. Includes 1 to 5
-
2605250274 Handle steering supportHandle steering support
-
340002 Hex. screw M6 x 40Hex. screw M6 x 40
-
420003 Washer A6,4Washer A6,4
-
533200 Elastic flanged nut M6Elastic flanged nut M6
-
6414644300 DartDart
-
728232 plugplug
