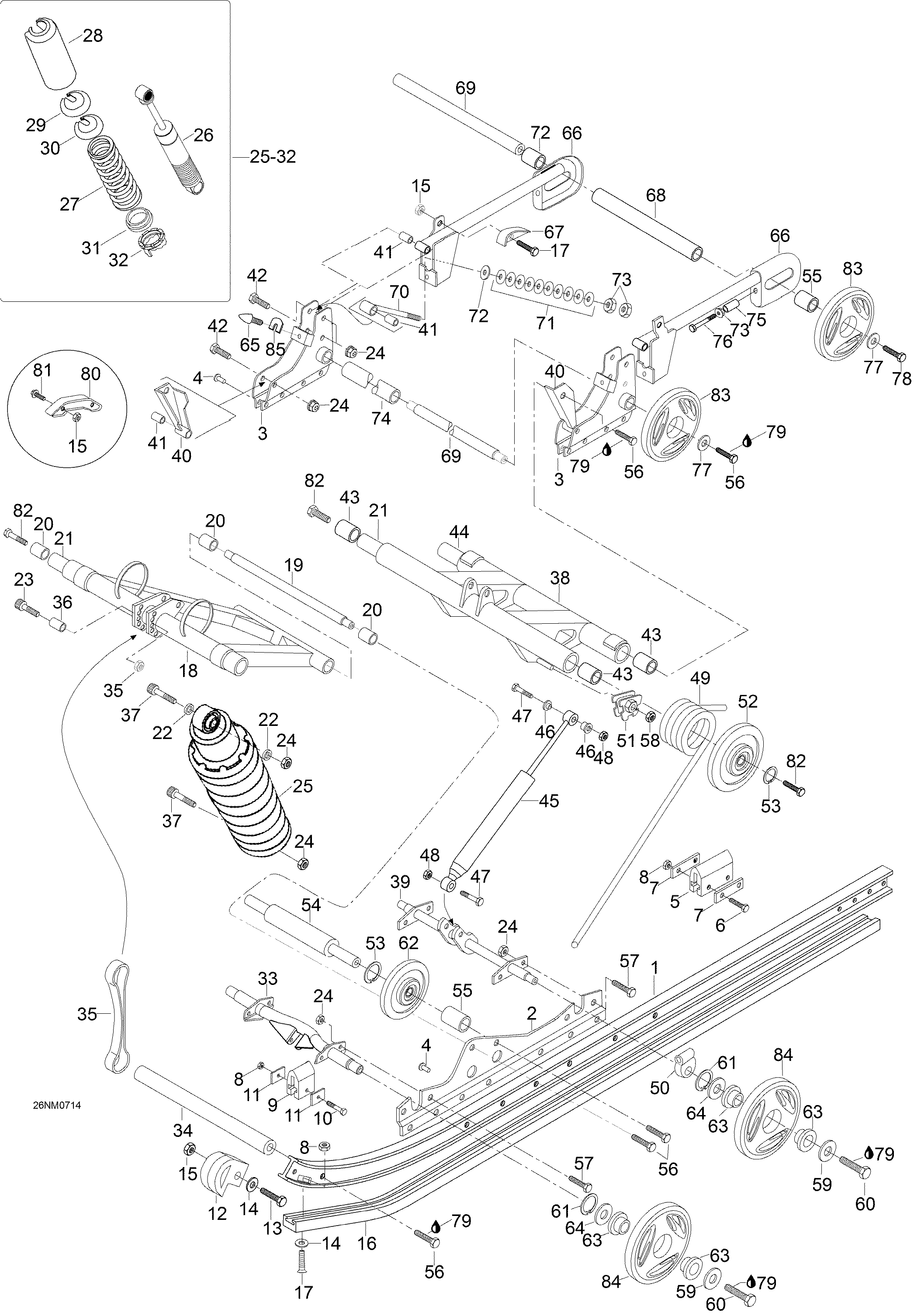

08- Rear Suspension для BRP Lynx Forest Fox 440 El - 2007
-
№АртикулНазвание
-
-605150391 R.H. Slide rail ass'y. Includes 1 to 4R.H. Slide rail ass'y. Includes 1 to 4
-
-605150390 L.H. Slide rail ass'y. Includes 1 to 4L.H. Slide rail ass'y. Includes 1 to 4
-
15142864 Slide railSlide rail
-
2605350393 R.H. Side plateR.H. Side plate
-
2605350392 L.H. Side plateL.H. Side plate
-
3539673 R.H. Extension plateR.H. Extension plate
-
3539672 L.H. Extension plateL.H. Extension plate
-
4544212 RivetRivet
-
5570023100 Rubber damperRubber damper
-
640002 Hex. screw M6 x 40Hex. screw M6 x 40
-
7548387 Support plateSupport plate
-
833010 Elastic stop nut M6Elastic stop nut M6
-
95442328 Rubber damperRubber damper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 Support plateSupport plate
-
12605348954 Slide pieceSlide piece
-
1340031 Hex. screw M6 x 25Hex. screw M6 x 25
-
1420003 WasherWasher
-
1533200 Elastic flanged nut M6Elastic flanged nut M6
-
16549582 Slide surfaceSlide surface
-
1740030 Hex. screw M6 x 20Hex. screw M6 x 20
-
18605350283 Rocker arm, frontRocker arm, front
-
19548944 Boggie shaftBoggie shaft
-
2031023 Slide BearingSlide Bearing
-
21538945 ShaftShaft
-
22605450783 SleeveSleeve
-
2340828 Socket head screw M8 x 35Socket head screw M8 x 35
-
2433011 Elastic stop nut M8Elastic stop nut M8
-
25605351968 Shock assy. Includes 25 to 32Shock assy. Includes 25 to 32
-
2623218 ShockShock
-
2725068 SpringSpring
-
28503188930 CoverCover
-
29503140600 Spring stopperSpring stopper
-
30503141600 CapCap
-
3123177001 Spring guideSpring guide
-
3223176001 CamCam
-
33605353897 ShaftShaft
-
34546599 Belt shaftBelt shaft
-
355445988 Stop beltStop belt
-
36546065 SleeveSleeve
-
3740851 Socket head screw M8 x 50Socket head screw M8 x 50
-
38605350729 Rocking frame, rearRocking frame, rear
-
39605352278 ShaftShaft
-
405440349 R.H. LeverR.H. Lever
-
405440350 L.H. LeverL.H. Lever
-
41545758 SleeveSleeve
-
4240008 Hex. screw M8 x 45Hex. screw M8 x 45
-
4331023 Slide BearingSlide Bearing
-
44548946 ShaftShaft
-
4523016 ShockShock
-
46544417 SleeveSleeve
-
4740017 Hex. screw M10 x 50Hex. screw M10 x 50
-
4833012 Nut elastic M10Nut elastic M10
-
49538805 L.H. SpringL.H. Spring
-
49538806 R.H. SpringR.H. Spring
-
50548804 Spring crank blockSpring crank block
-
51503190022 Adjustment Cam, R.H.Adjustment Cam, R.H.
-
51503190023 Adjustment Cam, L.H.Adjustment Cam, L.H.
-
52503189478 Support wheel, 165mmSupport wheel, 165mm
-
5331001 CirclipCirclip
-
545445985 Support wheel shaftSupport wheel shaft
-
555444098 SleeveSleeve
-
5640335 Hex. screw M10 x 30Hex. screw M10 x 30
-
5740035 Hex. screw M8 x 16Hex. screw M8 x 16
-
5833201 Elastic flanged nut M8Elastic flanged nut M8
-
59503183100 Washer M8, hardenedWasher M8, hardened
-
6040337 Hex. screw M8 x 16Hex. screw M8 x 16
-
6131007 CirclipCirclip
-
62503191029 Support wheel, 135mmSupport wheel, 135mm
-
63503189534 InsertInsert
-
6431091 ShimShim
-
65535455 Rubber dampperRubber dampper
-
66605251783 L.H. ExtensionL.H. Extension
-
66605251784 R.H. Extension.R.H. Extension.
-
67548262 Track guardTrack guard
-
685346739 SleeveSleeve
-
695445986 Axle, rearAxle, rear
-
705440377 Spring controllerSpring controller
-
7125004 Cop washerCop washer
-
7220011 Washer A10,5Washer A10,5
-
7333004 Nut M10Nut M10
-
74542105 SleeveSleeve
-
75605452332 SleeveSleeve
-
7640239 Hex. screw M10 x 100Hex. screw M10 x 100
-
77503183300 Washer M10, hardenedWasher M10, hardened
-
7840050 Hex. screw M10 x 35Hex. screw M10 x 35
-
79293800060 Loctite 243 10mlLoctite 243 10ml
-
805343191 Sliding partSliding part
-
8140064 Locking screw M6 x 40Locking screw M6 x 40
-
8240314 Hex. screw M10 x 30Hex. screw M10 x 30
-
83503190856 Support wheel, 165mm/Full MoonSupport wheel, 165mm/Full Moon
-
84503190797 Support wheel, 135mm/Full MoonSupport wheel, 135mm/Full Moon
-
855440645 Shim plateShim plate
