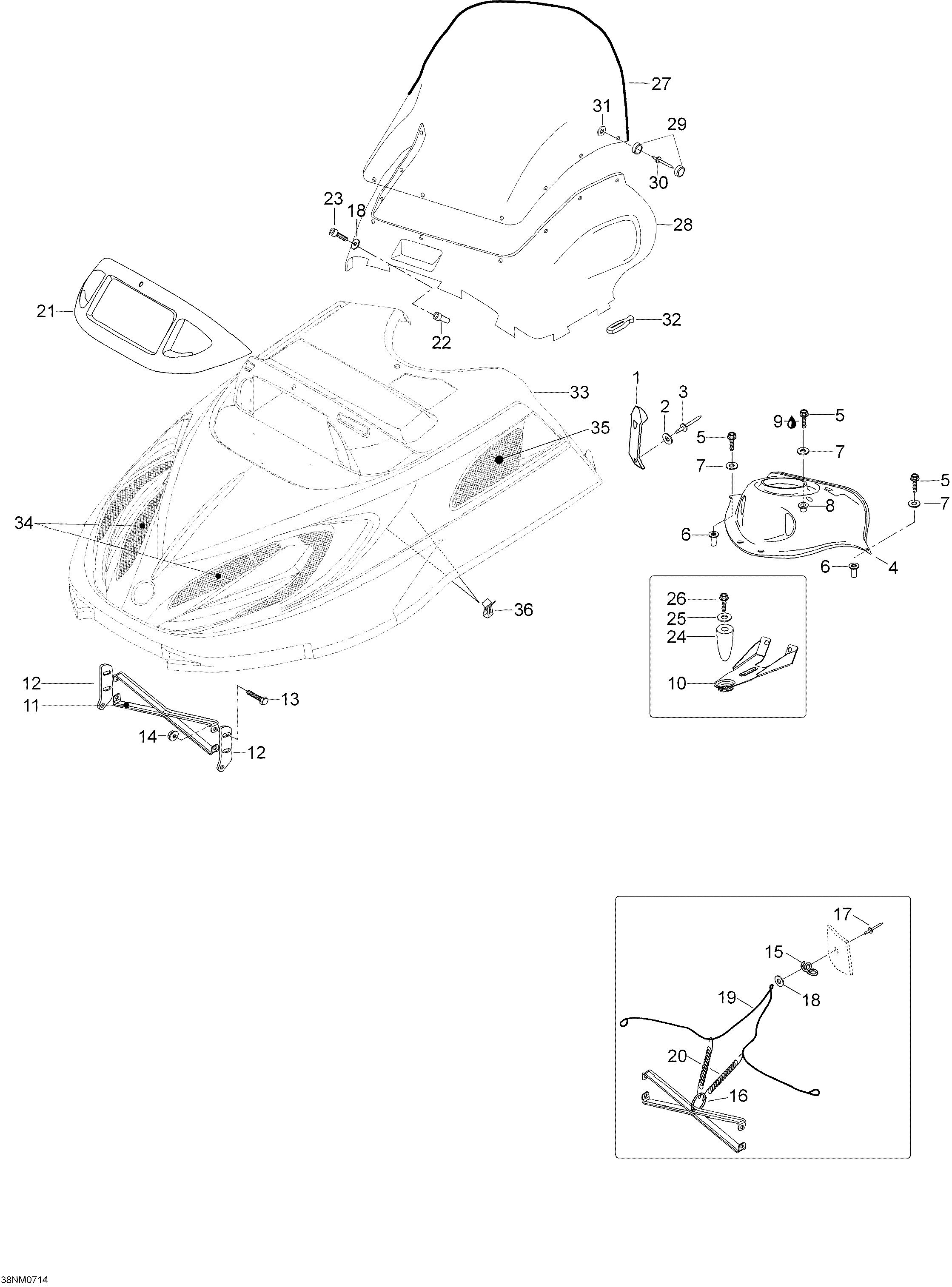

09- Hood для BRP Lynx Forest Fox 440 El - 2007
-
№АртикулНазвание
-
1570025900 Latch. Includes 1 to 2Latch. Includes 1 to 2
-
220008 Washer A5,3Washer A5,3
-
336009 RivetRivet
-
4605350277 Switch dashSwitch dash
-
5732600030 ScrewScrew
-
628055 Well-nut SWell-nut S
-
720117 WasherWasher
-
8547539 Rubber damperRubber damper
-
9293800060 Loctite 243, 10mlLoctite 243, 10ml
-
10605350221 Guide plateGuide plate
-
115246862 SupportSupport
-
12517261100 HingeHinge
-
1340366 Hex. screw M5 x 16Hex. screw M5 x 16
-
1433062 Elastic flanged nut M5Elastic flanged nut M5
-
155442870 Retainer cable clipRetainer cable clip
-
16415058300 RingRing
-
1736005 RivetRivet
-
1820008 Washer A5,3Washer A5,3
-
19605351372 Retainer cableRetainer cable
-
205442675 SpringSpring
-
21572079200 Lamp moldingLamp molding
-
2228050 Well-nutWell-nut
-
2340808 Screw M5 x 30Screw M5 x 30
-
245446857 Guide pinGuide pin
-
2520038 WasherWasher
-
2640375 LVI-screw 6,3 x 25LVI-screw 6,3 x 25
-
27539504 WindshieldWindshield
-
28605252350 Windshield lower partWindshield lower part
-
29282000 CapCap
-
3036002 RivetRivet
-
3120062 Washer A4,3Washer A4,3
-
32570023800 Windshield latchWindshield latch
-
33605152677 Hood, Velvet Blue. Includes 33 to 35Hood, Velvet Blue. Includes 33 to 35
-
345246261 R.H. grillR.H. grill
-
345246262 L.H. grillL.H. grill
-
355346263 L.H. grillL.H. grill
-
355347250 R.H. grillR.H. grill
-
36414227300 ClipClip
