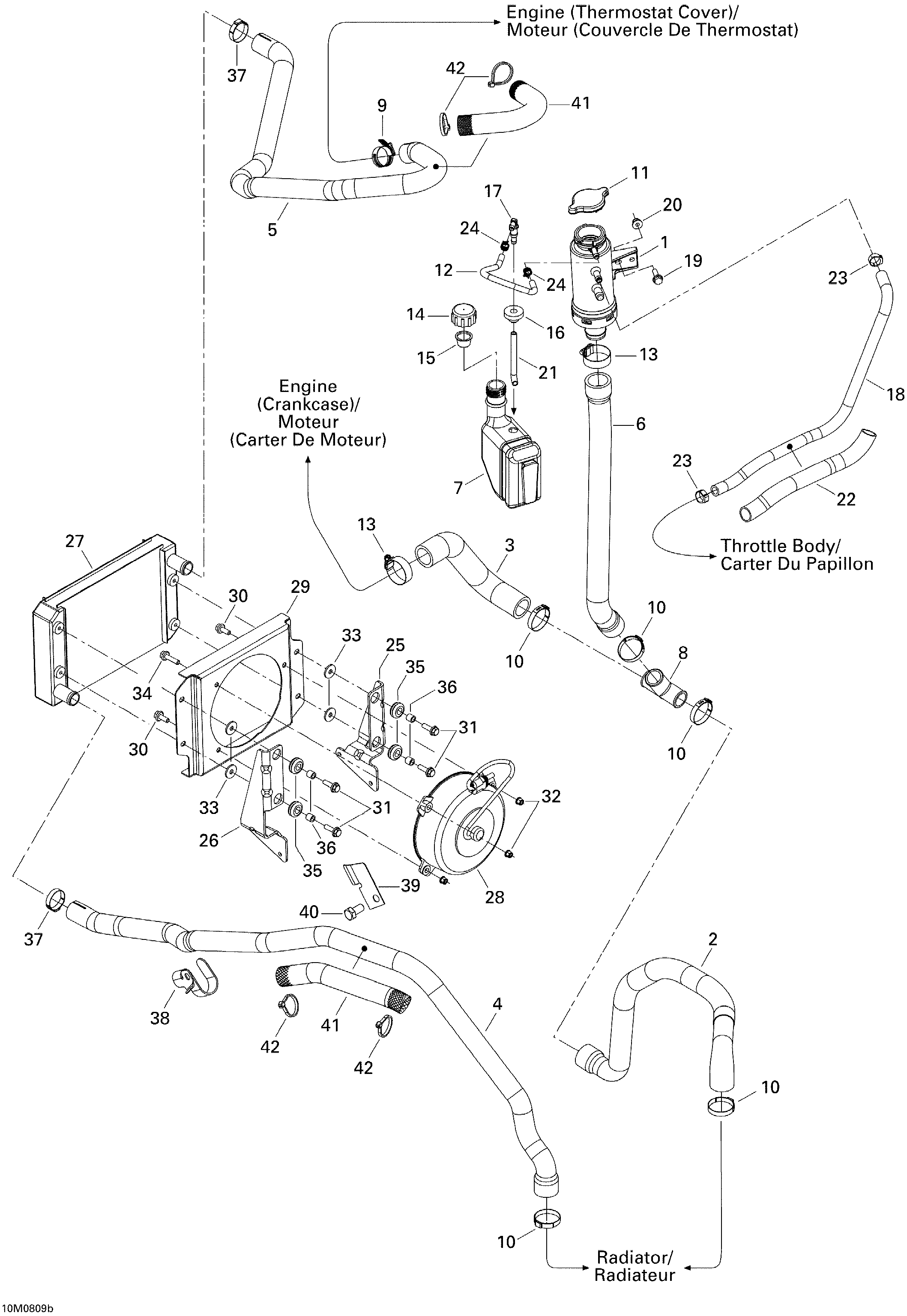

01- Cooling System Ranger для BRP Lynx Ranger V-800 - 2008
-
№АртикулНазвание
-
1509000176 Filler Neck Ass'yFiller Neck Ass'y
-
2509000364 T-Fitting HoseT-Fitting Hose
-
3509000365 Pump Inlet HosePump Inlet Hose
-
4509000481 Exit HoseExit Hose
-
5509000482 Entry HoseEntry Hose
-
6509000367 Coolant Tank HoseCoolant Tank Hose
-
7709200099 Coolant TankCoolant Tank
-
8509000219 T-FittingT-Fitting
-
9293650019 Tridon ClampTridon Clamp
-
10509000045 Oetiker Gear ClampOetiker Gear Clamp
-
11509000187 Pressure CapPressure Cap
-
12415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
13408800400 Tridon Gear ClampTridon Gear Clamp
-
14709200009 Tank CapTank Cap
-
15709200205 Protection CapProtection Cap
-
16570135100 GrommetGrommet
-
17414580600 Male ConnectorMale Connector
-
18509000407 Hose 8 mmHose 8 mm
-
19207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
22415080000 Tubing 16 mmTubing 16 mm
-
23293650140 Oetiker ClampOetiker Clamp
-
24414554800 Spring ClampSpring Clamp
-
25509000483 RH SupportRH Support
-
26509000484 LH SupportLH Support
-
27509000488 RadiatorRadiator
-
28709200173 FanFan
-
29509000487 Fan SupportFan Support
-
30207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
31207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33224061201 Flat WasherFlat Washer
-
34207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
35293720053 GrommetGrommet
-
36293900045 BushingBushing
-
37293650099 Oetiker Gear ClampOetiker Gear Clamp
-
38509000494 SupportSupport
-
39509000496 ProtectorProtector
-
40207302044 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
41509000513 Protector Tube 32 mmProtector Tube 32 mm
-
42293750002 Tie-Rap 130 mmTie-Rap 130 mm
