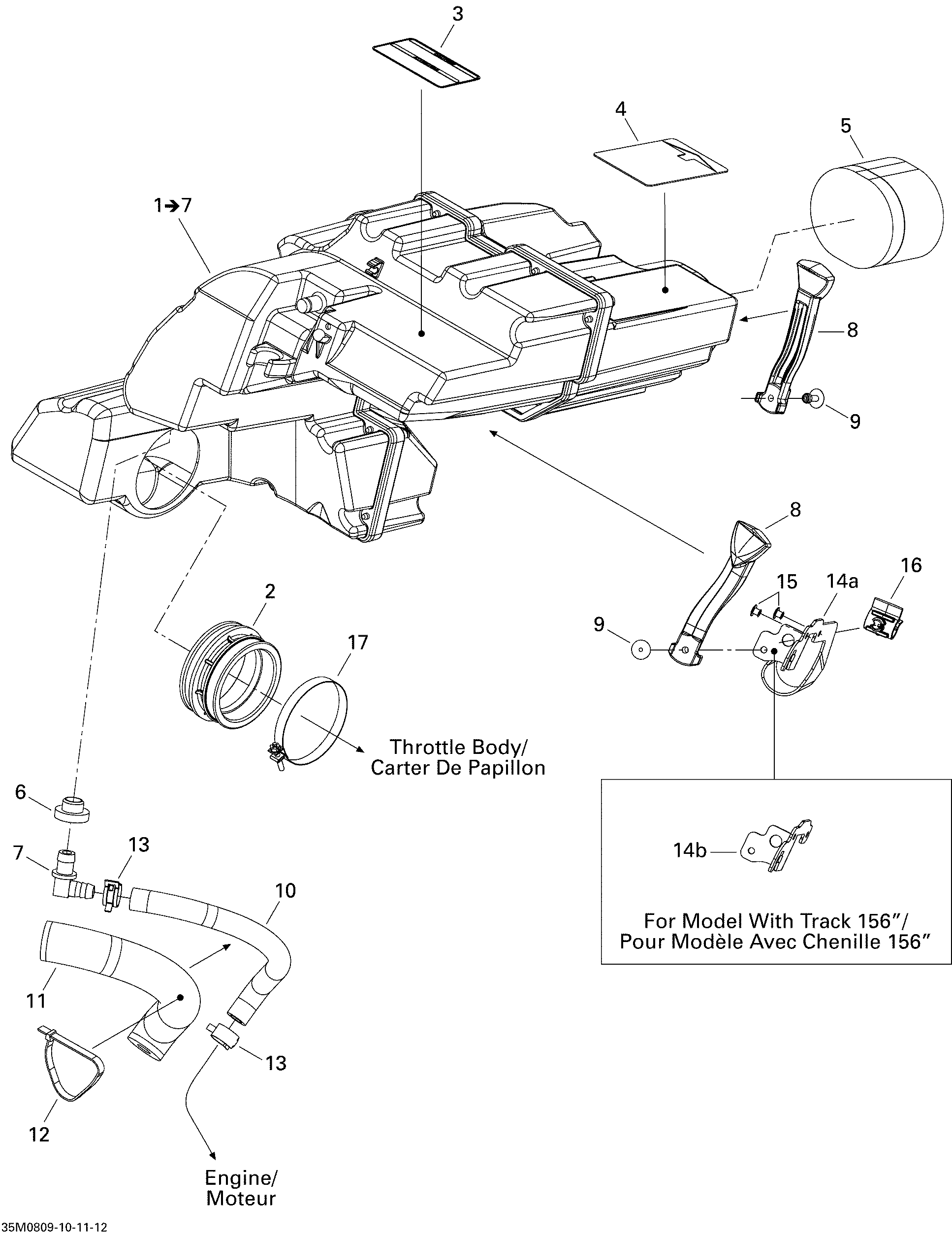

02- Air Intake System RANGER для BRP Lynx Ranger V-800 - 2008
-
№АртикулНазвание
-
1508000579 Air Intake Silencer Ass'y. Includes 1 to 7Air Intake Silencer Ass'y. Includes 1 to 7
-
2508000491 Air Intake AdaptorAir Intake Adaptor
-
3516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
4516003292 Warning LabelWarning Label
-
5508000508 Air FilterAir Filter
-
6570273900 GrommetGrommet
-
7414523600 Elbow FittingElbow Fitting
-
8517302448 Panel LatchPanel Latch
-
9293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
10508000578 Crankase Vent HoseCrankase Vent Hose
-
11508000582 Insulating TubeInsulating Tube
-
12509000165 Tie RapTie Rap
-
13293650110 Norma ClampNorma Clamp
-
14b509000495 Support. RangerSupport. Ranger
-
15390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
16275500528 Hose RetainerHose Retainer
-
17508000346 Gemi ClampGemi Clamp
