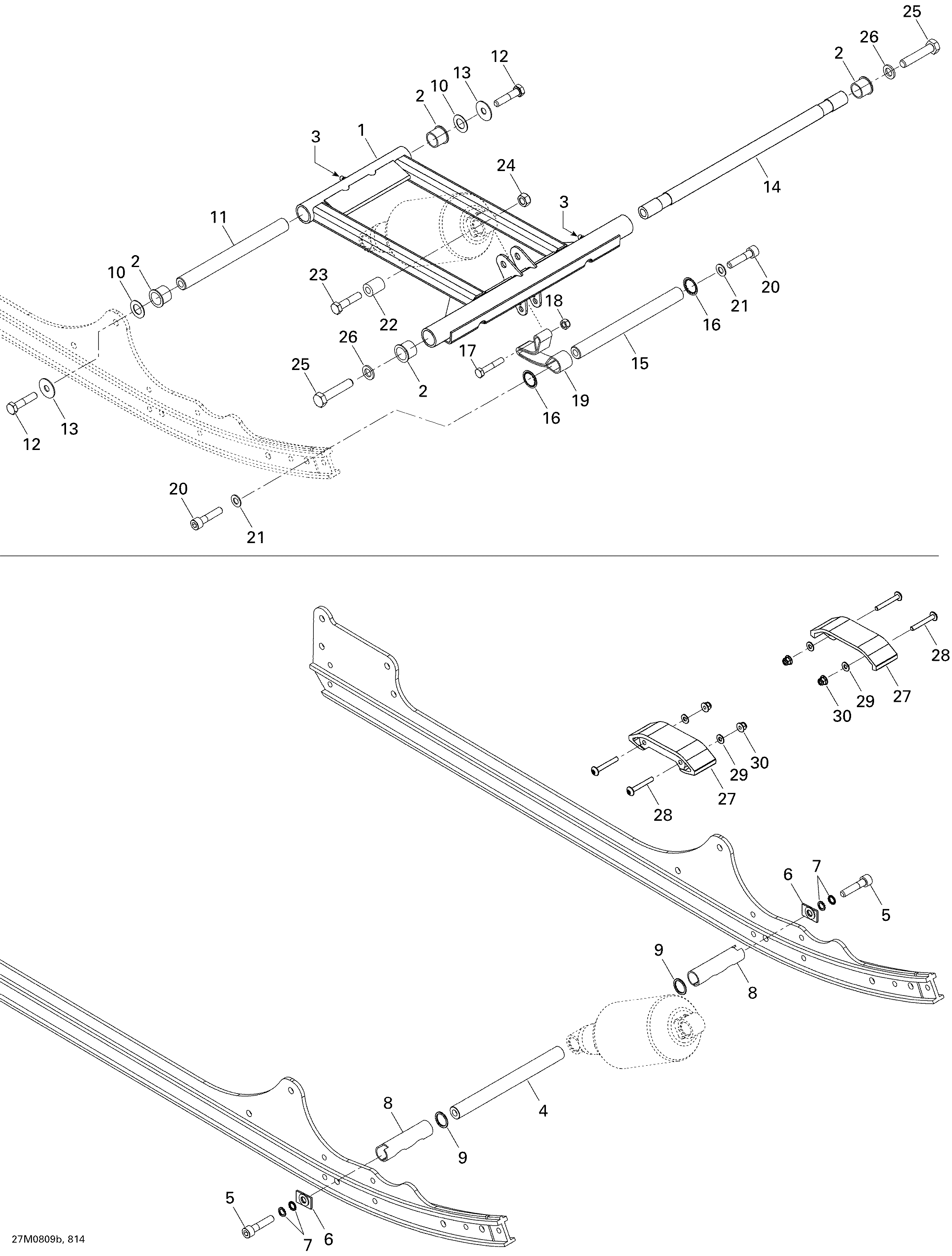

08- Front Arm Ranger для BRP Lynx Ranger V-800 - 2008
-
№АртикулНазвание
-
1M5145588 Front ArmFront Arm
-
2M31024 Slide BearingSlide Bearing
-
3M34011 Grease FittingGrease Fitting
-
4M5347633 Shock ShaftShock Shaft
-
5M40536 Allen Screw M10 X 45Allen Screw M10 X 45
-
6M5447940 Support PlateSupport Plate
-
7M20068 Lock WasherLock Washer
-
8M5346649 SleeveSleeve
-
9M31013 ShimShim
-
10M20116 WasherWasher
-
11M5346900 ShaftShaft
-
12207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
13512056700 Lock WasherLock Washer
-
14M5346135 ShaftShaft
-
15M5343471 ShaftShaft
-
16M4181158 WasherWasher
-
17207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
18232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
19M5447919 Stopper StrapStopper Strap
-
20M40134 Allen Screw M10 X 45Allen Screw M10 X 45
-
21M20105 WasherWasher
-
22M5446652 SleeveSleeve
-
23207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
26503189148 WasherWasher
-
275343191 Sliding PadSliding Pad
-
28250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
29224061121 Flat WasherFlat Washer
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
