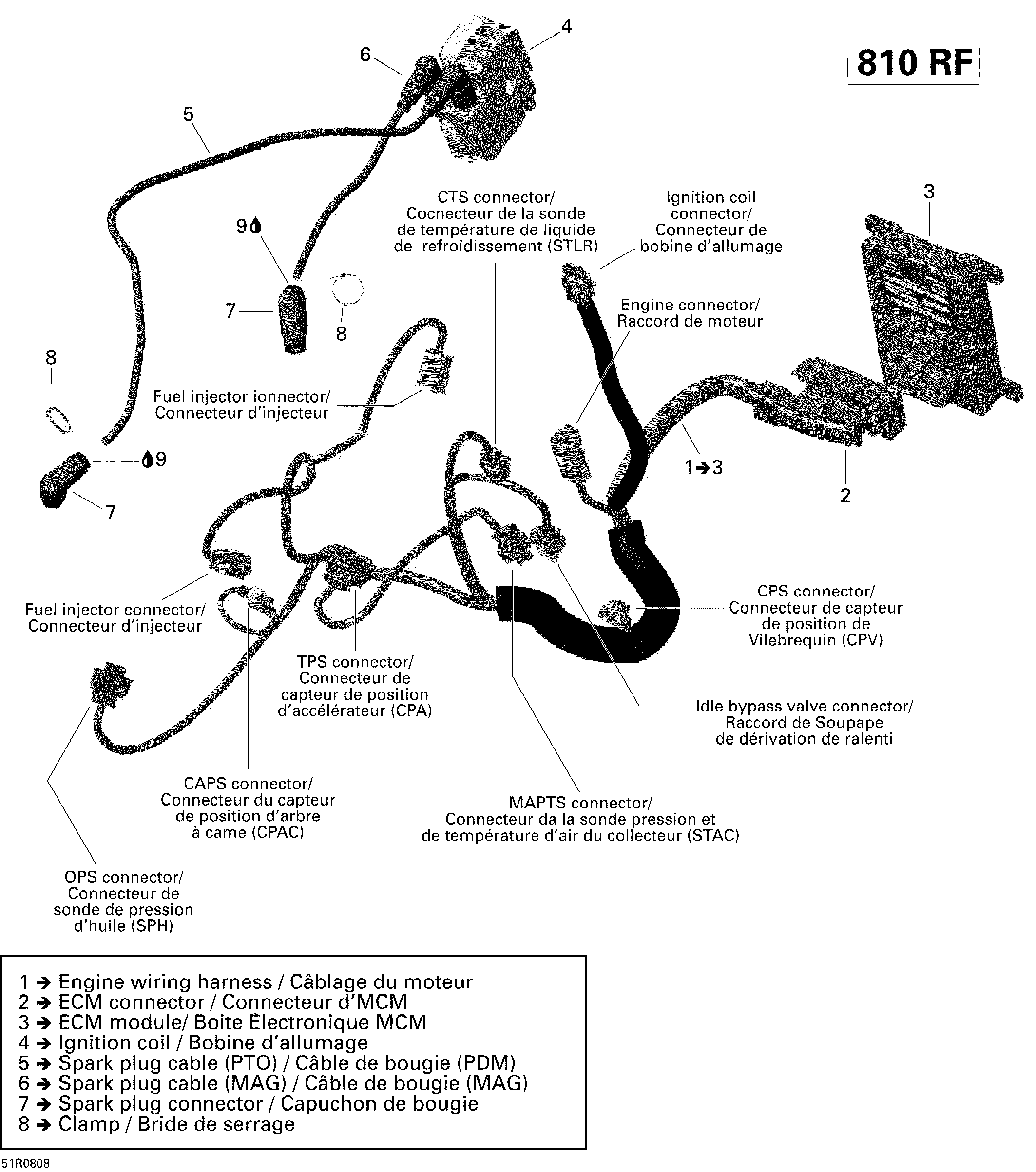

10- Engine Harness And Electronic Module для BRP Lynx Ranger V-800 - 2008
-
№АртикулНазвание
-
1420665245 Engine Wiring Harness Ass'y. Includes 1 - 2Engine Wiring Harness Ass'y. Includes 1 - 2
-
2420664450 ECM ConnectorECM Connector
-
3420665911 ECM, Engine Control ModuleECM, Engine Control Module
-
4278001546 Ignition CoilIgnition Coil
-
5420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
6420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
7420265240 Spark Plug ConnectorSpark Plug Connector
-
8420866710 ClampClamp
-
9293550030 Grease, Super LubeGrease, Super Lube
