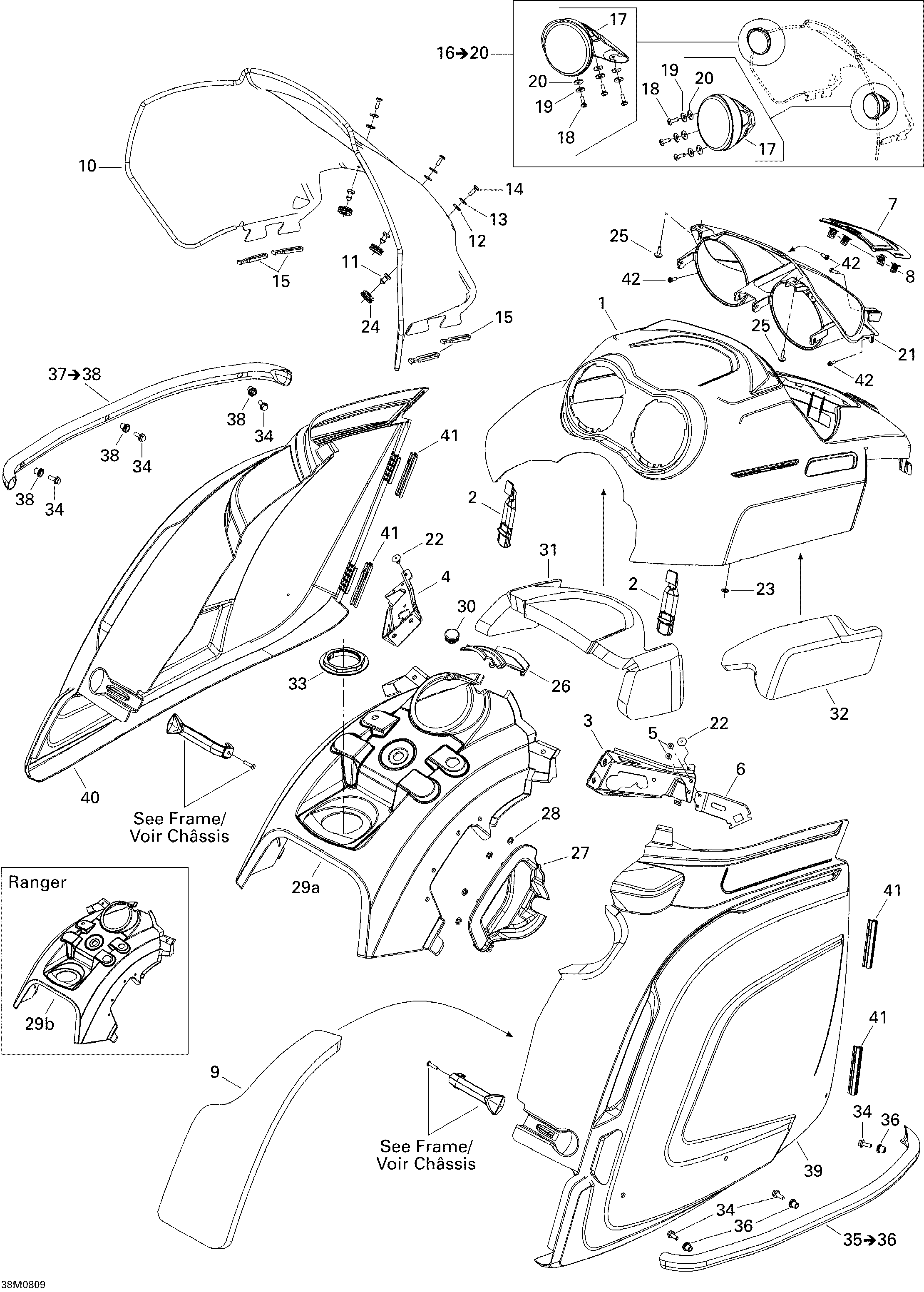

09- Hood RANGER для BRP Lynx Ranger V-800 - 2008
-
№АртикулНазвание
-
1517303655 HoodHood
-
2517303518 LatchLatch
-
3517303662 RH BracketRH Bracket
-
4517303663 LH BracketLH Bracket
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517303517 BracketBracket
-
7517303331 Center Hood GrillCenter Hood Grill
-
8517302785 ClipClip
-
9517303457 RH Panel Foam, RearRH Panel Foam, Rear
-
10517303440 Windshield, HighWindshield, High
-
11517303439 KnobKnob
-
12250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
13250200025 Washer M5Washer M5
-
14250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
15570023800 Windshield LatchWindshield Latch
-
16517303955 Mirror Kit. Includes 16 to 20Mirror Kit. Includes 16 to 20
-
17605255351 RH Mirror And LH MirrorRH Mirror And LH Mirror
-
18250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
19250200025 Washer M5Washer M5
-
20250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
21517303692 MouldingMoulding
-
22293150103 Pop RivetPop Rivet
-
23732610072 Push NutPush Nut
-
24517302841 GrommetGrommet
-
25250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
26517303713 Console CapConsole Cap
-
27517303589 RH ConsoleRH Console
-
28732610072 Push NutPush Nut
-
29b517303884 Center Console. RangerCenter Console. Ranger
-
30706200474 CapCap
-
31517303664 Hood FoamHood Foam
-
32517303486 RH Hood FoamRH Hood Foam
-
33517302575 Console NutConsole Nut
-
34207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
35517303577 RH Side Bumper. Includes 35 to 36RH Side Bumper. Includes 35 to 36
-
36415107300 InsertInsert
-
37517303578 LH Side Bumper. Includes 37 to 38LH Side Bumper. Includes 37 to 38
-
38415107300 InsertInsert
-
39517303643 RH PanelRH Panel
-
40517303642 LH PanelLH Panel
-
41517302823 Hinge LockHinge Lock
-
42250000068 Hex. Tapping Screw #8 X 5/8''Hex. Tapping Screw #8 X 5/8''
