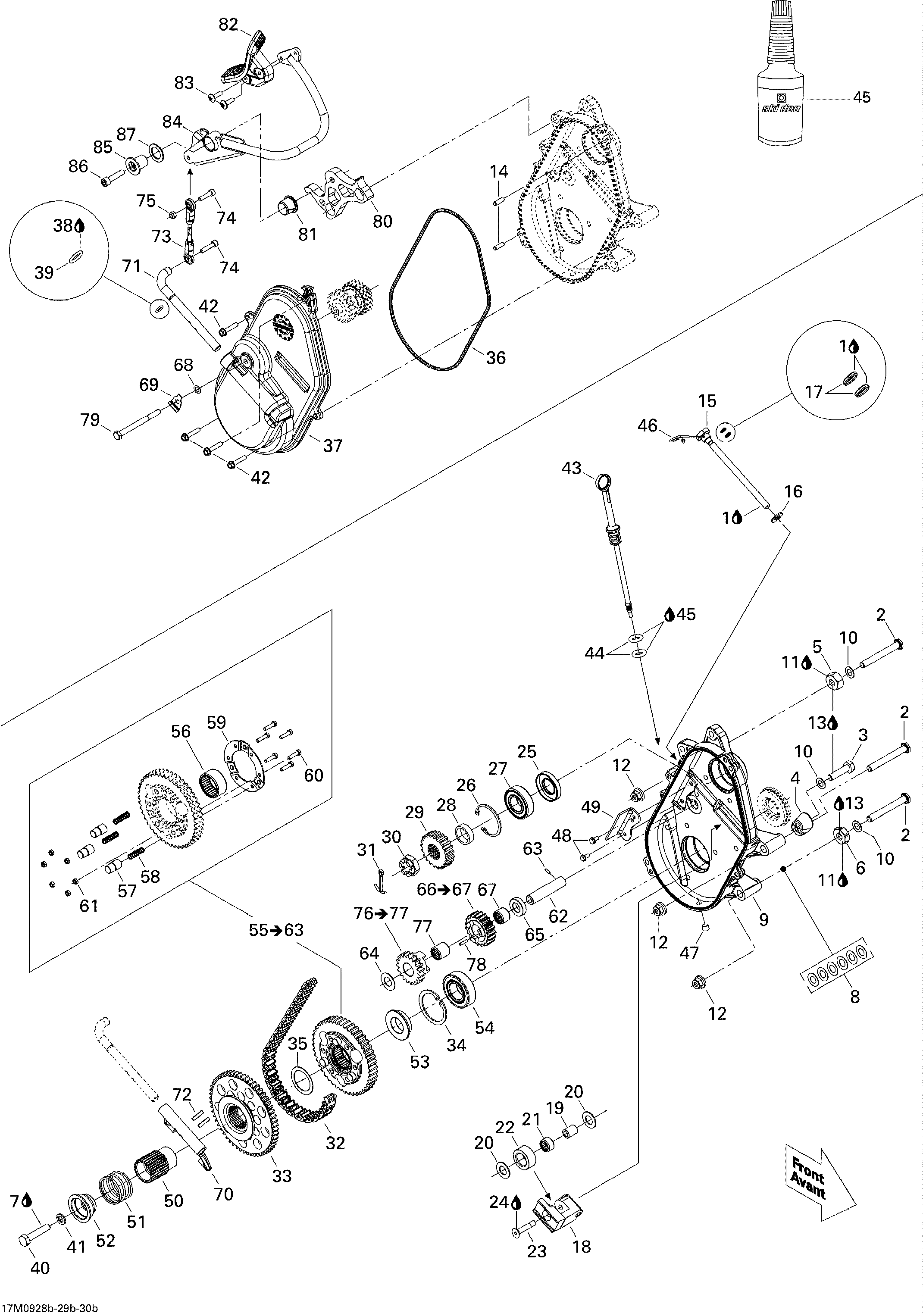

05- Drive System 2 для BRP Lynx Adventure V-800 - 2009
-
№АртикулНазвание
-
1219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
2250000151 Hex. Screw M10 X 80Hex. Screw M10 X 80
-
3207104044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
4504152252 SpacerSpacer
-
5504083800 SpacerSpacer
-
6504152237 SpacerSpacer
-
7293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
8504073700 WasherWasher
-
9504152064 ChaincaseChaincase
-
10503175800 WasherWasher
-
11293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
12233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14732620001 Cylinder PinCylinder Pin
-
15732601314 Adjustment ScrewAdjustment Screw
-
16234001410 Flat Washer 10 mmFlat Washer 10 mm
-
17414484400 O-RingO-Ring
-
18504151951 Chain TensionerChain Tensioner
-
19504080200 SpacerSpacer
-
20504080300 WasherWasher
-
21405403000 Needle BearingNeedle Bearing
-
22414531300 RollerRoller
-
23732601144 ScrewScrew
-
24293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
25504151927 SealSeal
-
26371901700 CirclipCirclip
-
27293350055 Ball BearingBall Bearing
-
28504147200 ShimShim
-
29504152031 Sprocket, 19 Teeth. AdventureSprocket, 19 Teeth. Adventure
-
30250000012 Hex. Castle Nut M20 X 1.5Hex. Castle Nut M20 X 1.5
-
31371006300 Pin CotterPin Cotter
-
32504151857 Drive Chain, 74 Links. AdventureDrive Chain, 74 Links. Adventure
-
33504096800 Sliding Gear, 56 TeethSliding Gear, 56 Teeth
-
34415064300 Circlip, InteriorCirclip, Interior
-
35504094300 WasherWasher
-
36415046400 O-RingO-Ring
-
37504151845 CoverCover
-
38219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
39414773200 O-RingO-Ring
-
40207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
41234100602 Lock Spring Washer M10Lock Spring Washer M10
-
42210263080 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
43504151750 Filler Cap Ass’YFiller Cap Ass’Y
-
44414969400 O-RingO-Ring
-
45413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
46414575600 Hair PinHair Pin
-
47504151921 Plug 1/8”-27Plug 1/8”-27
-
48210251180 Hex. Flanged Screw M5 X 10Hex. Flanged Screw M5 X 10
-
49504152036 Slider ChainSlider Chain
-
50504097700 Coupling AxleCoupling Axle
-
51504096600 Release SpringRelease Spring
-
52504151964 CapCap
-
53504076300 Retaining RingRetaining Ring
-
54504152005 Ball BearingBall Bearing
-
55581096800 Sprock Assy, 44 Teeth. Includes 55 to 63Sprock Assy, 44 Teeth. Includes 55 to 63
-
56293350063 Needle BearingNeedle Bearing
-
57504076800 Drive PinDrive Pin
-
58414772700 SpringSpring
-
59504076100 Retainer RingRetainer Ring
-
60207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
61233551416 Lock Spring Washer M5Lock Spring Washer M5
-
62504083100 Reverse ShaftReverse Shaft
-
63250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
64504077300 SpacerSpacer
-
65504078700 RingRing
-
66581096900 Sprock Ass., 19 Teeth. Includes 66 to 67Sprock Ass., 19 Teeth. Includes 66 to 67
-
67293350064 Needle BearingNeedle Bearing
-
68504082900 WasherWasher
-
69504087700 Tab LockTab Lock
-
70504075800 ForkFork
-
71504152367 Fork AxleFork Axle
-
72414772500 Spring PinSpring Pin
-
73504152783 Ball JointBall Joint
-
74205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
75232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
76581122200 Sprock Ass’Y, 19 Teeth. Includes 76 to 77Sprock Ass’Y, 19 Teeth. Includes 76 to 77
-
77414805000 Needle BearingNeedle Bearing
-
78570048600 Alignement RodAlignement Rod
-
79207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
80504152567 SupportSupport
-
81504152646 BushingBushing
-
82504152561 GripGrip
-
83250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
84504152615 HandleHandle
-
85504152595 BushingBushing
-
86205583544 Socket Head Screw M8 X 35, Scotch GripSocket Head Screw M8 X 35, Scotch Grip
-
87503154000 WasherWasher
