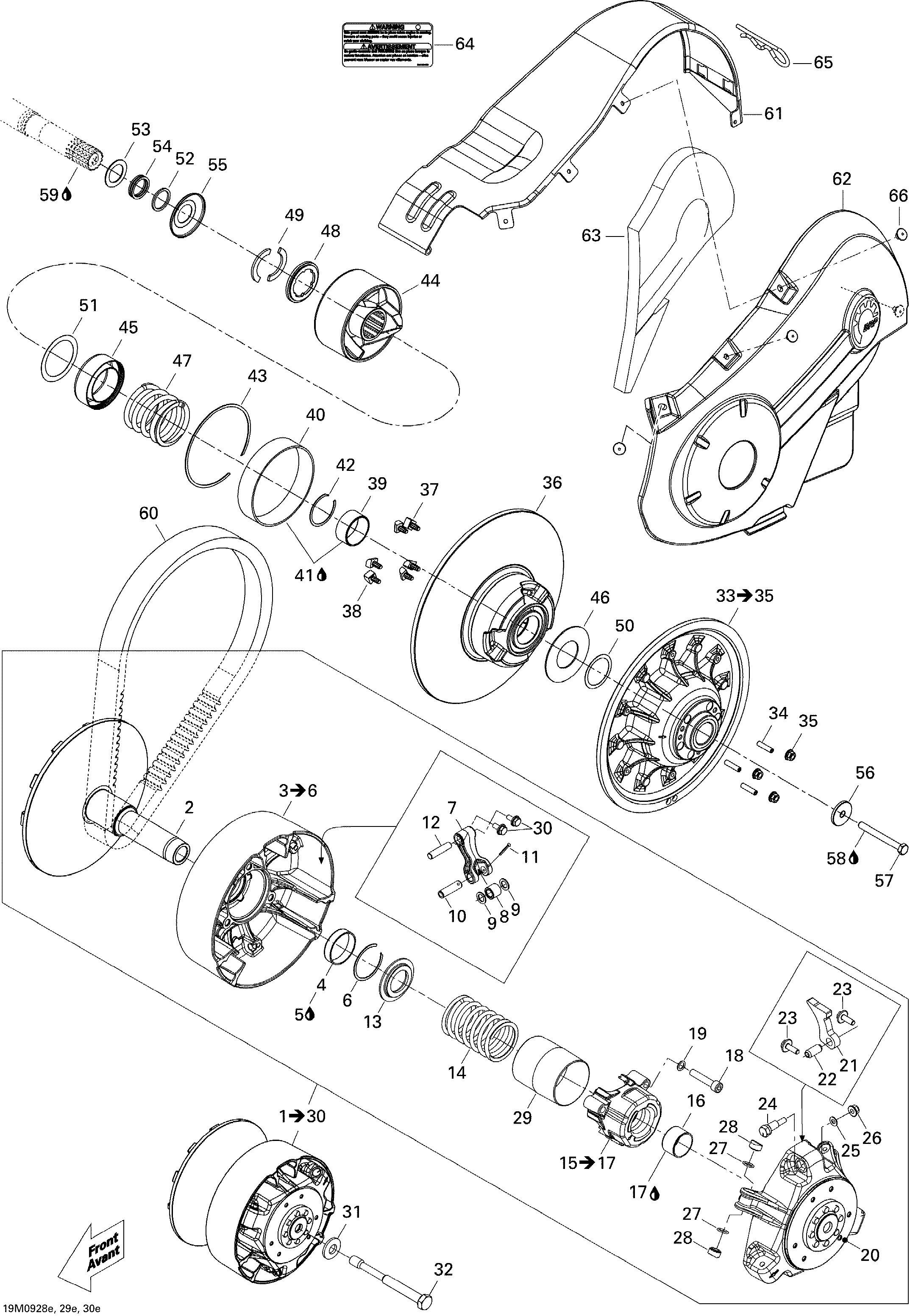

05- Pulley System Adventure для BRP Lynx Adventure V-800 - 2009
-
№АртикулНазвание
-
2417222969 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5293800118 Loctite 680, 50mlLoctite 680, 50ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'yLever Ass'y
-
8417222947 RollerRoller
-
9417004302 Stopper WasherStopper Washer
-
10417222594 PinPin
-
11732958001 Cotter PinCotter Pin
-
12417009202 Lever AxleLever Axle
-
13417222312 Spring SeatSpring Seat
-
14414817500 Clutch Spring, Red/yellowClutch Spring, Red/yellow
-
15417007500 Spring Cover Ass'y. Includes 15 to 17Spring Cover Ass'y. Includes 15 to 17
-
16417009204 BushingBushing
-
17413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
18205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
19250200009 Lock Washer 8 mmLock Washer 8 mm
-
20417223034 Governor Cup Ass'yGovernor Cup Ass'y
-
21417222940 Ramp 616Ramp 616
-
22250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
23250000059 Hex. Flanged Scew M6 X 18Hex. Flanged Scew M6 X 18
-
24417222955 Calibration ScrewCalibration Screw
-
25417005600 WasherWasher
-
26233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
27732401030 O-RingO-Ring
-
28417223021 Slider ShoeSlider Shoe
-
29417009205 GuardGuard
-
30210361296 Hex. Forming Screw M6 X 12Hex. Forming Screw M6 X 12
-
31250200006 Spring Washer 14 mmSpring Washer 14 mm
-
32417120000 Drive Pulley BoltDrive Pulley Bolt
-
33417127022 Fixed Flange Ass'yFixed Flange Ass'y
-
34206262599 Socket Set ScrewSocket Set Screw
-
35233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
36417126909 Sliding Flange Ass'y. Includes 36 to 43Sliding Flange Ass'y. Includes 36 to 43
-
37417126373 Rear Cam Slider Shoe, RedRear Cam Slider Shoe, Red
-
38417126374 Front Cam Slider Shoe, BlackFront Cam Slider Shoe, Black
-
39417126901 BushingBushing
-
40417126902 BushingBushing
-
41413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
42371911200 CirclipCirclip
-
43417126878 CirclipCirclip
-
44417126445 Cam Ass'yCam Ass'y
-
45417126381 GuardGuard
-
46504099600 Stopper WasherStopper Washer
-
47417126735 Release Spring, pinkRelease Spring, pink
-
48417126733 SpacerSpacer
-
49417126734 Half KeyHalf Key
-
50504112300 ShimShim
-
51417300252 SpacerSpacer
-
52417300265 SpacerSpacer
-
53417300252 SpacerSpacer
-
54504112000 ShimShim
-
55417300238 ProtectorProtector
-
56517302322 Strength WasherStrength Washer
-
57207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
58293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
59293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
60417300197 Drive BeltDrive Belt
-
61417300323 Belt GuardBelt Guard
-
62417300301 Side Protector Ass'y. Includes 62 to 63Side Protector Ass'y. Includes 62 to 63
-
63417300246 FoamFoam
-
64516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
65114045200 Hair PinHair Pin
-
66293150103 Pop RivetPop Rivet
