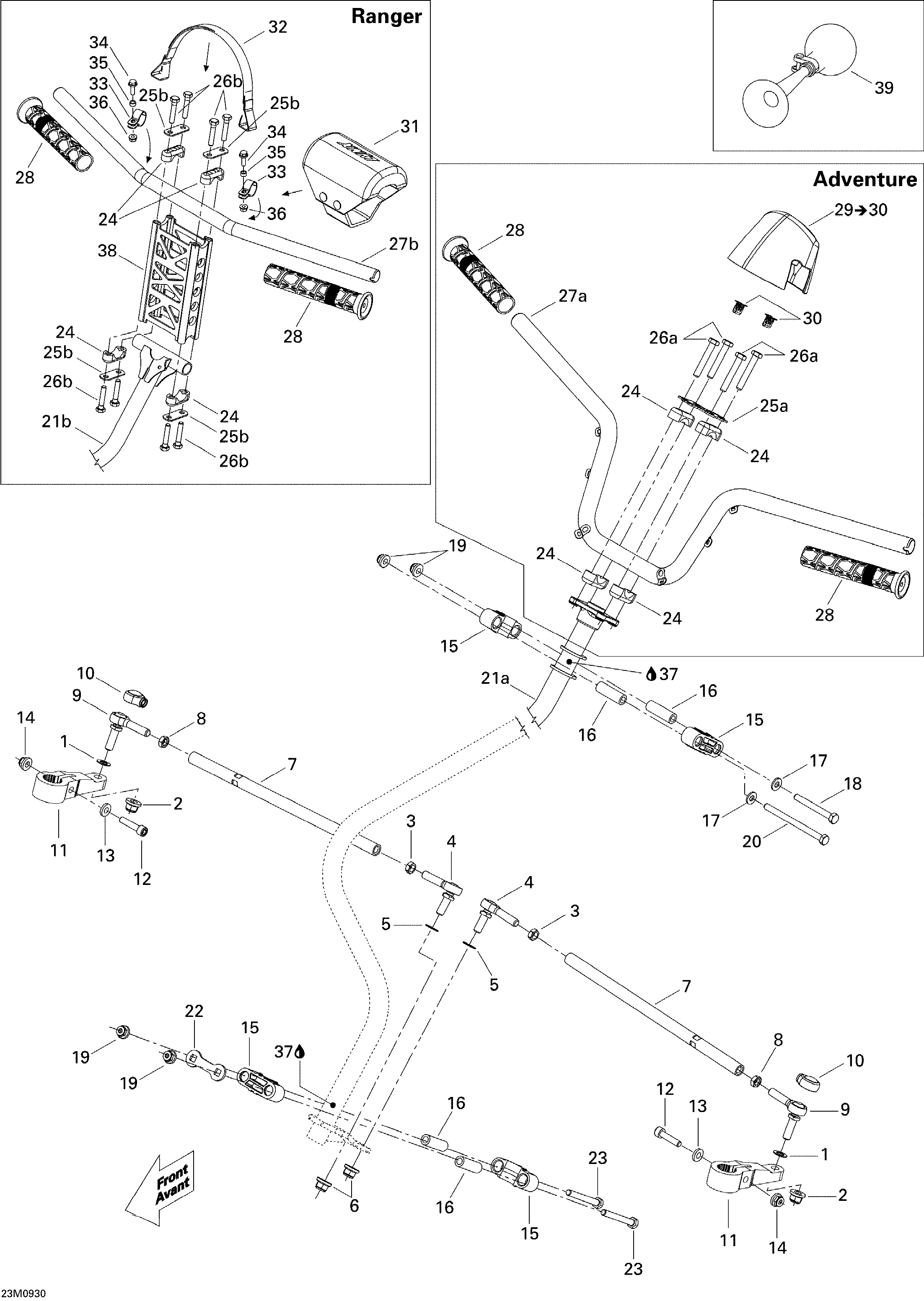

07- Steering для BRP Lynx Adventure V-800 - 2009
-
№АртикулНазвание
-
1503175800 WasherWasher
-
2250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
3250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
4506151845 LH Joint BallLH Joint Ball
-
5503175800 WasherWasher
-
6250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
7506151884 Tie RodTie Rod
-
8732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
9506152212 Ball JointBall Joint
-
10506151650 Protection CapProtection Cap
-
11506152030 Swivel ArmSwivel Arm
-
12207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
13234081410 Flat Washer 8 mmFlat Washer 8 mm
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15506150400 Housing HalfHousing Half
-
16506150500 Housing BushingHousing Bushing
-
17503189157 WasherWasher
-
18207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20230081044 Hex. Screw M8 X 110Hex. Screw M8 X 110
-
21a506152013 Steering Main Tube. AdventureSteering Main Tube. Adventure
-
22506150600 Stopper PlateStopper Plate
-
23207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
24506151622 Steering SupportSteering Support
-
25a506151547 Reinforcement. AdventureReinforcement. Adventure
-
26a250000082 Hex. Screw With Nylon M8 X 50. AdventureHex. Screw With Nylon M8 X 50. Adventure
-
27a506151986 Handle Bar. AdventureHandle Bar. Adventure
-
28506152424 Handle GripHandle Grip
-
29506152223 Cap. Adventure, Includes 29 to 30Cap. Adventure, Includes 29 to 30
-
30517302785 Clip. AdventureClip. Adventure
-
37219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
39549011291 HornHorn
