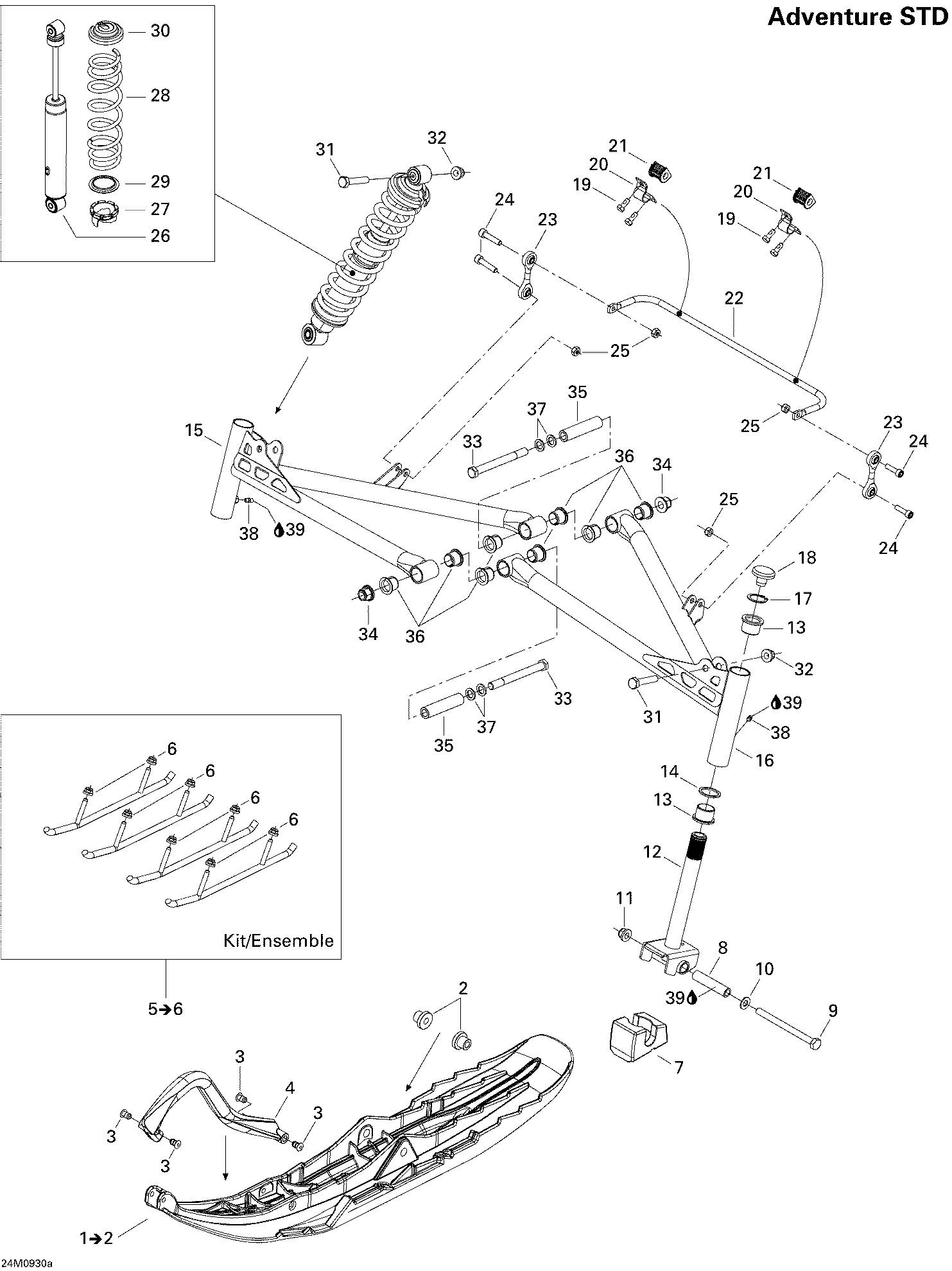

07- Front Suspension And Ski STD для BRP Lynx Adventure V-800 - 2009
-
№АртикулНазвание
-
1505072215 RH Pilot SKI 6.9, Black. Includes 1 to 2RH Pilot SKI 6.9, Black. Includes 1 to 2
-
1505072217 LH Pilot SKI 6.9, Black. Includes 1 to 2LH Pilot SKI 6.9, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505070963 Handle, BlackHandle, Black
-
5860200123 Carbide Runner Kit. Includes 5 to 6Carbide Runner Kit. Includes 5 to 6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7505072018 Ski StopperSki Stopper
-
8506133300 SpacerSpacer
-
9230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072001 Ski LegSki Leg
-
13505070003 CushionCushion
-
14505070004 WasherWasher
-
15505071739 RH Lower ArmRH Lower Arm
-
16505071740 LH Lower ArmLH Lower Arm
-
17371910400 CirclipCirclip
-
18572091300 CapCap
-
19250000281 Hexagonal Cap ScrewHexagonal Cap Screw
-
20506095800 ClampClamp
-
21505072225 Torsion BushingTorsion Bushing
-
22505072226 StabilisatorStabilisator
-
23505071479 Ball JointBall Joint
-
24205083544 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
25232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
26505072191 Front ShockFront Shock
-
27505070150 Adjustment CamAdjustment Cam
-
28505071849 SpringSpring
-
29503191872 Spring GuideSpring Guide
-
30706200881 Spring StopperSpring Stopper
-
31207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
32233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
33230022044 Hex. Screw M12 X 120Hex. Screw M12 X 120
-
34233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
35505071366 BushingBushing
-
36505072094 BushingBushing
-
37503189276 WasherWasher
-
38408200700 Grease FittingGrease Fitting
-
39219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
