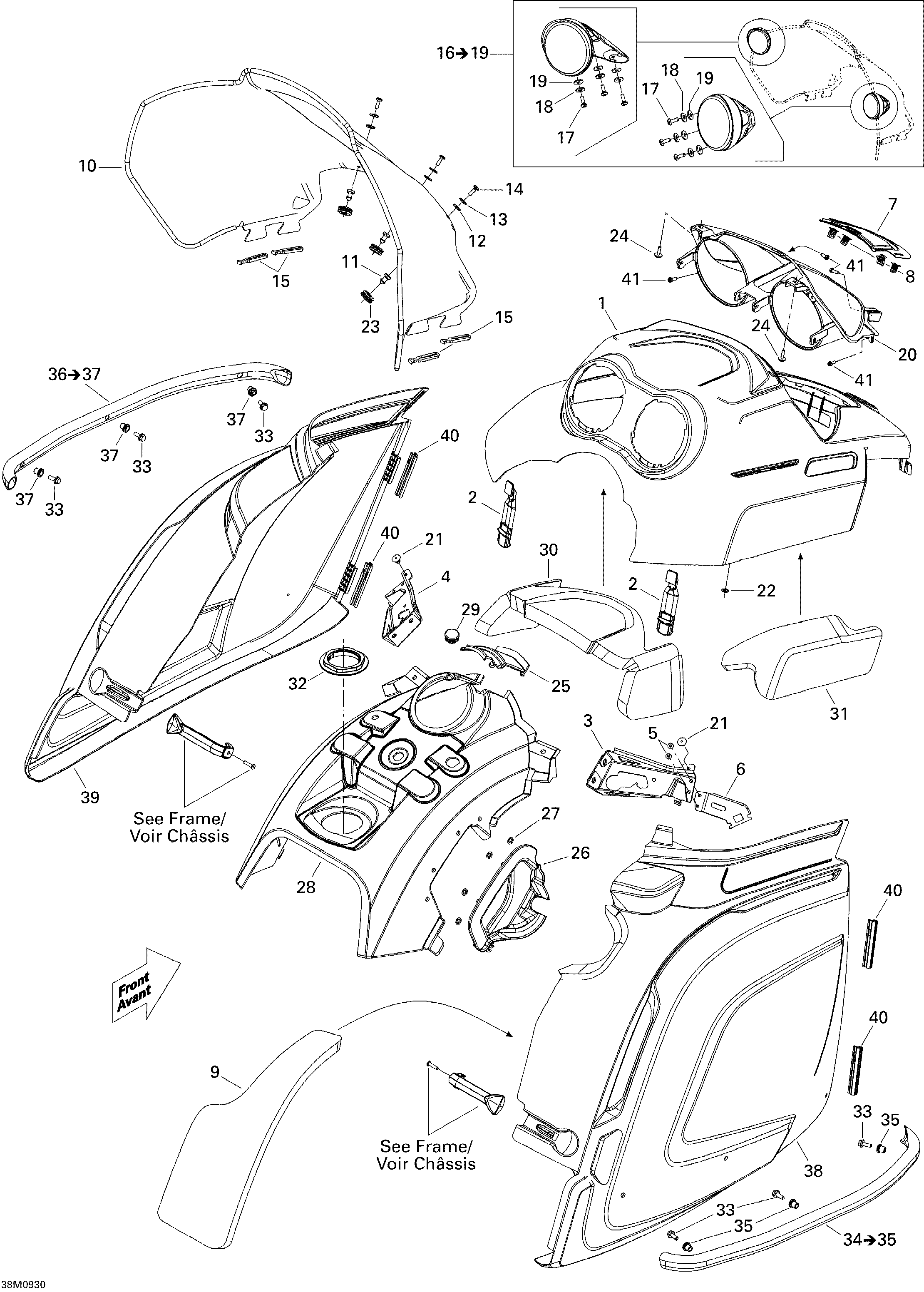

09- Hood для BRP Lynx Adventure V-800 - 2009
-
№АртикулНазвание
-
1517303525 HoodHood
-
2517303518 LatchLatch
-
3517303662 RH BracketRH Bracket
-
4517303663 LH BracketLH Bracket
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517303517 BracketBracket
-
7517303331 Center Hood GrillCenter Hood Grill
-
8517302785 ClipClip
-
9517303457 RH Panel Foam, RearRH Panel Foam, Rear
-
10517303440 Windshield, HighWindshield, High
-
11517303439 KnobKnob
-
12250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
13250200025 Washer M5Washer M5
-
14250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
15570023800 Windshield LatchWindshield Latch
-
16517303955 Mirror Kit. Includes 16 to 19Mirror Kit. Includes 16 to 19
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18250200025 Washer M5Washer M5
-
19250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
20517303692 MouldingMoulding
-
21293150103 Pop RivetPop Rivet
-
22732610072 Push NutPush Nut
-
23517302841 GrommetGrommet
-
24250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
25517303458 Console CapConsole Cap
-
26517303589 RH ConsoleRH Console
-
27732610072 Push NutPush Nut
-
28517303641 Center Console. AdventureCenter Console. Adventure
-
29706200474 CapCap
-
30517303664 Hood FoamHood Foam
-
31517303486 RH Hood FoamRH Hood Foam
-
32517302575 Console NutConsole Nut
-
33207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
34517303577 RH Side Bumper. Includes 34 to 35RH Side Bumper. Includes 34 to 35
-
35415107300 InsertInsert
-
36517303578 LH Side Bumper. Includes 36 to 37LH Side Bumper. Includes 36 to 37
-
37415107300 InsertInsert
-
38517303643 RH PanelRH Panel
-
39517303642 LH PanelLH Panel
-
40517302823 Hinge LockHinge Lock
-
41250000068 Hex. Tapping Screw #8 X 5/8''Hex. Tapping Screw #8 X 5/8''
