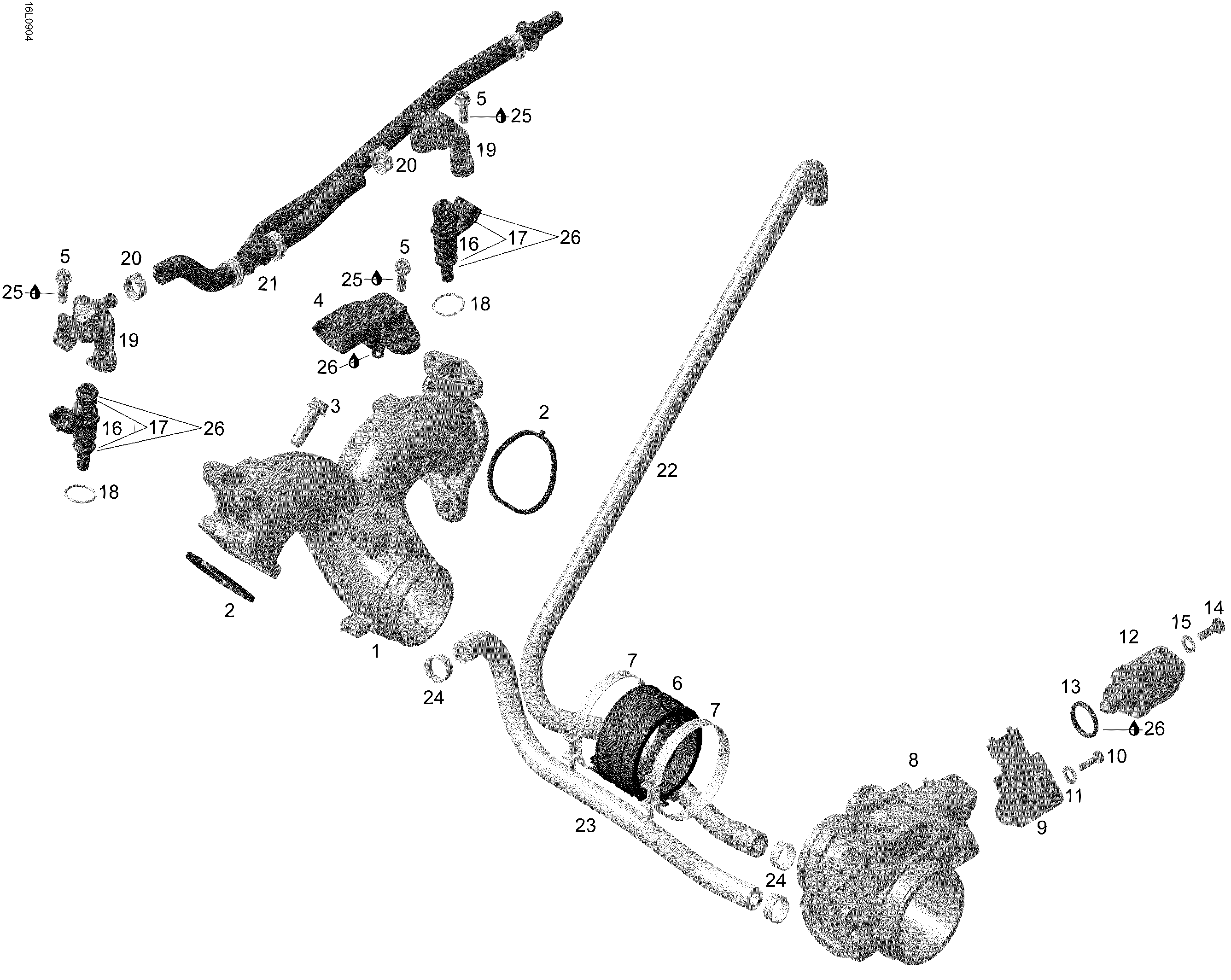

01- Air Inlet Manifold And Throttle Body для BRP Lynx YETI Pro V-800 - 2009
-
№АртикулНазвание
-
1420667342 Air inlet manifoldAir inlet manifold
-
2420630642 GasketGasket
-
3420440372 Screw M8 x 25Screw M8 x 25
-
4420874650 Temperature/pressure sensorTemperature/pressure sensor
-
5420641048 Screw M6 x 16Screw M6 x 16
-
6420267480 Intake socketIntake socket
-
7420251480 ClampClamp
-
8420296877 Throttle body ass'y. Includes 8 to 15Throttle body ass'y. Includes 8 to 15
-
12420963057 Idle bypass valveIdle bypass valve
-
13420631780 O-ringO-ring
-
14420440911 Screw M5 x 16Screw M5 x 16
-
15420845710 Snap ringSnap ring
-
16420874402 Injection valveInjection valve
-
17420631220 O-ringO-ring
-
18420631295 O-ringO-ring
-
19420874410 Fuel railFuel rail
-
20420851458 ClampClamp
-
21420874710 Fuel hose ass'yFuel hose ass'y
-
22420822359 Molded hoseMolded hose
-
23420460271 Molded hoseMolded hose
-
24293650125 ClampClamp
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26293550014 Grease, super lubeGrease, super lube
