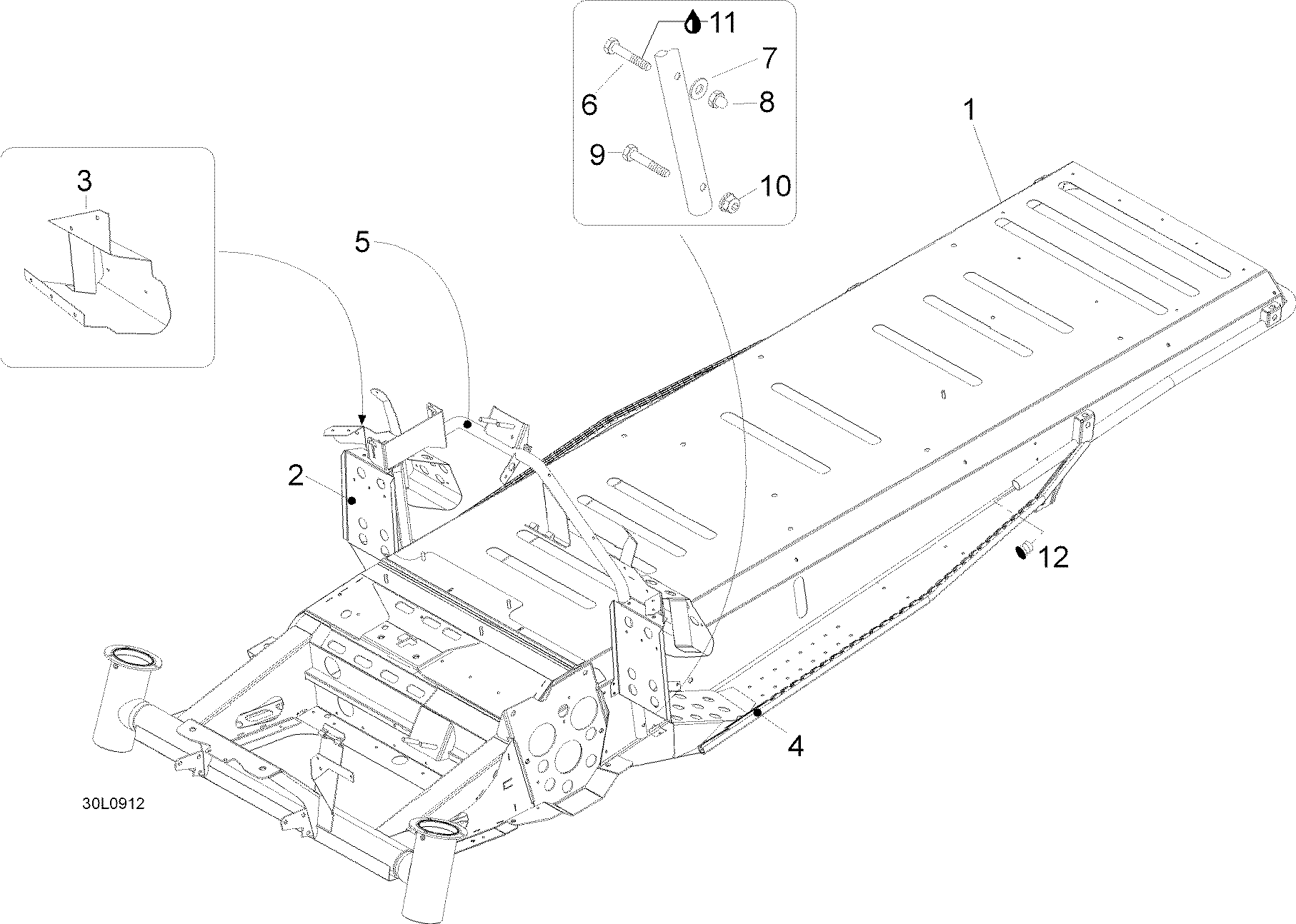

09- Frame для BRP Lynx YETI Pro V-800 - 2009
![](/wa-data/public/shop/sheme/bombardier/lynx/c560ee3b-8b47-4fc7-b438-f78c02a55afb.png)
-
№АртикулНазвание
-
1605152547 Frame ass'y. Includes 1 to 5Frame ass'y. Includes 1 to 5
-
2605153502 R.H. FootrestR.H. Footrest
-
2605153503 L.H. FootrestL.H. Footrest
-
3605253505 L.H. SupportL.H. Support
-
3605253504 R.H. SupportR.H. Support
-
4605253507 L.H. BracketL.H. Bracket
-
4605253506 R.H. BracketR.H. Bracket
-
5605153465 Steering supportSteering support
-
640003 Hex. screw M6 x 35Hex. screw M6 x 35
-
720003 Washer A6,4Washer A6,4
-
833051 Nut M6Nut M6
-
940002 Hex. screw M6 x 40Hex. screw M6 x 40
-
1033200 Elastic flanged nut M6Elastic flanged nut M6
-
11293800060 Loctite 243 10mlLoctite 243 10ml
-
1228210 PlugPlug
