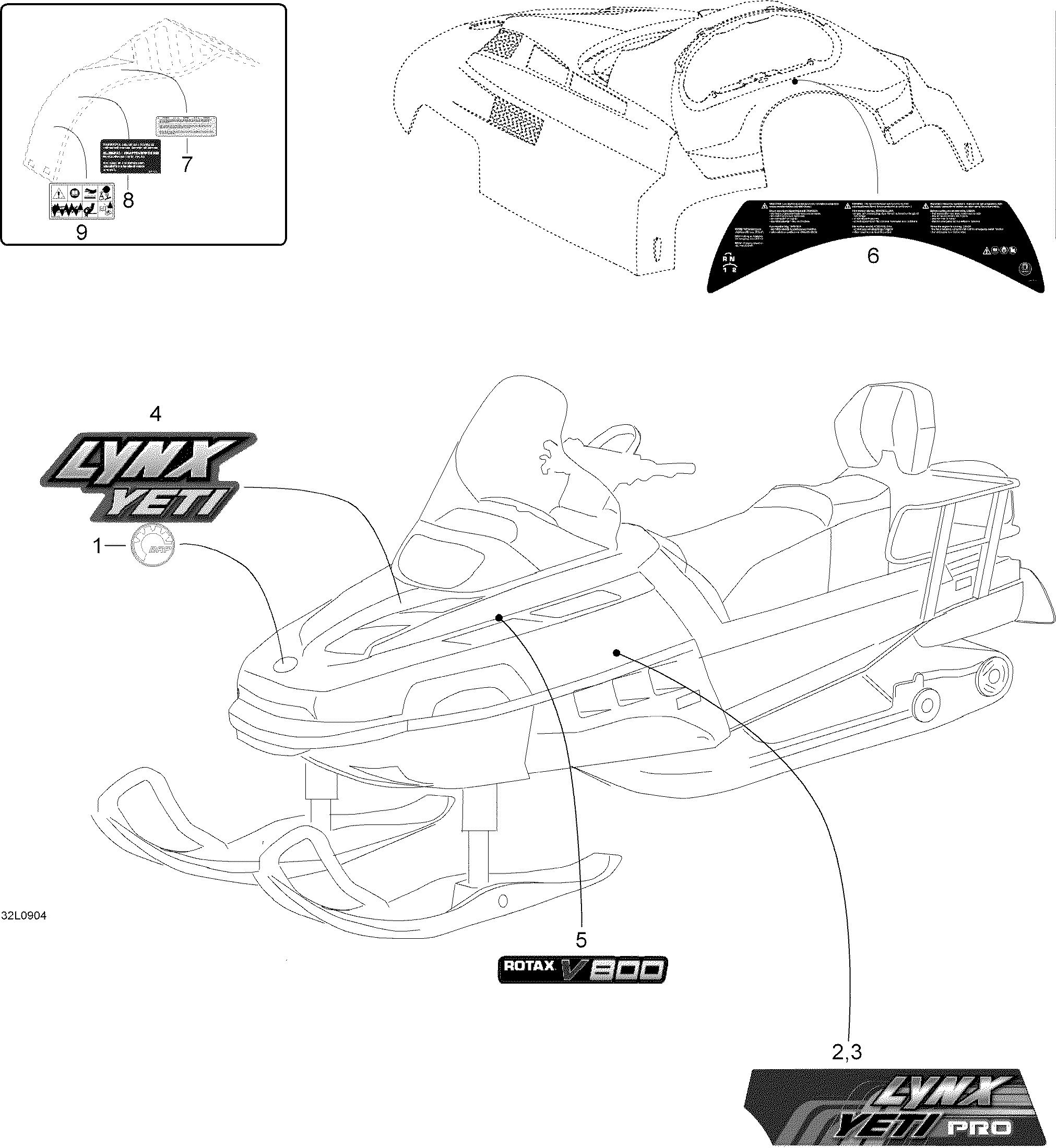

09- Decals для BRP Lynx YETI Pro V-800 - 2009
-
№АртикулНазвание
-
1219902469 BRP-logoBRP-logo
-
2605354322 R.H. Hood decalR.H. Hood decal
-
3605354323 L.H. Hood decalL.H. Hood decal
-
4605354331 Hood decalHood decal
-
5605353004 Decal, Rotax V-800Decal, Rotax V-800
-
6605351159 Instruction decalInstruction decal
-
75447014 Warning labelWarning label
-
85447012 Instruction decal, oilInstruction decal, oil
-
9605448801 Warning labelWarning label
