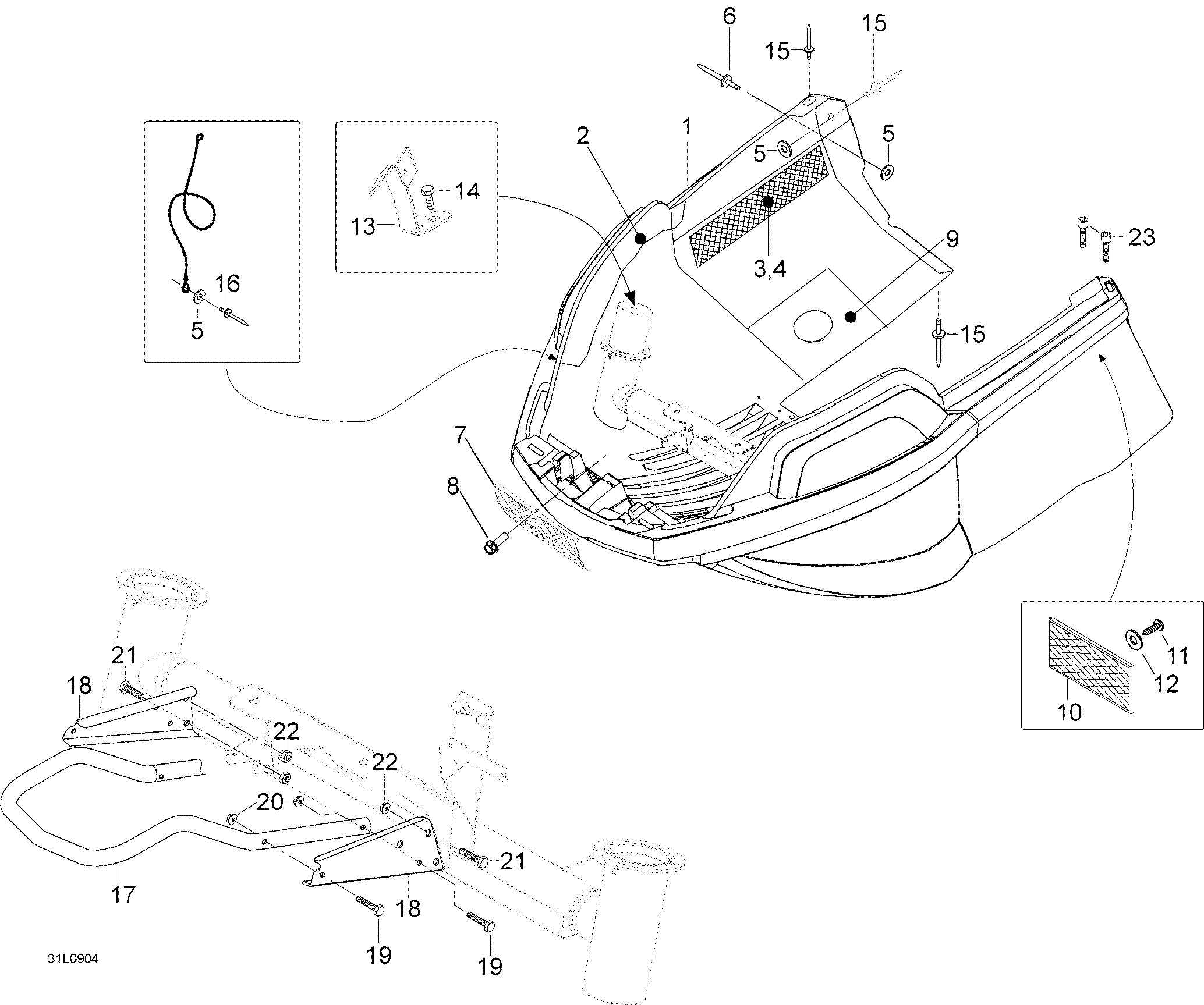

09- Bottom Pan для BRP Lynx YETI Pro V-800 - 2009
-
№АртикулНазвание
-
1605255248 Bottom pan ass'y. Includes 1 to 8Bottom pan ass'y. Includes 1 to 8
-
2619690001 Heat protector (1 x 1m)Heat protector (1 x 1m)
-
3605354968 Side Grill R.HSide Grill R.H
-
4605354969 Side Grill L.HSide Grill L.H
-
520008 Washer A5,3Washer A5,3
-
636009 RivetRivet
-
7605255513 Grill centerGrill center
-
840847 Wronic-screw 4,2 x 13Wronic-screw 4,2 x 13
-
9605354031 Heat protectorHeat protector
-
10414510200 Reflex, yellowReflex, yellow
-
1140063 Screw M5 x 12Screw M5 x 12
-
1220018 Serrated lock washer A5,3Serrated lock washer A5,3
-
13605354709 L.H. BracketL.H. Bracket
-
13605354710 R.H. BracketR.H. Bracket
-
1440401 Hex. screw M6 x 10Hex. screw M6 x 10
-
1536037 RivetRivet
-
1636087 RivetRivet
-
17605255112 BumperBumper
-
18605355113 Bumper Fastening Plate L.HBumper Fastening Plate L.H
-
18605355114 Bumper Fastening Plate R.HBumper Fastening Plate R.H
-
1940002 Hex. screw M6 x 40Hex. screw M6 x 40
-
2033200 Elastic flanged nut M6Elastic flanged nut M6
-
2140036 Hex. screw M8 x 20Hex. screw M8 x 20
-
2233201 Elastic flanged nut M8Elastic flanged nut M8
-
2340332 Allen Screw M6 x 16Allen Screw M6 x 16
