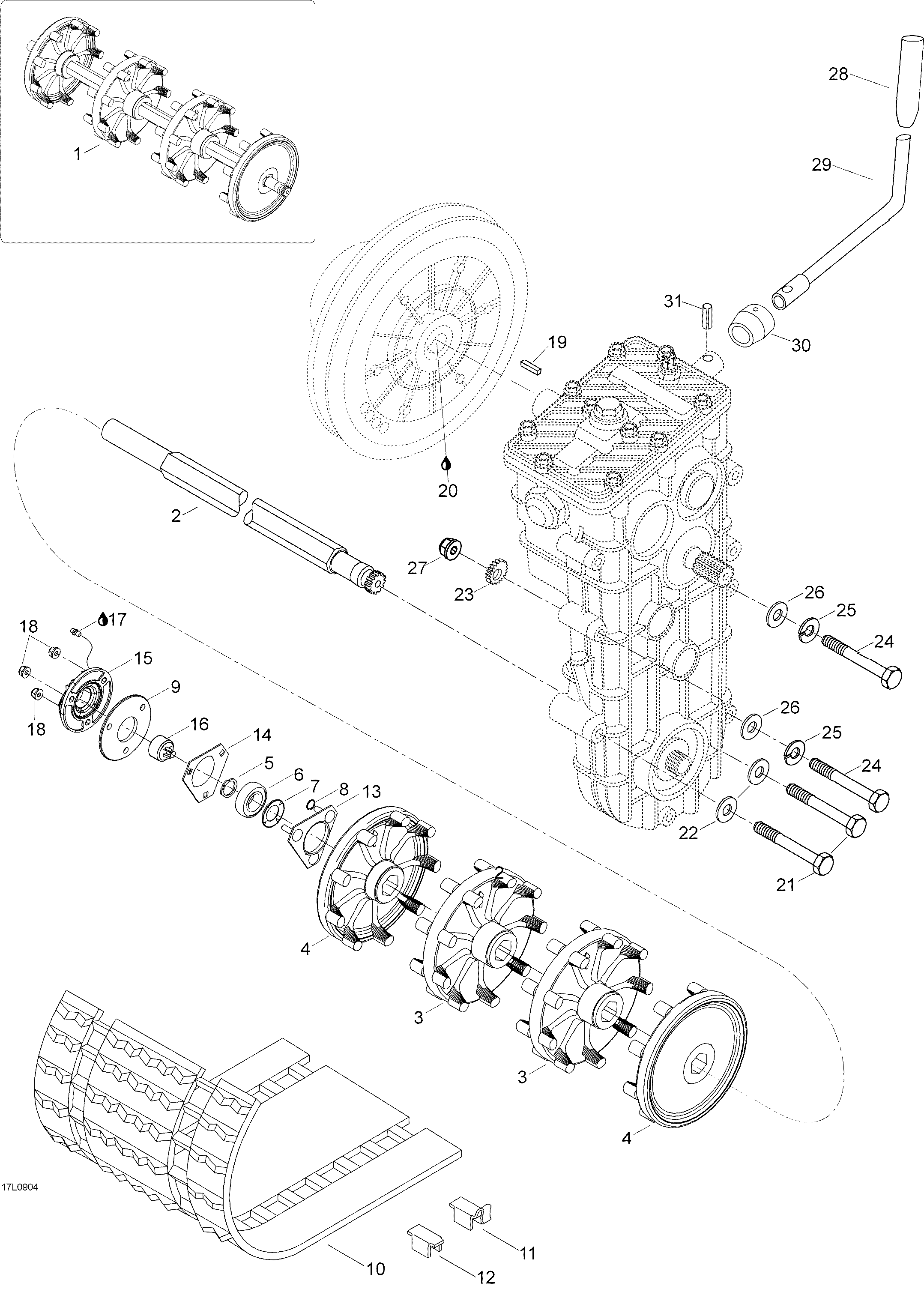

05- Drive System для BRP Lynx YETI Pro V-800 - 2009
-
№АртикулНазвание
-
1605253448 Drive axle ass'y. Includes 1 to 4Drive axle ass'y. Includes 1 to 4
-
2605249972 Drive axleDrive axle
-
3414931800 Sprocket 8-teethSprocket 8-teeth
-
4415067400 Sprocket 8-teethSprocket 8-teeth
-
5371910200 CirclipCirclip
-
6293350060 Ball bearingBall bearing
-
7501017400 Ball bearing protectorBall bearing protector
-
8414484400 O-ringO-ring
-
95446641 SpacerSpacer
-
1013081 Track (31.8). Includes 10 to 12Track (31.8). Includes 10 to 12
-
115318323 Cleat guideCleat guide
-
125318322 Slide guideSlide guide
-
13504151860 Bearing housingBearing housing
-
14501025000 FlangeFlange
-
15504152173 FlangeFlange
-
16504152040 Magnetic adaptorMagnetic adaptor
-
17293550033 Synthetic grease, 400gSynthetic grease, 400g
-
1833201 Elastic flanged nut M8Elastic flanged nut M8
-
19418763 KeyKey
-
20293800070 Loctite 767, 8ozLoctite 767, 8oz
-
2140089 Hex. screw M8 x 75Hex. screw M8 x 75
-
2220004 Washer A8.4Washer A8.4
-
23605454017 Rachel wheelRachel wheel
-
2440012 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
2520014 Lock washer M8Lock washer M8
-
2620010 Washer A8.4Washer A8.4
-
2733201 Elastic flanged nut M8Elastic flanged nut M8
-
2828247 ButtonButton
-
29605350153 Shift handleShift handle
-
305446699 ConeCone
-
3141008 Spring keySpring key
