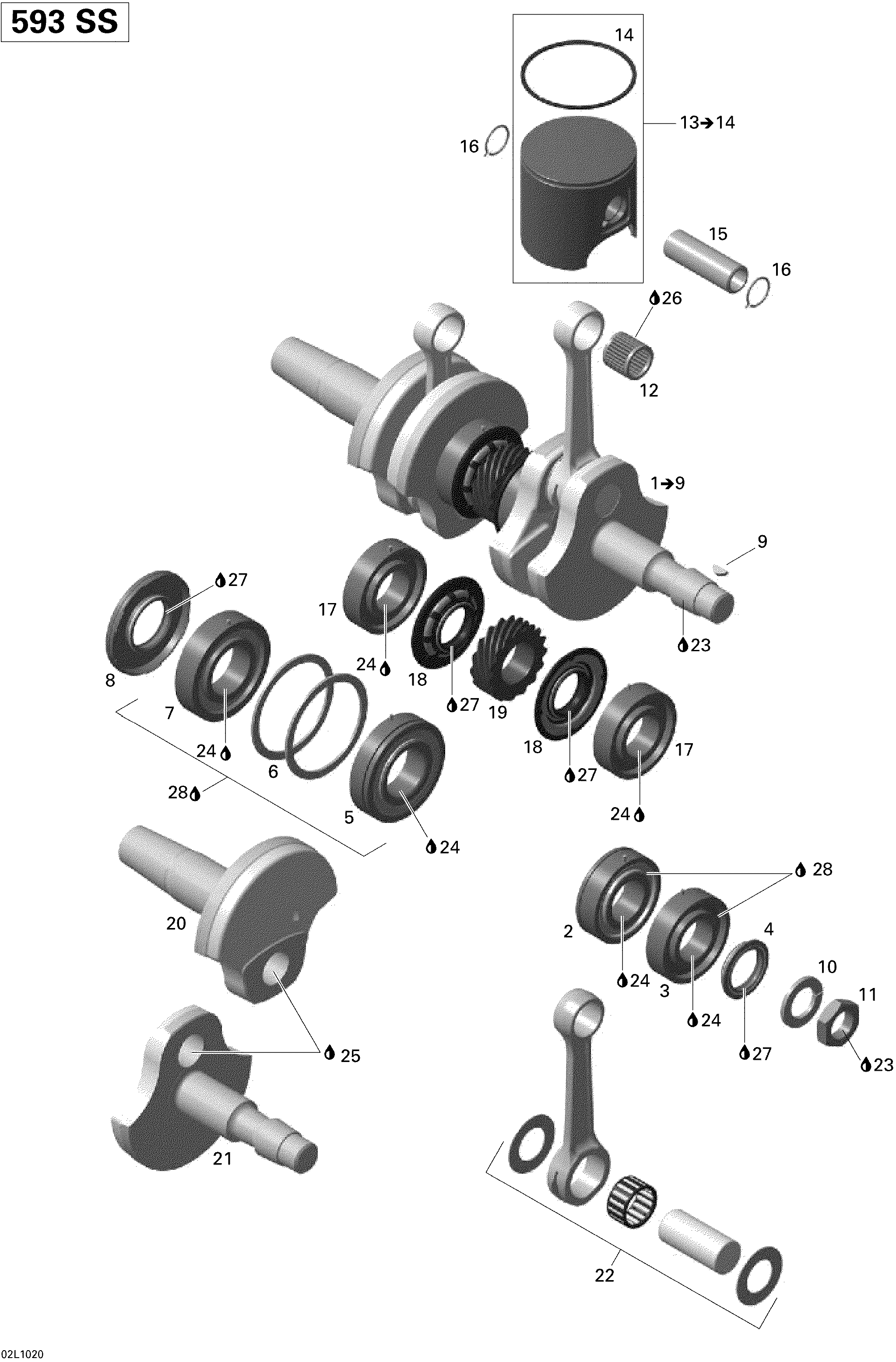

01- Crankshaft And Pistons для BRP Lynx Rave 600 - 2010

№

Артикул

Название
1

420890971 Crankshaft Ass'y. Includes 1 to 9

Crankshaft Ass'y. Includes 1 to 9

149 390 ₽
2

420832596 Ball Bearing

Ball Bearing

23 460 ₽
3

420832590 Ball Bearing 6206

Ball Bearing 6206

11 730 ₽
4

420931793 Oil Seal

Oil Seal

0 ₽
5

420832633 Ball Bearing

Ball Bearing

15 800 ₽
6

420927710 Retaining Disk

Retaining Disk

2 610 ₽
7

420832575 Ball Bearing

Ball Bearing

8 480 ₽
8

420831952 Oil Seal

Oil Seal

11 550 ₽
9

420246015 Woodruff Key

Woodruff Key

1 040 ₽
10

420945759 Lock Washer, 22 mm

Lock Washer, 22 mm

660 ₽
11

420842239 Hex. Nut, M22 X 1.5

Hex. Nut, M22 X 1.5

1 610 ₽
12

420832445 Needle Bearing

Needle Bearing

5 090 ₽
13

420889170 Piston Ass’y, 75.88 mm, Standard. Includes 13 to 14

Piston Ass’y, 75.88 mm, Standard. Includes 13 to 14

0 ₽
13

420889171 Piston Ass’y, 76.13 mm, Oversize. Includes 13 to 14

Piston Ass’y, 76.13 mm, Oversize. Includes 13 to 14

0 ₽
14

420815155 Semi-Trapez Ring, Standard

Semi-Trapez Ring, Standard

18 620 ₽
14

420815156 Semi-Trapez Ring, 1st

Semi-Trapez Ring, 1st

18 620 ₽
15

420916412 Piston Pin

Piston Pin

5 280 ₽
16

420845106 Piston Circlip

Piston Circlip

2 410 ₽
17

420832590 Ball Bearing 6206

Ball Bearing 6206

11 730 ₽
18

420931940 Oil Seal

Oil Seal

10 710 ₽
19

420834350 Central Gear, 15 Teeth

Central Gear, 15 Teeth

8 200 ₽
22

420890974 Rod Repair Kit, PTO Side

Rod Repair Kit, PTO Side

114 100 ₽
22

420888754 Rod Repair Kit, PTO Side

Rod Repair Kit, PTO Side

0 ₽
23

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
24

293800070 Loctite 767, Antiseize Lubricant, 8 oz

Loctite 767, Antiseize Lubricant, 8 oz

3 130 ₽
25

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
27

420899271 Petamo Grease, GHY133N, 400 g

Petamo Grease, GHY133N, 400 g

8 190 ₽
28

293550021 Isoflex Grease, TOPAS NB52, 50 g

Isoflex Grease, TOPAS NB52, 50 g

6 860 ₽
