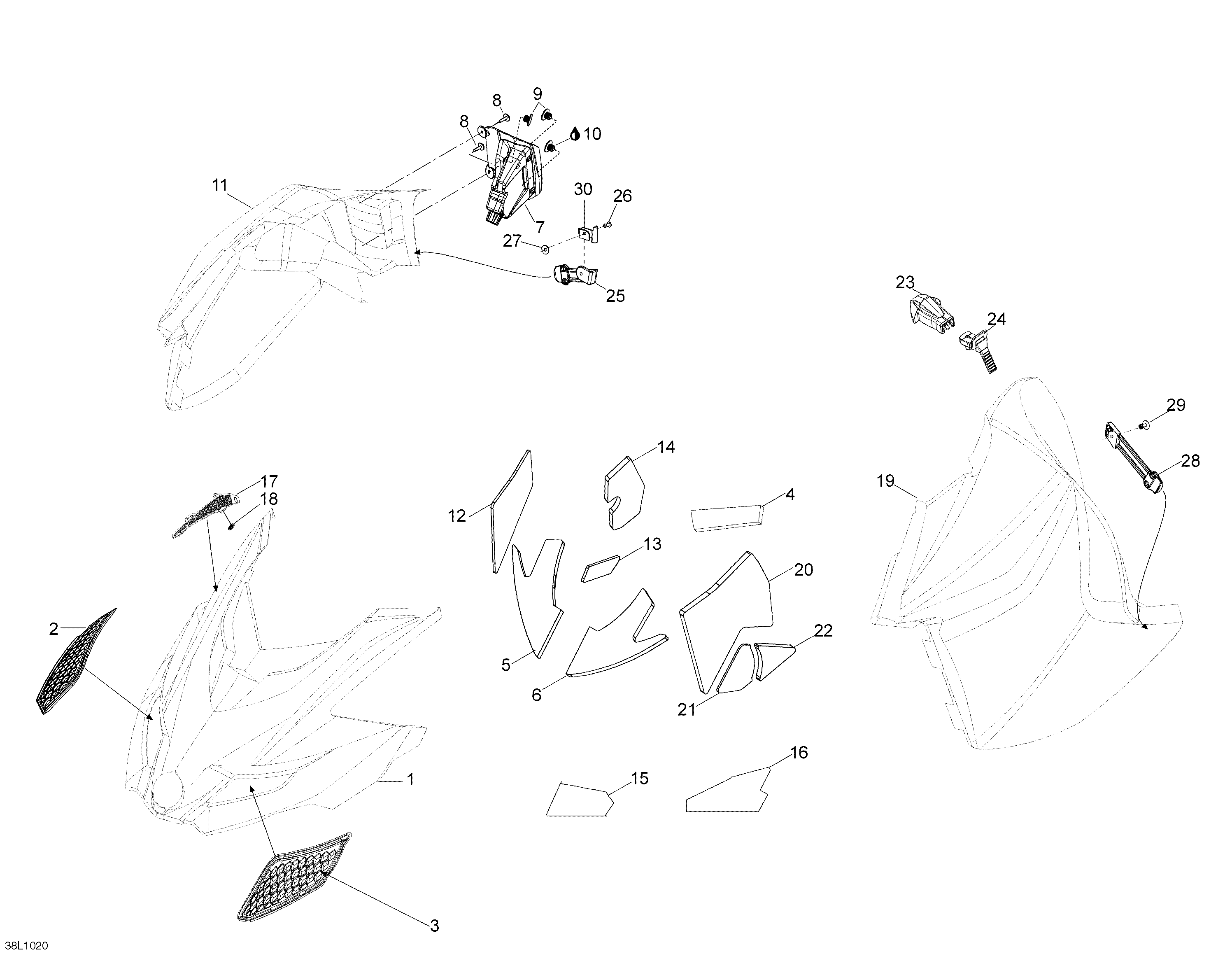

09- Hood для BRP Lynx Rave 600 - 2010
-
№АртикулНазвание
-
1517304553 Hood, Viper Red. NTC_RAVEHood, Viper Red. NTC_RAVE
-
2517304141 R.H. Hood grillR.H. Hood grill
-
3517304008 L.H. Hood grillL.H. Hood grill
-
4517304266 Foam. NTC_RAVEFoam. NTC_RAVE
-
5517304263 Foam. NTC_RAVEFoam. NTC_RAVE
-
6517304321 FoamFoam
-
7517304322 RH ConsoleRH Console
-
8250000113 Screw M4 X 16, Type K-40. NTC_RAVEScrew M4 X 16, Type K-40. NTC_RAVE
-
9275500241 Cap, BlackCap, Black
-
10413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
11517304548 Side Panel R.H.. NTC_RAVESide Panel R.H.. NTC_RAVE
-
12517304220 Foam. NTC_RAVEFoam. NTC_RAVE
-
13517304306 FoamFoam
-
14517304339 FoamFoam
-
15517304264 Aluminuim Foil. NTC_RAVEAluminuim Foil. NTC_RAVE
-
16517304265 Aluminuim Foil. NTC_RAVEAluminuim Foil. NTC_RAVE
-
17517304007 GrillGrill
-
18517302785 ClipClip
-
19517304546 Side Panel L.H. Lower. NTC_RAVESide Panel L.H. Lower. NTC_RAVE
-
20517304219 Foam. NTC_RAVEFoam. NTC_RAVE
-
21517304305 FoamFoam
-
22517304340 FoamFoam
-
23860200239 Black Latch KitBlack Latch Kit
-
24517303981 Panel LatchPanel Latch
-
25517303612 Panel LatchPanel Latch
-
26390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
27517124300 WasherWasher
-
28517303808 Panel LatchPanel Latch
-
29293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
30517304221 Latch Support. Add new line and illustrationLatch Support. Add new line and illustration
