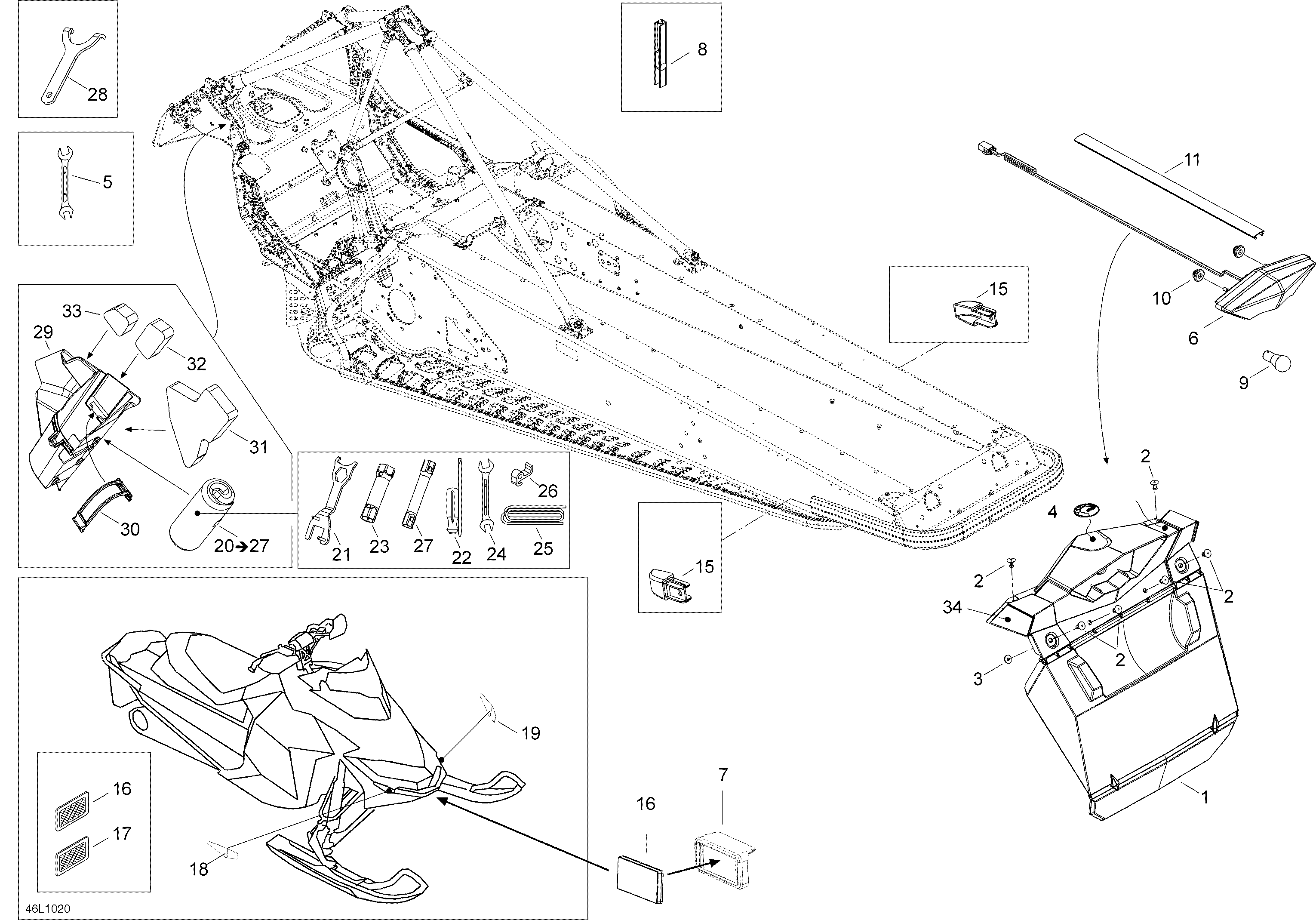

09- Utilities для BRP Lynx Rave 600 - 2010
-
№АртикулНазвание
-
1520000788 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
3517124300 WasherWasher
-
4219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
534017 Wrench 17-19Wrench 17-19
-
6520000587 Rear Light. Includes 6 to 9Rear Light. Includes 6 to 9
-
7515176746 Harness. Includes 7 to 8Harness. Includes 7 to 8
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9520000758 BulbBulb
-
10705001119 GrommetGrommet
-
11520000829 Radiator TrimRadiator Trim
-
15520000567 CapCap
-
1621118 Reflector (Bright)Reflector (Bright)
-
1721121 Reflector (Yellow)Reflector (Yellow)
-
18520000718 RH Front ReflectorRH Front Reflector
-
19520000719 LH Front ReflectorLH Front Reflector
-
20529000050 Tool Kit. Includes 20 to 27Tool Kit. Includes 20 to 27
-
21520000721 WrenchWrench
-
22529000004 Screw DriverScrew Driver
-
24529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
25412500200 Starter Rope, MeterStarter Rope, Meter
-
26529019400 Starter GripStarter Grip
-
28529035582 Adjustment WrenchAdjustment Wrench
-
29520000842 Tool Kit RackTool Kit Rack
-
30520000528 LatchLatch
-
31520000743 FoamFoam
-
32520000753 FoamFoam
-
33520000754 FoamFoam
-
34511000583 Light coverLight cover
