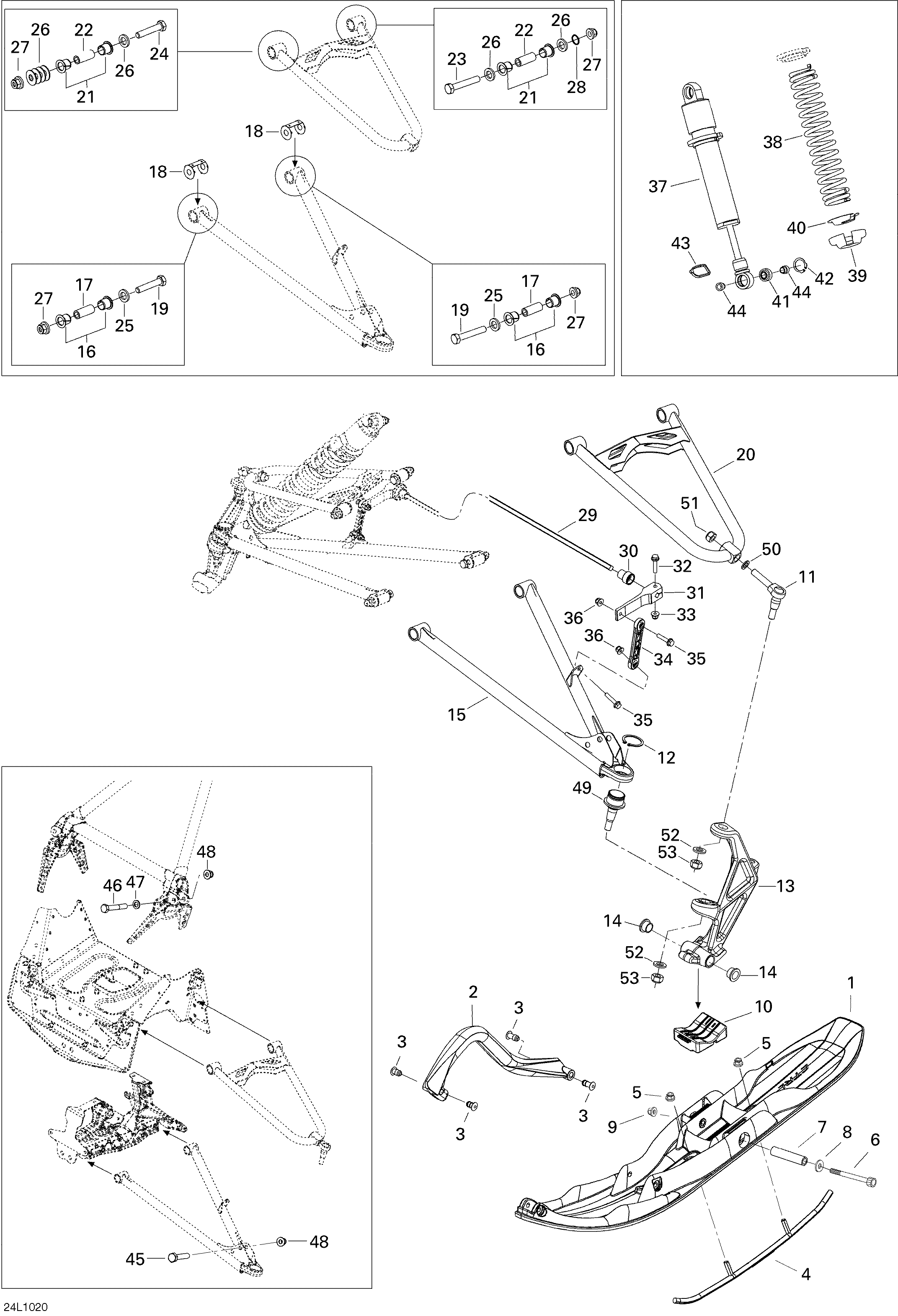

07- Front Suspension And Ski для BRP Lynx Rave 600 - 2010
-
№АртикулНазвание
-
1505072673 Plastic SkiPlastic Ski
-
2505071059 PlasTic HandlePlasTic Handle
-
3505071812 RetainerRetainer
-
4605349378 Runner ass'yRunner ass'y
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
6230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
7506133300 SpacerSpacer
-
8732900049 WasherWasher
-
933012 Elastic stop nut M10Elastic stop nut M10
-
10505072561 Rubber DamperRubber Damper
-
11505072257 Upper Ball JointUpper Ball Joint
-
12293370035 CirclipCirclip
-
13505072717 LH Ski LegLH Ski Leg
-
13505072718 RH Ski LegRH Ski Leg
-
14505072690 Leg CushionLeg Cushion
-
15505072367 RH Lower ArmRH Lower Arm
-
15505072366 LH Lower ArmLH Lower Arm
-
16503191766 CushionCushion
-
17505072401 Aluminum BushingAluminum Bushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072455 Upper ArmUpper Arm
-
21503191555 Swivel BushingSwivel Bushing
-
22505072143 BushingBushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
28505072448 O-RingO-Ring
-
29505072444 StabilisatorStabilisator
-
30505072445 BushingBushing
-
31505072446 Stabilisator LeverStabilisator Lever
-
32207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37505072646 HPG Front ShockHPG Front Shock
-
38505072879 Spring 300mm-18N/MMSpring 300mm-18N/MM
-
39505072635 Spring StopperSpring Stopper
-
40505072637 CapCap
-
41414562900 Radial Ball-JointRadial Ball-Joint
-
42371910600 Interior CirclipInterior Circlip
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44506120200 BushingBushing
-
45207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
46207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49505072682 Lower Ball JointLower Ball Joint
-
50503189276 WasherWasher
-
51250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
52234021410 Flat Washer 12 mmFlat Washer 12 mm
-
53250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
