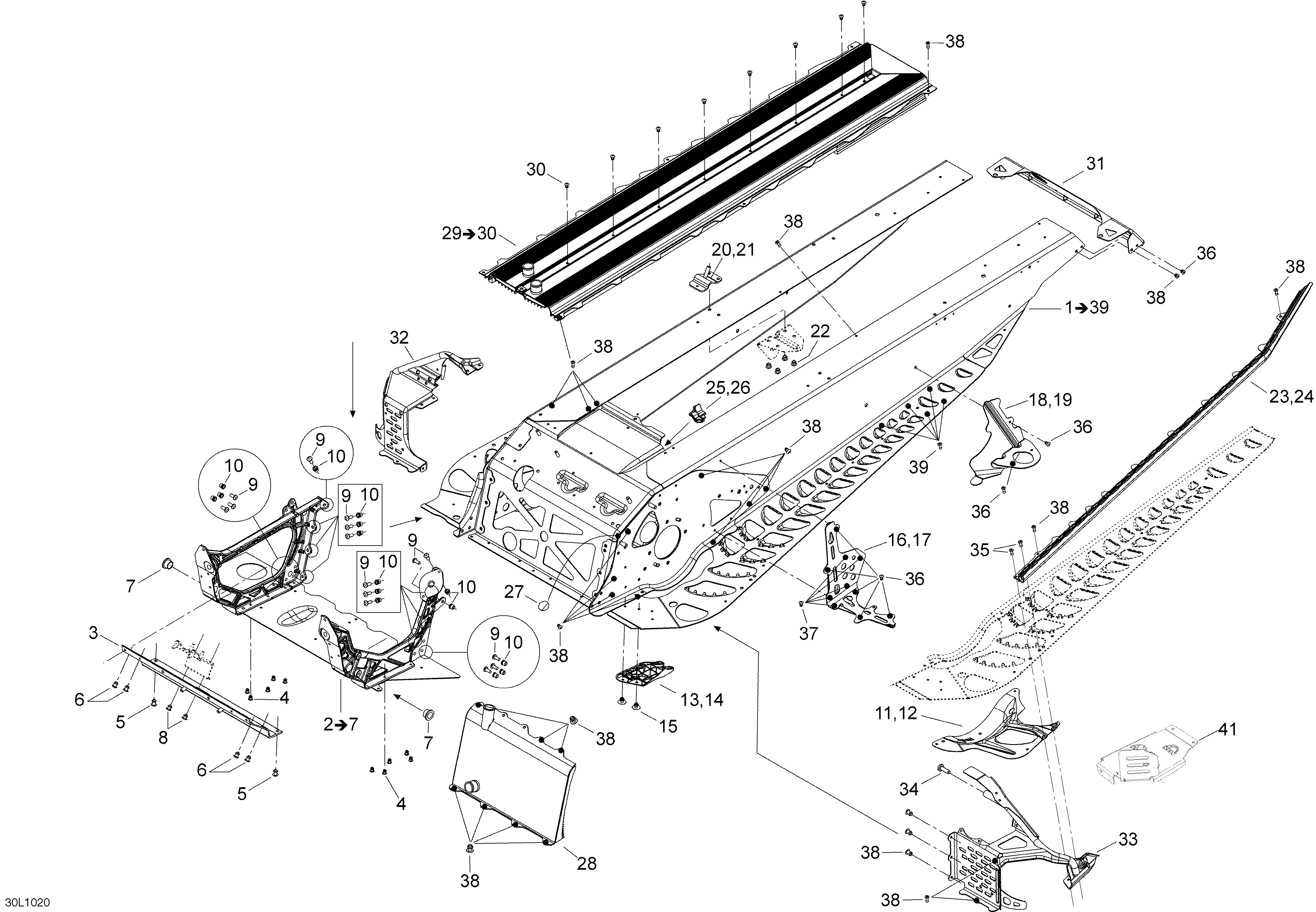

09- Frame для BRP Lynx Rave 600 - 2010
-
№АртикулНазвание
-
1518326365 Frame assy. Includes 1 to 39Frame assy. Includes 1 to 39
-
2518326077 E ModuleE Module
-
3518326198 Front MemberFront Member
-
4293150144 Stavex RivetStavex Rivet
-
5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505070954 CushionCushion
-
8293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11518324874 RH ReinforcementRH Reinforcement
-
12518324875 LH ReinforcementLH Reinforcement
-
13518325782 RH DeflectorRH Deflector
-
14518325783 LH DeflectorLH Deflector
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18518326493 RH Rear SupportRH Rear Support
-
19518326494 LH Rear SupportLH Rear Support
-
20518326421 RH Rear Base. Modify P/N textRH Rear Base. Modify P/N text
-
21518326443 LH Rear Base. Modify P/N textLH Rear Base. Modify P/N text
-
22293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
23518325693 LH RollerLH Roller
-
24518325694 RH RollerRH Roller
-
25518325653 RH SealRH Seal
-
26518325654 LH SealLH Seal
-
27518325560 Adhesive PatchAdhesive Patch
-
28518326485 Front RadiatorFront Radiator
-
29518325666 Rear Radiator Ass'y. Includes 29 to 30Rear Radiator Ass'y. Includes 29 to 30
-
30390909100 Avex RivetAvex Rivet
-
31518325421 Rear CapRear Cap
-
32518326216 RH StirupRH Stirup
-
33518326239 LH StirupLH Stirup
-
34250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
35390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36390909200 Avex RivetAvex Rivet
-
37390909100 Avex RivetAvex Rivet
-
38293150144 Stavex RivetStavex Rivet
-
39293150145 RivetRivet
-
40518325796 Link Cross. Modify P/N textLink Cross. Modify P/N text
-
41518325826 Footrest L.H.. Modify P/N textFootrest L.H.. Modify P/N text
-
41518325827 Footrest R.H.. Modify P/N textFootrest R.H.. Modify P/N text
