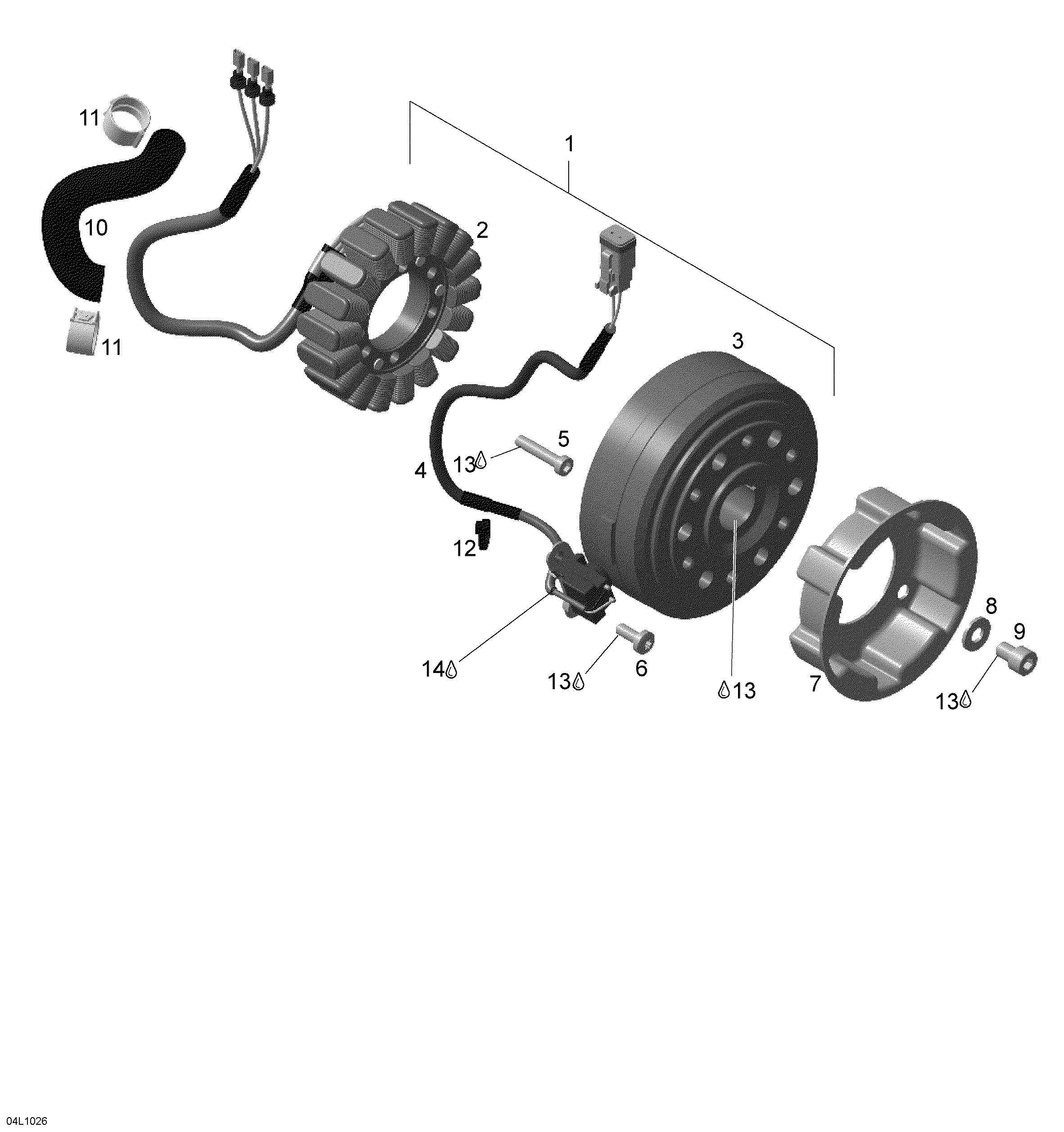

03- Magneto для BRP Lynx Rave RS 600 - 2010
-
№АртикулНазвание
-
2420893060 Stator PlateStator Plate
-
3420665725 FlywheelFlywheel
-
4420866370 Pick-UpPick-Up
-
5420840886 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10420460871 TubeTube
-
11420960896 Conduit ClipConduit Clip
-
12293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
